ORDER
CODE |
VALVE TYPE | NUMBER
OF SECTIONS |
NOMINAL FLOW
(lpm) |
MAX OPERATING
PRESSURES (bar) |
A
(mm) |
B
(mm) |
C
(mm) |
D
(mm) |
E
(mm) |
F
(mm) |
PORT SIZES
(bsp) |
|||||
P | T | A – B | P | T | A – B | N | ||||||||||
P801A1G |
P80 |
1 |
80 |
250 |
50 |
300 |
65 | 79 | 107 | 65 |
40 |
193 |
1/2” |
3/4” |
1/2” |
3/4” |
P802A1G | 2 |
80 |
94 |
160 | 103 | 225 | ||||||||||
P803A1G | 3 | 198 | 141 | 225 | ||||||||||||
P804A1G | 4 | 236 | 179 | 193 | ||||||||||||
P805A1G | 5 | 274 | 217 | 193 | ||||||||||||
P806A1G | 6 | 312 | 255 | 193 |
Material: Cast iron (body) – EN-GJL300
Features 6 lever control banks
Nominal flow rate: 80 liters per minute (LPM)
Maximum pressure: P = 250 bar, T = 50 bar, A / B = 300 bar
Solenoid stroke: ±7 mm
Operating temperature range: -40°C to +60°C
Solenoid leakage at 120 bar: 18 cm³ per minute
Relief valve setting: 180 bar (with a maximum of 250 bar)
Mounting: M8 bolt size (x3)
Optional PX-80 heavy-duty version available upon request (please inquire for details)
These control valves feature a compact integrated structure, ensuring easy installation and minimizing the risk of leaks. With a leakage rate of just 6 cm3/min at 100 bar (from A, B to T), you can rely on their efficiency and durability.
The P80 series valves are designed to withstand fluid temperatures ranging from -10°C to +80°C, making them suitable for operation in fluctuating environmental conditions. This ensures consistent performance even in diverse climates.

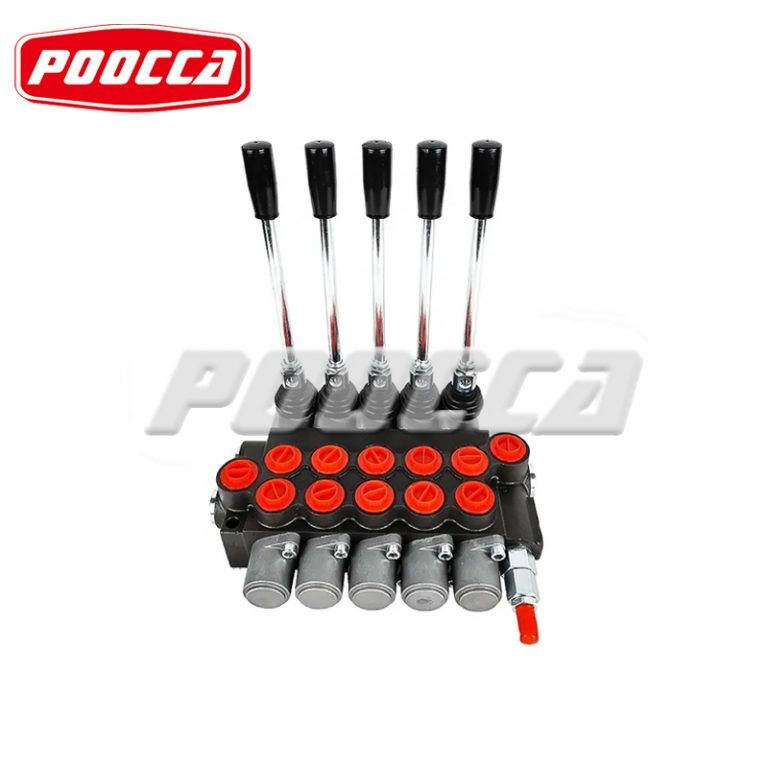

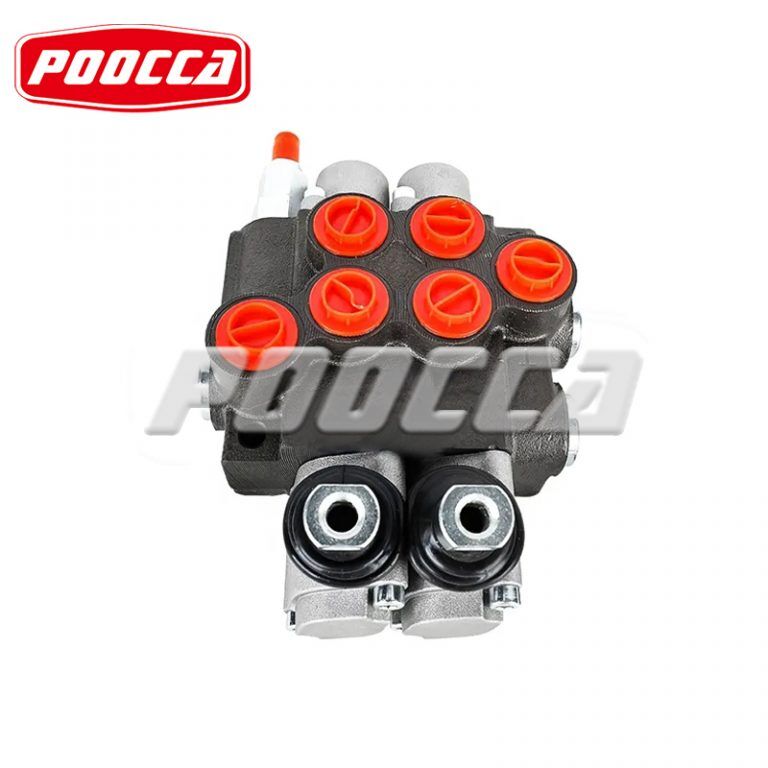

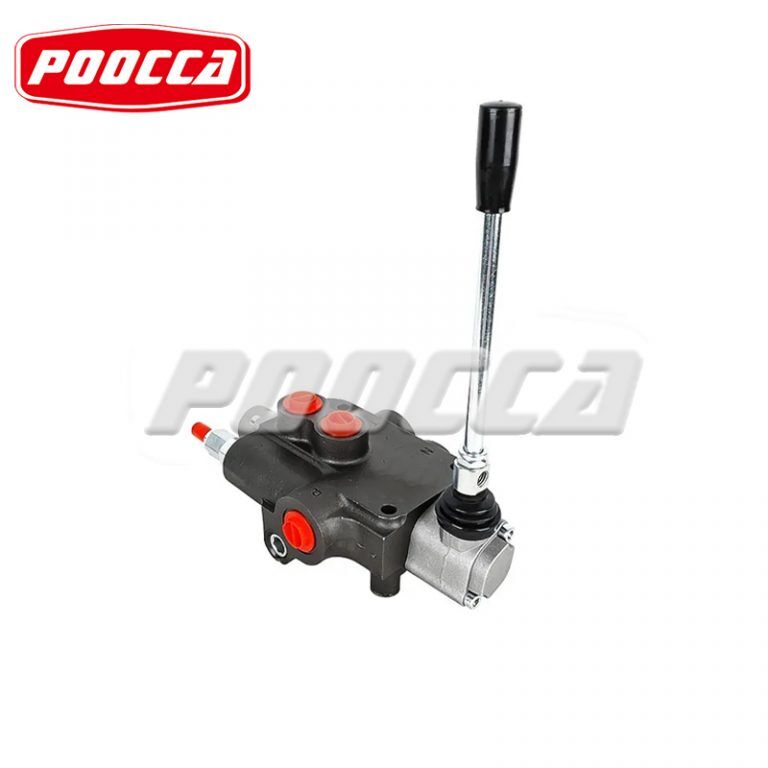

Whether in mobile machinery or industrial equipment, the P80 series integrated control valves offer precise flow and pressure control. With options ranging from 1 to 6 valve spools, these valves cater to a variety of hydraulic system needs, seamlessly integrating into your hydraulic setup.
Experience unparalleled hydraulic control with the advanced P80 series integrated control valves. Trust POOCCA to provide high-quality solutions, enhancing performance and operational efficiency.
1.Q:How long has poocca been established?
A:POOCCA Hydraulic Manufacturer was established in 1997 and has 26 years of experience in the hydraulic industry.
2.Q:What are POOCCA’s main products?
A:We have as many as 1,600 product categories, mainly engaged in gear pumps, plunger pumps, vane pumps, motors, hydraulic accessories, hydraulic valves, etc.
3.Q:What is your product order lead time?
A:Our product order delivery times may vary based on the specific product and its availability.
Regular products take 5-7 days, special products depend on customization time and quantity.
4.Q:What is the warranty policy for your products?
A:12 months
5.Q:Where are your production facilities located? What is your production capacity?
A:Our factories are located in Guangdong, Jiangsu and Zhejiang. The annual export volume is as high as 16 million US dollars.
6.Q:What payment methods do you accept?
A:We accept a variety of payment methods including credit card, bank transfer, PayPal, and more.
For large orders, 30% can be paid in advance and the remaining 70% is paid before shipment.
ORDER
CODE |
VALVE TYPE | NUMBER
OF SECTIONS |
NOMINAL FLOW
(lpm) |
MAX OPERATING
PRESSURES (bar) |
A
(mm) |
B
(mm) |
C
(mm) |
D
(mm) |
E
(mm) |
F
(mm) |
PORT SIZES
(bsp) |
|||||
P | T | A – B | P | T | A – B | N | ||||||||||
P801A1G |
P80 |
1 |
80 |
250 |
50 |
300 |
65 | 79 | 107 | 65 |
40 |
193 |
1/2” |
3/4” |
1/2” |
3/4” |
P802A1G | 2 |
80 |
94 |
160 | 103 | 225 | ||||||||||
P803A1G | 3 | 198 | 141 | 225 | ||||||||||||
P804A1G | 4 | 236 | 179 | 193 | ||||||||||||
P805A1G | 5 | 274 | 217 | 193 | ||||||||||||
P806A1G | 6 | 312 | 255 | 193 |
Material: Cast iron (body) – EN-GJL300
Features 6 lever control banks
Nominal flow rate: 80 liters per minute (LPM)
Maximum pressure: P = 250 bar, T = 50 bar, A / B = 300 bar
Solenoid stroke: ±7 mm
Operating temperature range: -40°C to +60°C
Solenoid leakage at 120 bar: 18 cm³ per minute
Relief valve setting: 180 bar (with a maximum of 250 bar)
Mounting: M8 bolt size (x3)
Optional PX-80 heavy-duty version available upon request (please inquire for details)
These control valves feature a compact integrated structure, ensuring easy installation and minimizing the risk of leaks. With a leakage rate of just 6 cm3/min at 100 bar (from A, B to T), you can rely on their efficiency and durability.
The P80 series valves are designed to withstand fluid temperatures ranging from -10°C to +80°C, making them suitable for operation in fluctuating environmental conditions. This ensures consistent performance even in diverse climates.
Whether in mobile machinery or industrial equipment, the P80 series integrated control valves offer precise flow and pressure control. With options ranging from 1 to 6 valve spools, these valves cater to a variety of hydraulic system needs, seamlessly integrating into your hydraulic setup.
Experience unparalleled hydraulic control with the advanced P80 series integrated control valves. Trust POOCCA to provide high-quality solutions, enhancing performance and operational efficiency.
1.Q:How long has poocca been established?
A:POOCCA Hydraulic Manufacturer was established in 1997 and has 26 years of experience in the hydraulic industry.
2.Q:What are POOCCA’s main products?
A:We have as many as 1,600 product categories, mainly engaged in gear pumps, plunger pumps, vane pumps, motors, hydraulic accessories, hydraulic valves, etc.
3.Q:What is your product order lead time?
A:Our product order delivery times may vary based on the specific product and its availability.
Regular products take 5-7 days, special products depend on customization time and quantity.
4.Q:What is the warranty policy for your products?
A:12 months
5.Q:Where are your production facilities located? What is your production capacity?
A:Our factories are located in Guangdong, Jiangsu and Zhejiang. The annual export volume is as high as 16 million US dollars.
6.Q:What payment methods do you accept?
A:We accept a variety of payment methods including credit card, bank transfer, PayPal, and more.
For large orders, 30% can be paid in advance and the remaining 70% is paid before shipment.
POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
