P40 hydraulic valve nominal flow: 40 liters/minute
maximum. Pressure: P: 315 bar, T: 50 bar, A-B: 300 bar
P40 valve core type: standard open core valve core (A valve core), different valve core options
Number of spools: 1 to 7
Leakage: 5 cm3/min at 100 bar (from A, B to T)
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral-based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral-based hydraulic fluid recommended, may vary in different climates)
Filter: 10 to NAS 1638

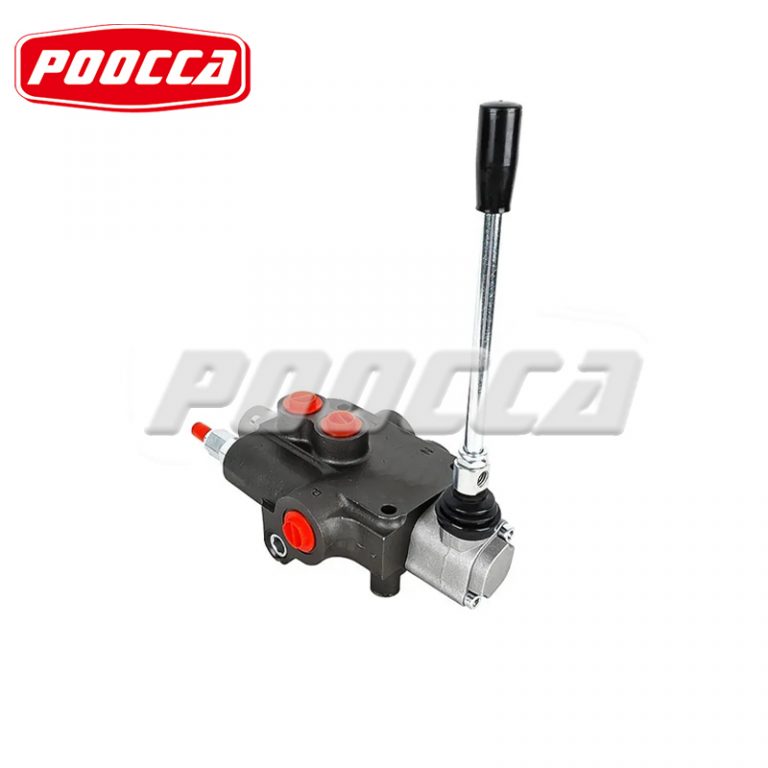

POOCCA Hydraulic Supplier P40 Electro-Hydraulic Directional Control Valve – A cost-effective and versatile solution for precise control within hydraulic systems. Known for its cost-effectiveness, compact design and stable performance, the P40 series is the best choice for a variety of applications.
P40 valves are circuit type and integrated into the hydraulic system to ensure efficient control and optimal performance. Its one-piece construction simplifies installation and maintenance, offering flexibility in 1-7 sections to meet specific system requirements.
The P40 valve stands out as an excellent value, offering an affordable price without compromising on quality or versatility. Whether you run a small business or a large manufacturing facility, you can rely on P40 valves to provide reliable support and increase productivity while minimizing costs.
Experience the reliability and performance of the P40 electro-hydraulic directional valve. With its compact design and stable operation, it is able to withstand harsh conditions and provide consistent performance and durability in a variety of applications.
| Nom.Pressure
(MPa) |
Max.Pressure(MPa) | Nom. Flow rate(1/min) | Max.Flow rate(L/min) | Back Pressure(MPa) | hydraulic oil | ||
| Tem.rang
(℃) |
 Visc.rang(mm2/S) | filtrating accuracy
(μm) |
|||||
| 20 | 31.5 | 40/80/120 | 40/80/120 | ≤1 | -20~+80 | 10~400 | ≤10 |

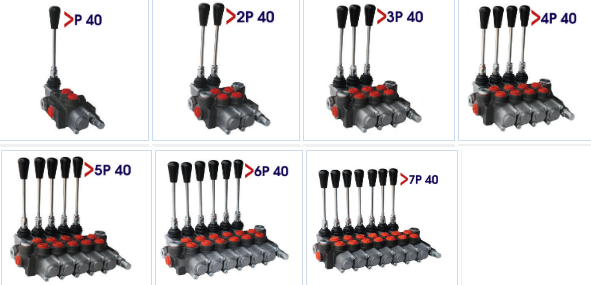

1P40 2P40 3P40 4P40 5P40 6P40 7P40Â Monoblock Hydraulic Control Valves
POOCCA Hydraulic Supplier P40 Electro-Hydraulic Directional Control Valve – A cost-effective and versatile solution for precise control within hydraulic systems. Known for its cost-effectiveness, compact design and stable performance, the P40 series is the best choice for a variety of applications.
P40 valves are circuit type and integrated into the hydraulic system to ensure efficient control and optimal performance. Its one-piece construction simplifies installation and maintenance, offering flexibility in 1-7 sections to meet specific system requirements.
The P40 valve stands out as an excellent value, offering an affordable price without compromising on quality or versatility. Whether you run a small business or a large manufacturing facility, you can rely on P40 valves to provide reliable support and increase productivity while minimizing costs.
Experience the reliability and performance of the P40 electro-hydraulic directional valve. With its compact design and stable operation, it is able to withstand harsh conditions and provide consistent performance and durability in a variety of applications.
| Nom.Pressure
(MPa) |
Max.Pressure(MPa) | Nom. Flow rate(1/min) | Max.Flow rate(L/min) | Back Pressure(MPa) | hydraulic oil | ||
| Tem.rang
(℃) |
 Visc.rang(mm2/S) | filtrating accuracy
(μm) |
|||||
| 20 | 31.5 | 40/80/120 | 40/80/120 | ≤1 | -20~+80 | 10~400 | ≤10 |
1P40 2P40 3P40 4P40 5P40 6P40 7P40Â Monoblock Hydraulic Control Valves
POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
