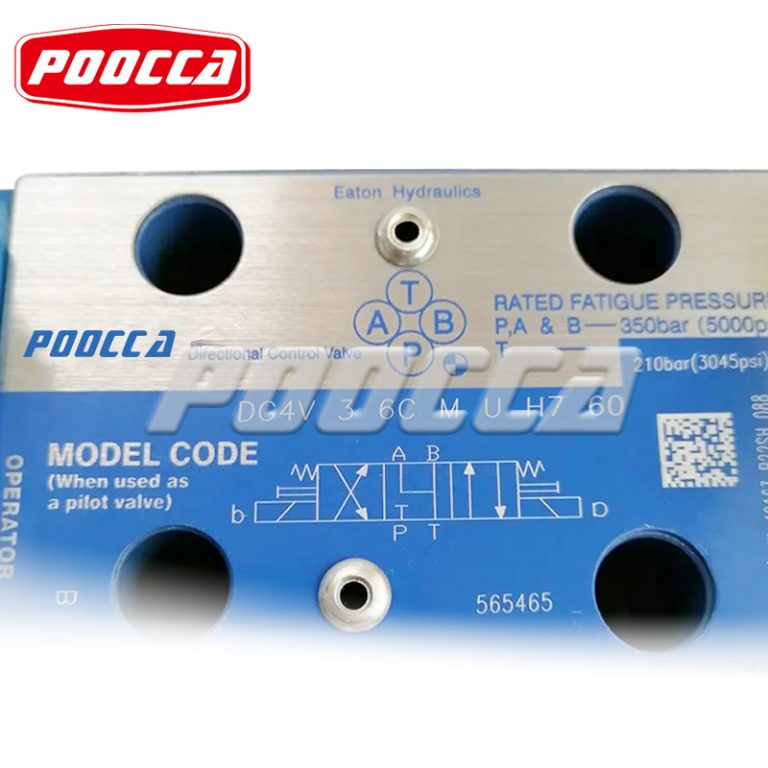

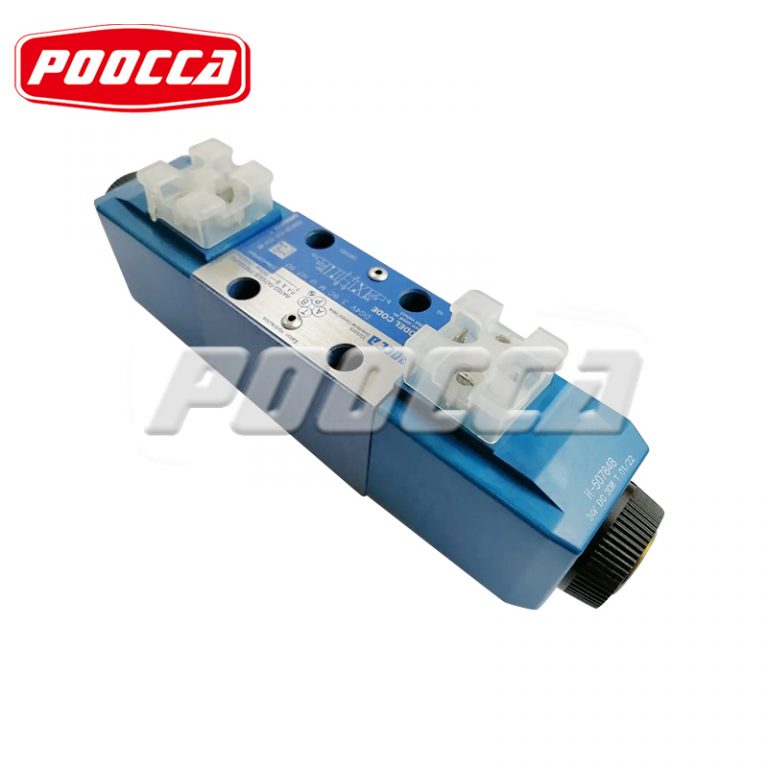

1.Eaton DG4V3-S/R valves are available in high performance and standard performance options.
2. At a flow rate of 30 l/min, the minimum pressure drop is 2.5 bar.
3. Valves come with a variety of coil connectors including DIN, Deutsch, AMP and junction box options.
4. There are a variety of coil voltages and powers to choose from.
5. High-performance valve handles flow rates up to 80 l/min (21 USgpm).
6. Standard performance valves handle flows up to 40 l/min (10.5 USgpm).
7.Both types of valves can operate at 350 bar (5000 psi) pressure.
8. Designers have the flexibility to select the most appropriate valve option for each application.

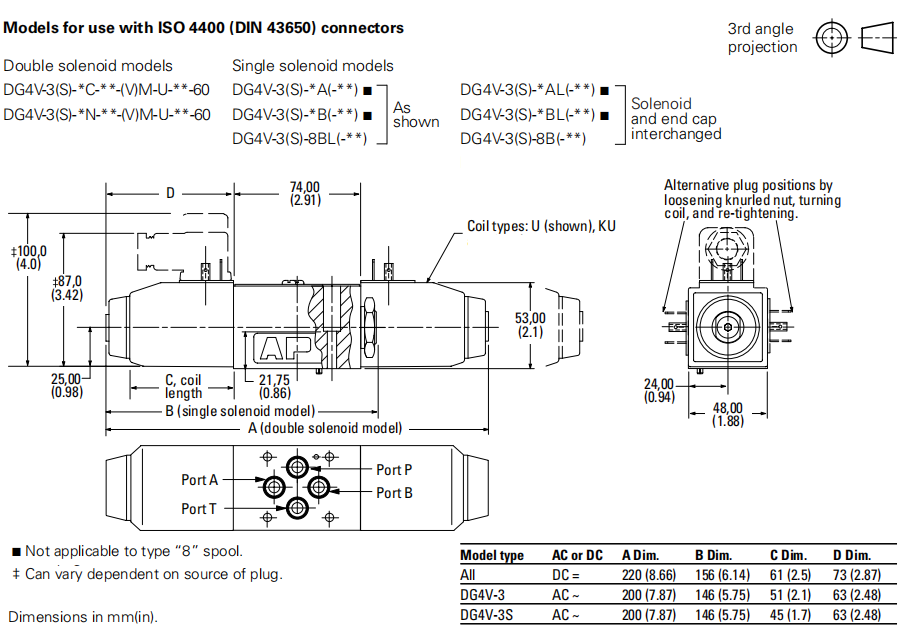

Pressure Limits
P, A and B ports |
DG4V-3S Valve DG4V-3 Valve
350 bar (5075 psi) 350 bar (5075 psi) . |
DG4V-3R Valve
350 bar (5075 psi) |
|||||
T port: | 100 bar (1450 psi) 210 bar (3045 psi) | 210 bar (3045 psi) | |||||
Flow rating | See performance data See performance data | See performance data | |||||
Relative duty factor | Continuous; ED = 100% Continuous; ED = 100% | Continuous; ED = 100% | |||||
Type of protection:
ISO 4400 coils with plug fitted correctly |
IEC 144 class IP65 IEC 144 class IP65 | IEC 144 class IP65 | |||||
Coil winding | Class H Class H | Class H | |||||
Lead wires (coils type F***) | Class H Class H | Class H | |||||
Coil encapsulation | Class F Class F | Class F | |||||
Maximum |
Permissable voltage fluctuation:
Refer to temperature limits. Refer to temperature limits. |
Refer to Temperature Limits |
|||||
Minimum | 90% rated 90% rated | 90% rated | |||||

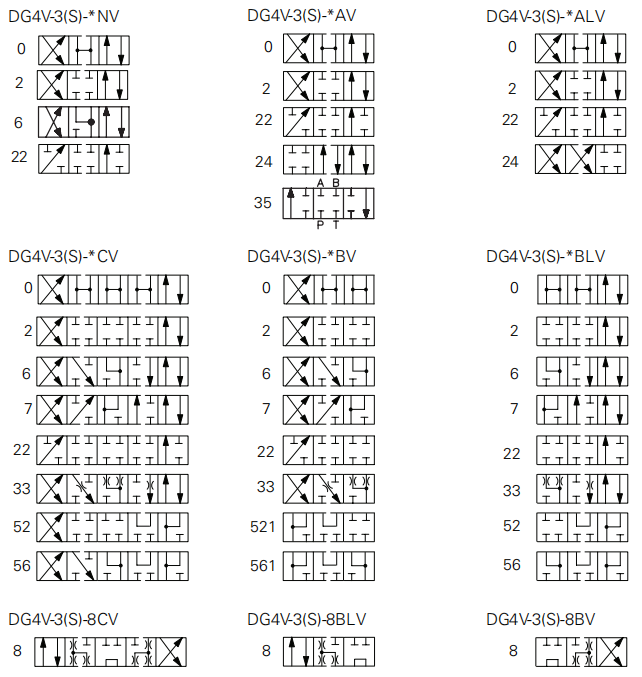

Typical response times at 100% rated volts measured from application/removal of voltage to full spool displacement of “2C” spool at:
Flow rate P-A, B-T 20 I/min (5.3 USgpm) 40 I/min (10.6 USgpm} 20 I/min (5.3 Usgpm) |
|||||||
Pressure 175 bar (2537 psi} 175 bar (2537 psi) 175 bar (2527 PSI} | |||||||
AC H energizing 18ms 15ms 18ms | |||||||
AC H de-energizing 32 ms 23 ms 32 ms | |||||||
DC (=) energizing 60 ms 45 ms 60ms | |||||||
DC (=) de-energizing 40 ms 28 ms 40ms | |||||||
Power consumption, AC
solenoids (for coils listed in model code). |
Initial
VA (RMS)
|
Holding
VA (RMS) |
Initial
VA (RMS)
|
Holding
VA (RMS) |
Initial
VA (RMS) |
Holding
VA (RMS) |
|
Full power coils:
Dual frequency coils at 50 Hz |
265 49 280 61 NIA |
||||||
Dual frequency coils at
60 HZ |
260 48 300 58 N/A | ||||||
Low power coils,
“BL” and “DL”: (Not available with “N” − No-spring detented models) |
Low power coils
not usable with DG4V-3S valves. |
170 37 N/A | |||||
Dual frequency coils at
50 Hz |
− − 190 37 NIA | ||||||
Dual frequency coils at
60 Hz |
− − − − N/A | ||||||
Power consumption, DC solenoids at rated voltage and 20 C (68 F). | |||||||
Full power coils: | |||||||
12V, model type “G” 30W − 30W − NIA | |||||||
24V, model type “H” 30W − 30W − N/A | |||||||
Low
12V, |
power coils:
model type “GL” |
Low power coils
not usable with DG4V-3S valves. |
− 18W NIA | ||||
24V, model type “HL” 18W − N/A | |||||||
24V, HM Coil BW − N/A |

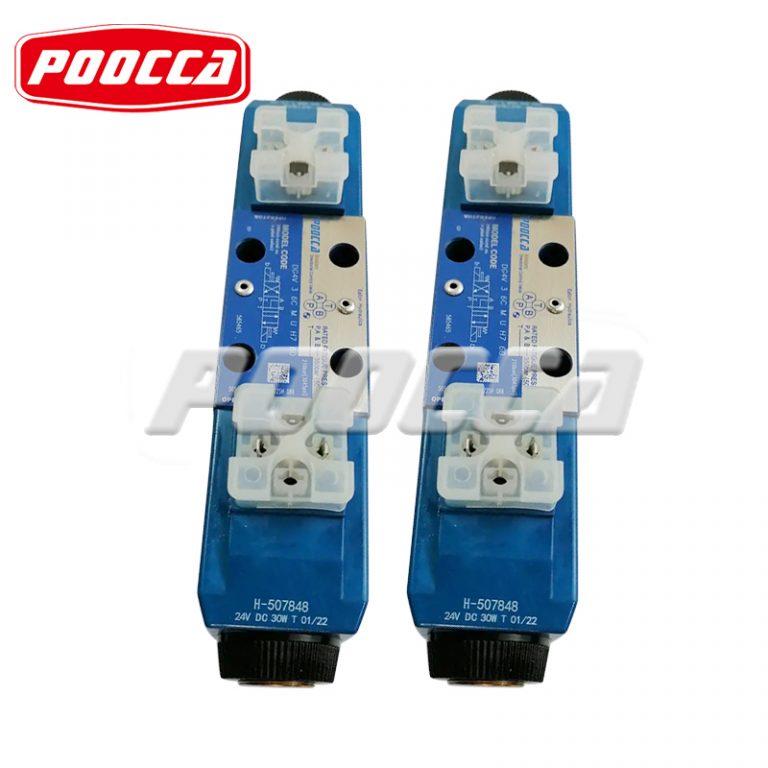

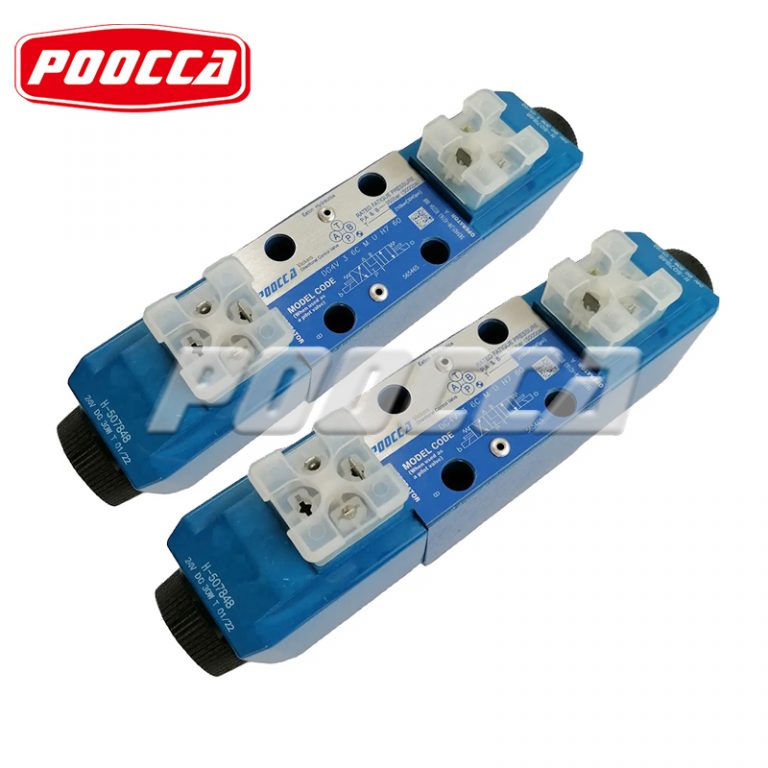

1.Eaton DG4V solenoid operated directional valve is designed to guide and stop flow within hydraulic systems.
2. They effectively control greater hydraulic power without increasing solenoid valve power consumption.
3.DG4V valve can save cost and space due to its higher power/weight and size ratio.
4. Provides installation flexibility by selecting various combinations of solenoid valve connectors and locations.
5. Standard Viton seals enable multi-fluid functionality, with optional nitrile seals available.
6. Hydraulic valves ensure higher continuous machine productivity and uptime, with fatigue life and durability tested for more than 20 million cycles.

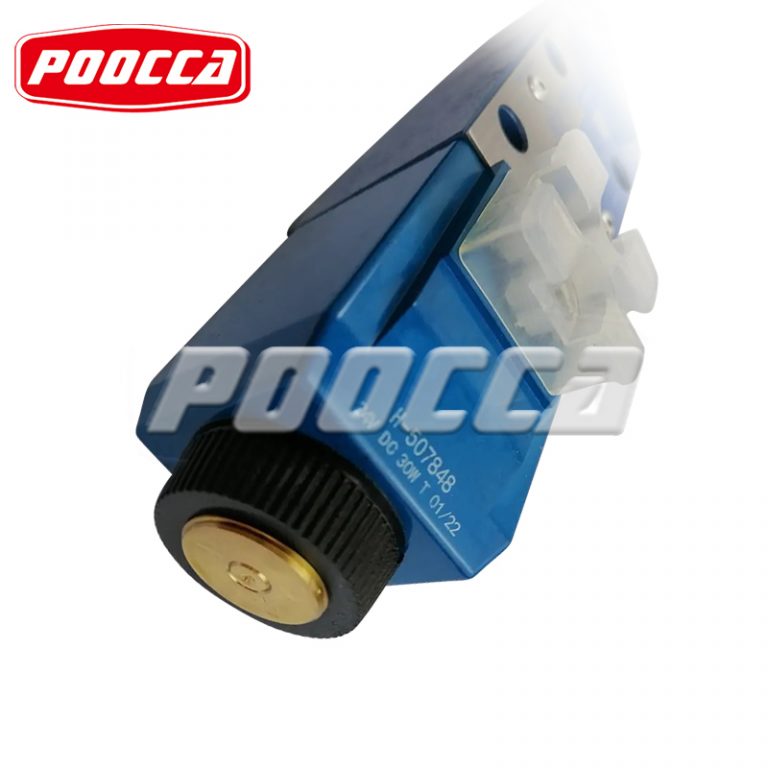

7. Eaton solenoid coil is easy and quick to replace and will not cause leakage in the hydraulic system.
8. When used with Eaton® SystemStak™ valves and subplates, these valves facilitate compact and cost-effective system designs.
1.Eaton DG4V3-S/R valves are available in high performance and standard performance options.
2. At a flow rate of 30 l/min, the minimum pressure drop is 2.5 bar.
3. Valves come with a variety of coil connectors including DIN, Deutsch, AMP and junction box options.
4. There are a variety of coil voltages and powers to choose from.
5. High-performance valve handles flow rates up to 80 l/min (21 USgpm).
6. Standard performance valves handle flows up to 40 l/min (10.5 USgpm).
7.Both types of valves can operate at 350 bar (5000 psi) pressure.
8. Designers have the flexibility to select the most appropriate valve option for each application.
Pressure Limits
P, A and B ports |
DG4V-3S Valve DG4V-3 Valve
350 bar (5075 psi) 350 bar (5075 psi) . |
DG4V-3R Valve
350 bar (5075 psi) |
|||||
T port: | 100 bar (1450 psi) 210 bar (3045 psi) | 210 bar (3045 psi) | |||||
Flow rating | See performance data See performance data | See performance data | |||||
Relative duty factor | Continuous; ED = 100% Continuous; ED = 100% | Continuous; ED = 100% | |||||
Type of protection:
ISO 4400 coils with plug fitted correctly |
IEC 144 class IP65 IEC 144 class IP65 | IEC 144 class IP65 | |||||
Coil winding | Class H Class H | Class H | |||||
Lead wires (coils type F***) | Class H Class H | Class H | |||||
Coil encapsulation | Class F Class F | Class F | |||||
Maximum |
Permissable voltage fluctuation:
Refer to temperature limits. Refer to temperature limits. |
Refer to Temperature Limits |
|||||
Minimum | 90% rated 90% rated | 90% rated | |||||
Typical response times at 100% rated volts measured from application/removal of voltage to full spool displacement of “2C” spool at:
Flow rate P-A, B-T 20 I/min (5.3 USgpm) 40 I/min (10.6 USgpm} 20 I/min (5.3 Usgpm) |
|||||||
Pressure 175 bar (2537 psi} 175 bar (2537 psi) 175 bar (2527 PSI} | |||||||
AC H energizing 18ms 15ms 18ms | |||||||
AC H de-energizing 32 ms 23 ms 32 ms | |||||||
DC (=) energizing 60 ms 45 ms 60ms | |||||||
DC (=) de-energizing 40 ms 28 ms 40ms | |||||||
Power consumption, AC
solenoids (for coils listed in model code). |
Initial
VA (RMS)
|
Holding
VA (RMS) |
Initial
VA (RMS)
|
Holding
VA (RMS) |
Initial
VA (RMS) |
Holding
VA (RMS) |
|
Full power coils:
Dual frequency coils at 50 Hz |
265 49 280 61 NIA |
||||||
Dual frequency coils at
60 HZ |
260 48 300 58 N/A | ||||||
Low power coils,
“BL” and “DL”: (Not available with “N” − No-spring detented models) |
Low power coils
not usable with DG4V-3S valves. |
170 37 N/A | |||||
Dual frequency coils at
50 Hz |
− − 190 37 NIA | ||||||
Dual frequency coils at
60 Hz |
− − − − N/A | ||||||
Power consumption, DC solenoids at rated voltage and 20 C (68 F). | |||||||
Full power coils: | |||||||
12V, model type “G” 30W − 30W − NIA | |||||||
24V, model type “H” 30W − 30W − N/A | |||||||
Low
12V, |
power coils:
model type “GL” |
Low power coils
not usable with DG4V-3S valves. |
− 18W NIA | ||||
24V, model type “HL” 18W − N/A | |||||||
24V, HM Coil BW − N/A |
1.Eaton DG4V solenoid operated directional valve is designed to guide and stop flow within hydraulic systems.
2. They effectively control greater hydraulic power without increasing solenoid valve power consumption.
3.DG4V valve can save cost and space due to its higher power/weight and size ratio.
4. Provides installation flexibility by selecting various combinations of solenoid valve connectors and locations.
5. Standard Viton seals enable multi-fluid functionality, with optional nitrile seals available.
6. Hydraulic valves ensure higher continuous machine productivity and uptime, with fatigue life and durability tested for more than 20 million cycles.
7. Eaton solenoid coil is easy and quick to replace and will not cause leakage in the hydraulic system.
8. When used with Eaton® SystemStak™ valves and subplates, these valves facilitate compact and cost-effective system designs.
