Stacked design:
MBP MBA MBB can be directly installed on the standard valve plate and combined with other modular valves (such as directional valves, throttle valves, etc.) to save installation space and facilitate system integration.
High-pressure capability:
With a rated maximum working pressure of 21 MPa (3050 PSI), the MBP MBA MBB hydraulic valve is suitable for medium and high-pressure hydraulic systems to ensure safe and reliable operation of the system.
Good flow characteristics:
The maximum flow is 35 L/min (9.25 U.S. GPM), which is suitable for small and medium-sized hydraulic circuits, with stable flow and sensitive control.

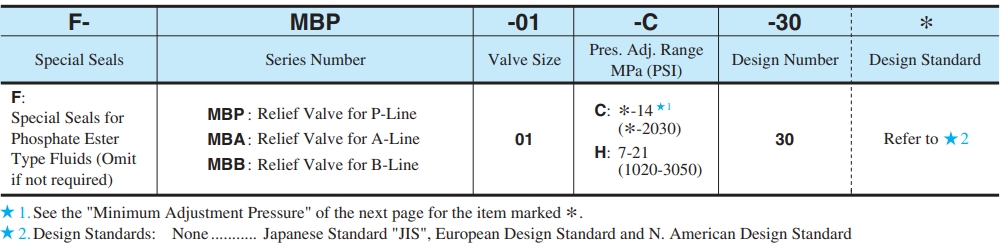

Multiple models with optional functions:
MBP-01: Standard overflow function
MBA-01: With back pressure control function
MBB-01: Bidirectional overflow or other special control functions (as defined by the manufacturer)
MBP, MBA, MBB series stacking relief valves adopt compact structure and small valve body design, which is easy to install, replace and maintain, and can effectively improve system maintenance efficiency. They are often used in injection molding machines, machine tools, engineering machinery and hydraulic power units.
Stacked design:
MBP MBA MBB can be directly installed on the standard valve plate and combined with other modular valves (such as directional valves, throttle valves, etc.) to save installation space and facilitate system integration.
High-pressure capability:
With a rated maximum working pressure of 21 MPa (3050 PSI), the MBP MBA MBB hydraulic valve is suitable for medium and high-pressure hydraulic systems to ensure safe and reliable operation of the system.
Good flow characteristics:
The maximum flow is 35 L/min (9.25 U.S. GPM), which is suitable for small and medium-sized hydraulic circuits, with stable flow and sensitive control.
Multiple models with optional functions:
MBP-01: Standard overflow function
MBA-01: With back pressure control function
MBB-01: Bidirectional overflow or other special control functions (as defined by the manufacturer)
MBP, MBA, MBB series stacking relief valves adopt compact structure and small valve body design, which is easy to install, replace and maintain, and can effectively improve system maintenance efficiency. They are often used in injection molding machines, machine tools, engineering machinery and hydraulic power units.
