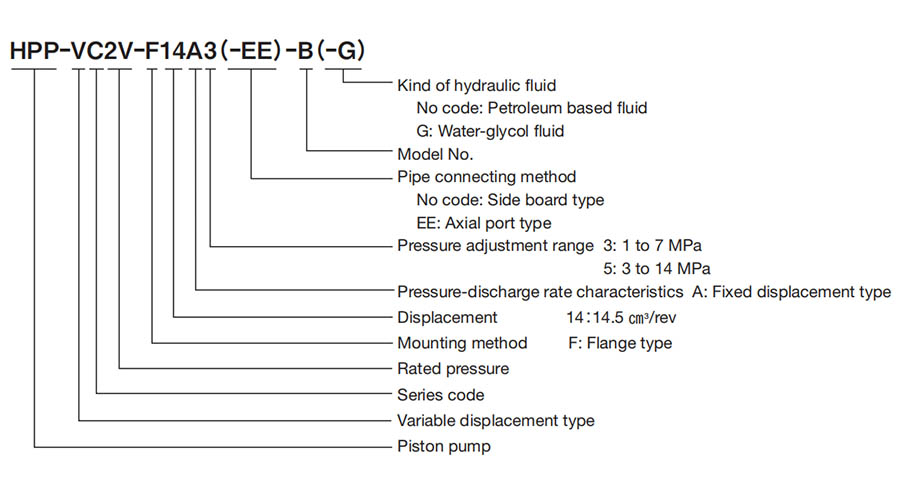

HPP VC2V piston pump flange type is divided into: HPP-VC2V-F14A3 (-EE) -B, HPP-VC2V-F14A5 (-EE) -B
Displacement: 14.5
Pressure adjustment range: 1-14
For more details about HPP-VC2V, HPP-VB2V, HPP-VD2V products, please contact POOCCA hydraulic pump manufacturer.

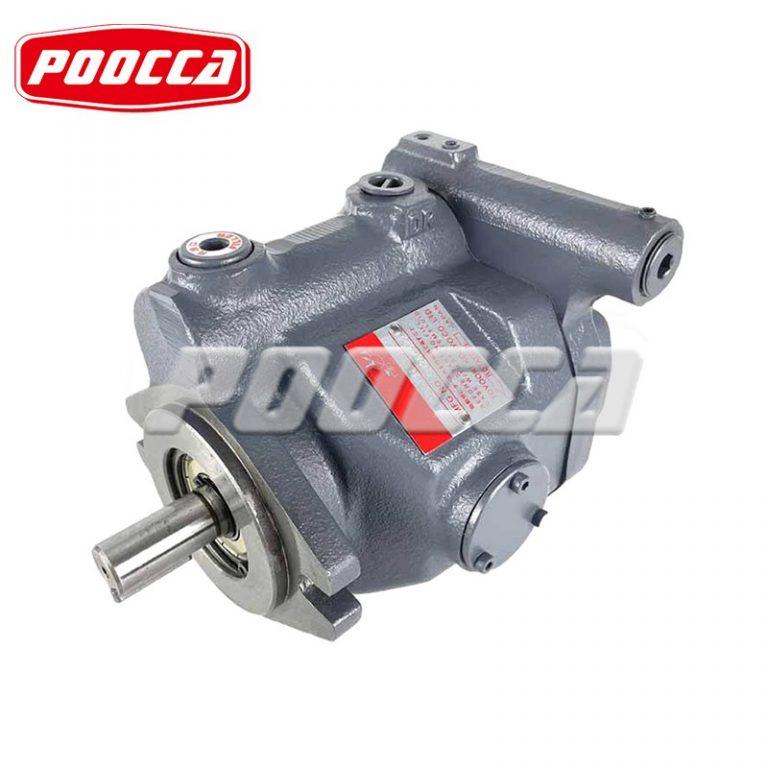

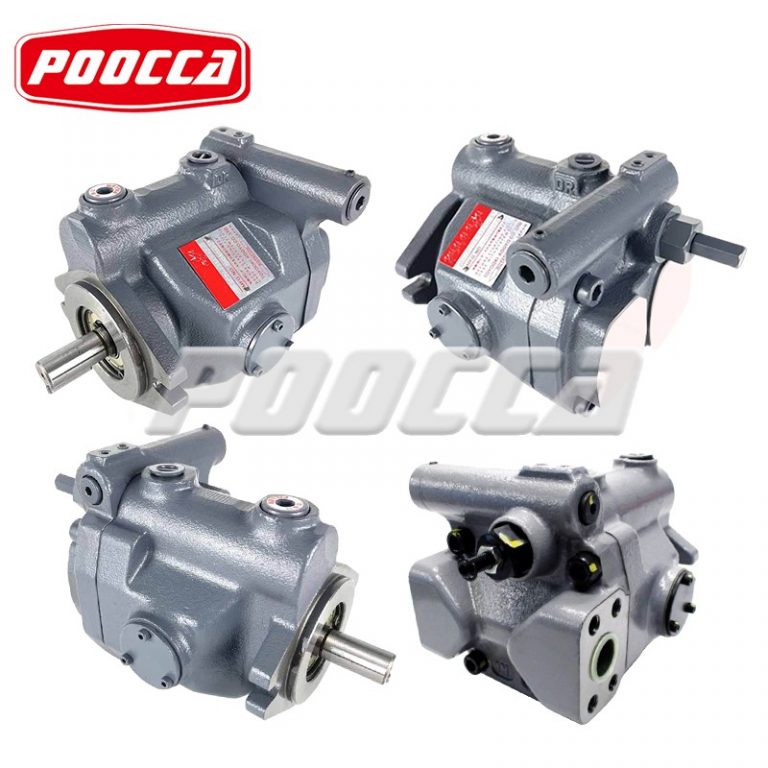

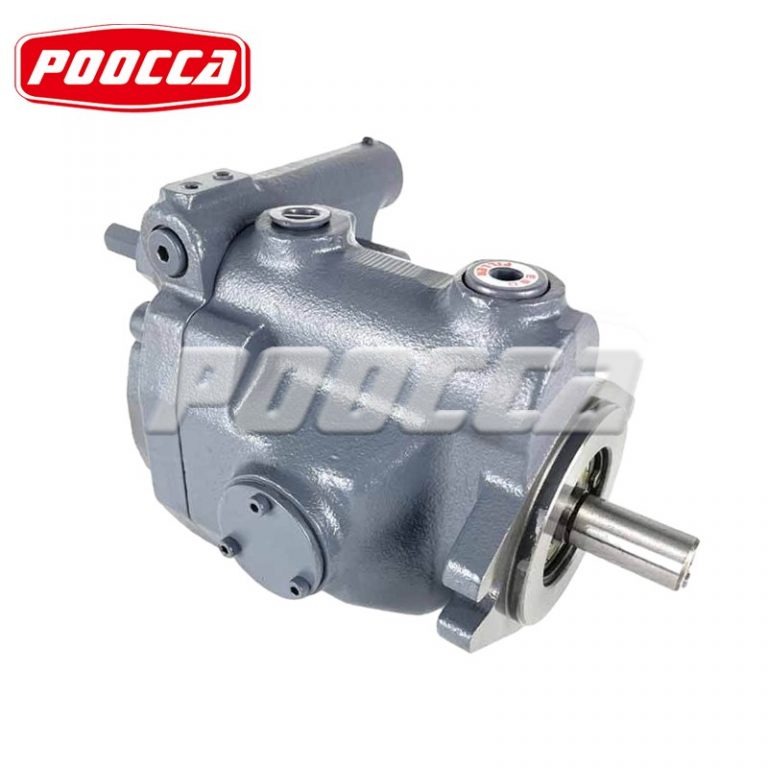

Toyooki HPP-VC2V swash plate type piston pump features low noise, high efficiency and high response.
It provides specifications that assure ease of use, such as discharge rate, pressure adjustment range and pipe connection directions, and ensures excellent durability.
■Features
1. Low noise
14 MPa, at cut-off: 53 dB (A), before cut-off: 58 dB (A) (at 1 m from 1,200 min-1 pump) 2. High efficiency (energy saving)
Volumetric efficiency: 95%,whole efficiency: 90% (at 13.5 MPa, 1,800 min-1) 3. High response
Response time from 14 MPa cut-off to 13.5 MPa: 0.06 sec
Response time from 13.5 MPa to 14 MPa cut-off: 0.03 sec
| Model | Displacement
(m3/rev) |
Pressure adjustment range
(MPa) |
Rotating speed (min-1) | ||
| Flange type | Rated | Max. | Lowest | ||
| HPP-VC2V-F14A3（-EE）-B | *to 14.5 | 1 to 7 | 1,800 | 3,000 | 500 |
| HPP-VC2V-F14A5（-EE）-B | 3 to 14 | ||||

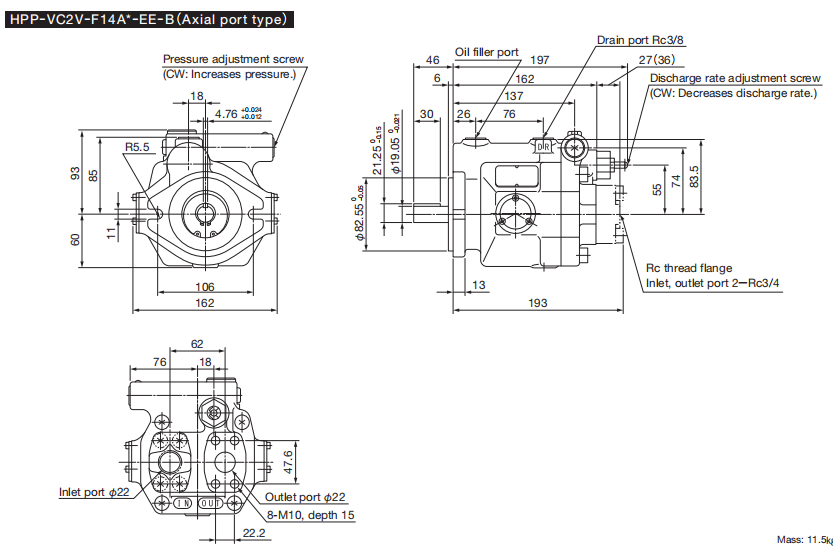

HPP ｰ VC2V ｰ F14A* ｰ EE ｰ B（Axial port type）

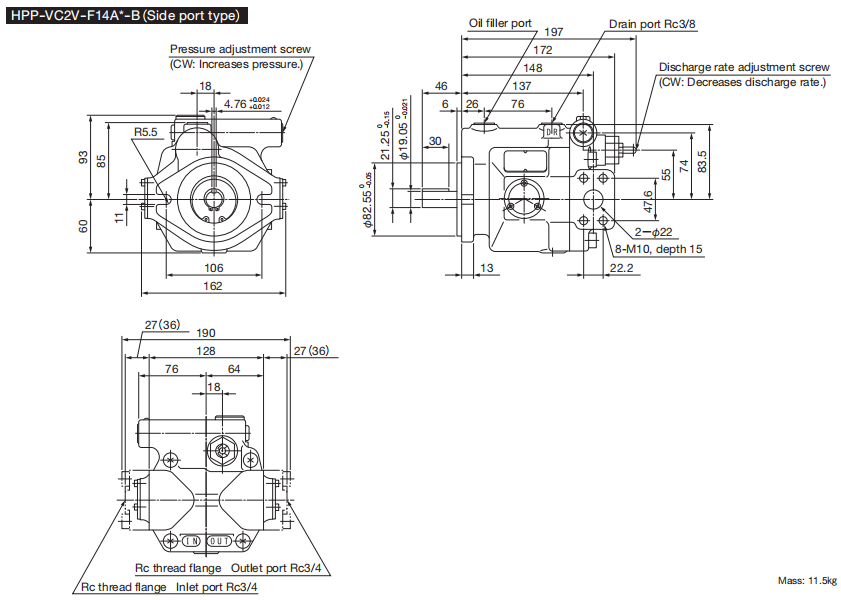

HPP ｰVC2V ｰ F14A* ｰ B（Side port type)
Toyooki HPP-VC2V swash plate type piston pump features low noise, high efficiency and high response.
It provides specifications that assure ease of use, such as discharge rate, pressure adjustment range and pipe connection directions, and ensures excellent durability.
■Features
1. Low noise
14 MPa, at cut-off: 53 dB (A), before cut-off: 58 dB (A) (at 1 m from 1,200 min-1 pump) 2. High efficiency (energy saving)
Volumetric efficiency: 95%,whole efficiency: 90% (at 13.5 MPa, 1,800 min-1) 3. High response
Response time from 14 MPa cut-off to 13.5 MPa: 0.06 sec
Response time from 13.5 MPa to 14 MPa cut-off: 0.03 sec
| Model | Displacement
(m3/rev) |
Pressure adjustment range
(MPa) |
Rotating speed (min-1) | ||
| Flange type | Rated | Max. | Lowest | ||
| HPP-VC2V-F14A3（-EE）-B | *to 14.5 | 1 to 7 | 1,800 | 3,000 | 500 |
| HPP-VC2V-F14A5（-EE）-B | 3 to 14 | ||||
HPP ｰ VC2V ｰ F14A* ｰ EE ｰ B（Axial port type）
HPP ｰVC2V ｰ F14A* ｰ B（Side port type)
