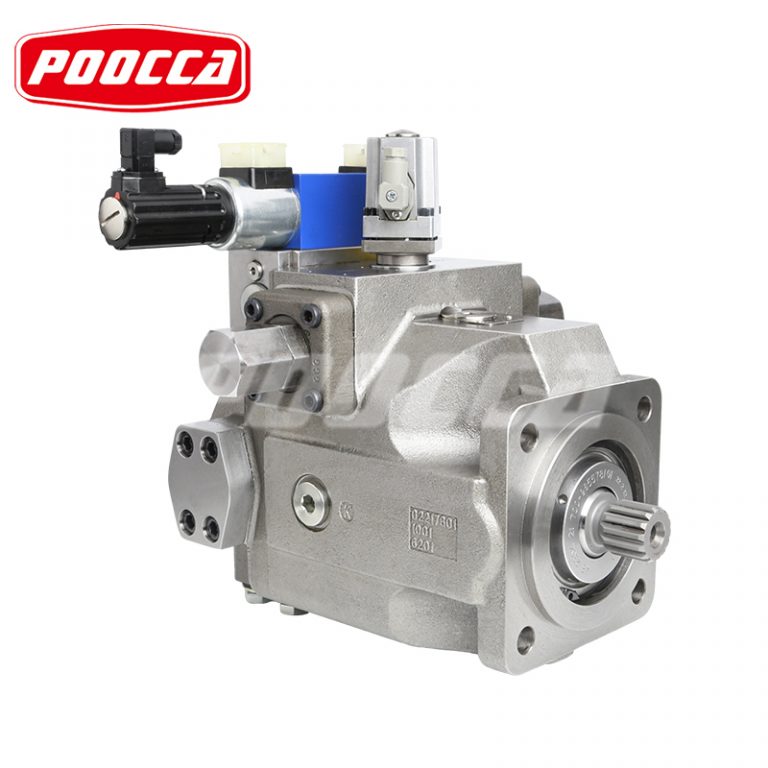

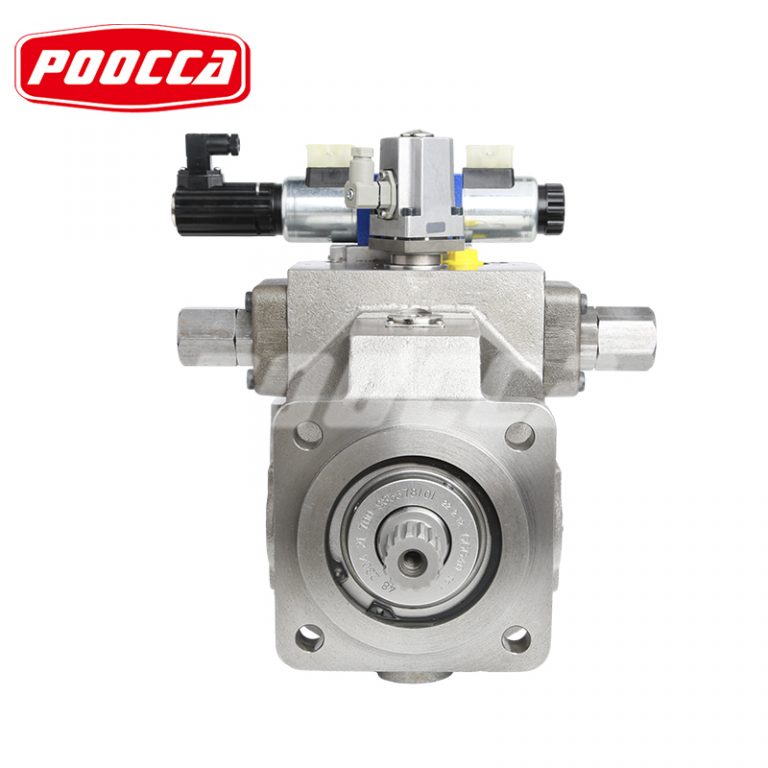

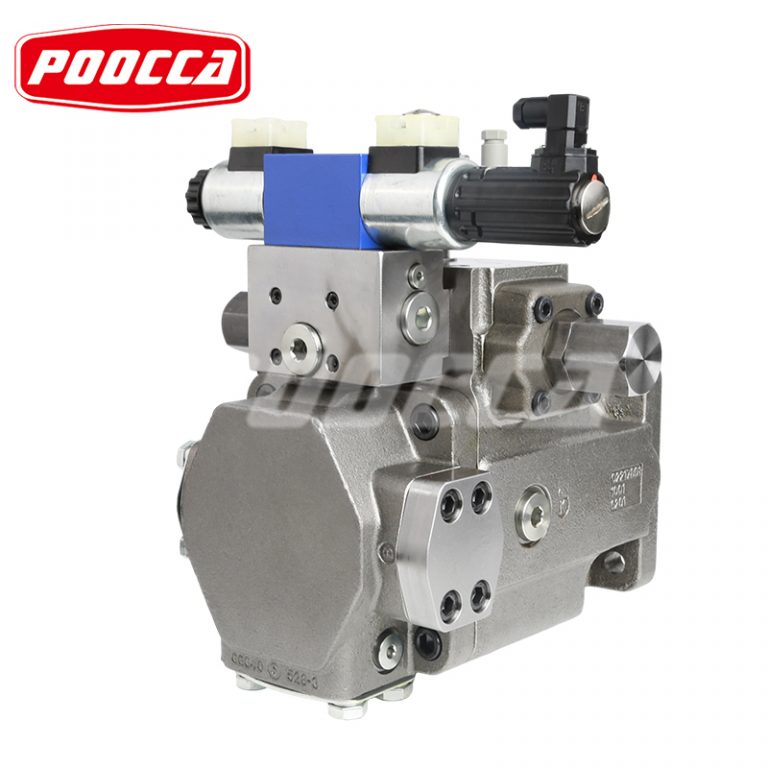

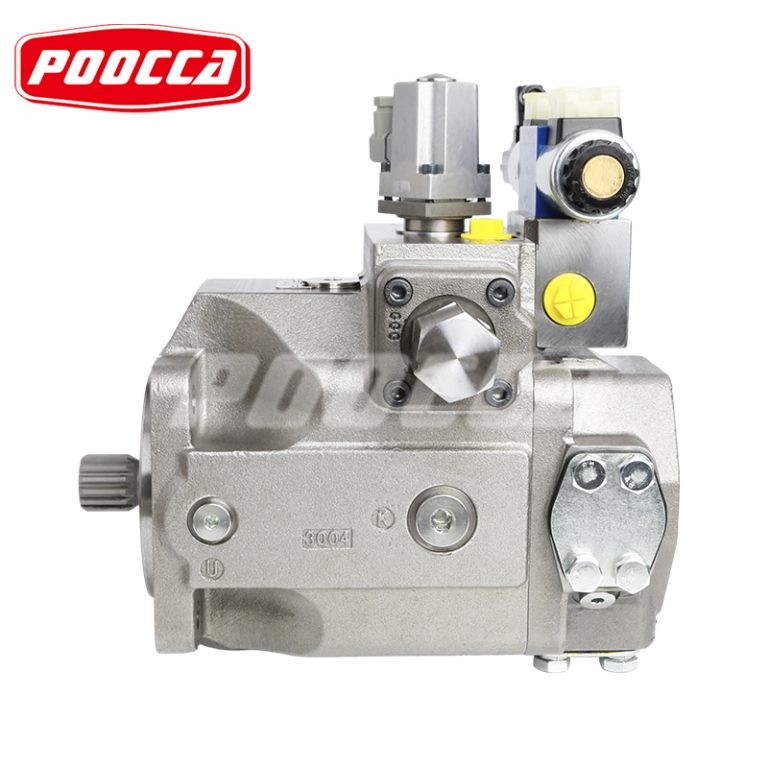

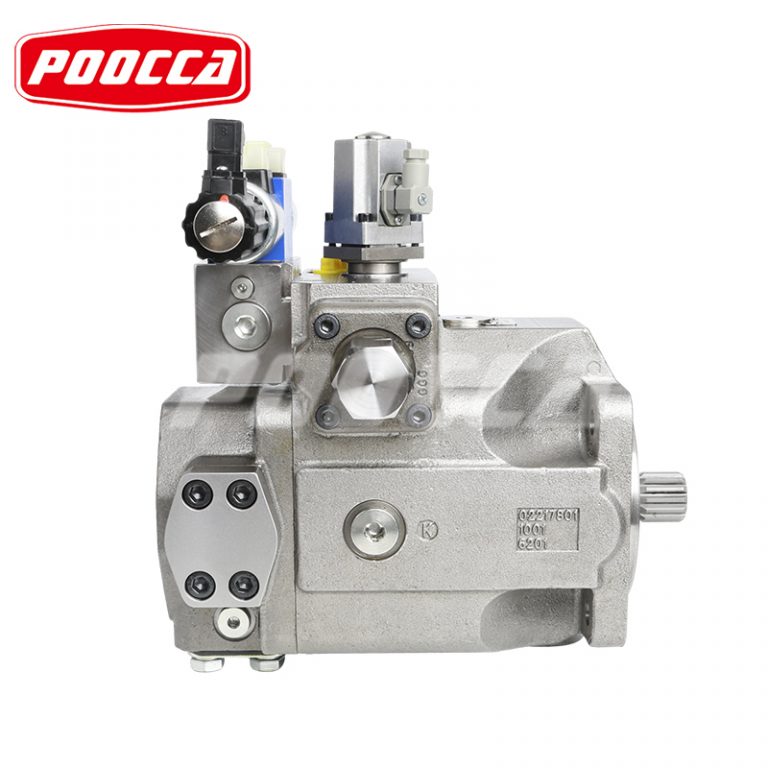

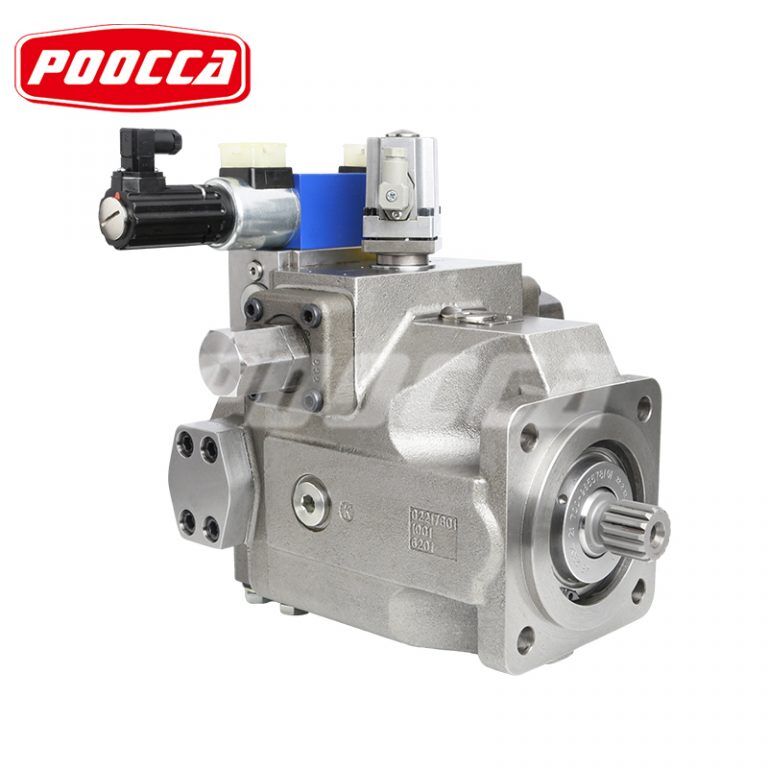

A4VSO swash plate structure axial piston variable pump is suitable for hydrostatic transmission in open circuits, and the flow rate is proportional to the transmission speed and displacement.
By adjusting the angle of the swash plate, stepless changes in flow rate can be achieved, with excellent oil suction performance and low noise levels.
Rexroth A4VSO A4VO piston pump provides long service life and axial and radial load capacity of the drive shaft while providing an ideal power-to-weight ratio.
Piston pump features a modular design with variable shaft drive options and a visual rotation angle indicator.
The installation position can be changed freely and is suitable for variable speed drives.
HF mode is available to reduce data volume, and a special version of HFC mode is also available.
| Size | Â | NG | 40 | 71 | 125 | 180 | 250 | 355 | 500 | 750 | 7505) | 1000 | |
| Geometric displacement
per revolution |
Vg max | cm3 | 40 | 71 | 125 | 180 | 250 | 355 | 500 | 750 | 750 | 1000 | |
| Rotational speed
maximum1) |
at Vg max 2) | nnom | rpm | 2600 | 2200 | 1800 | 1800 | 1500 | 1500 | 1320 | 1200 | 1500 | 1000 |
| at Vg ≤ Vg max 3) | nmax | rpm | 3200 | 2700 | 2200 | 2100 | 1800 | 1700 | 1600 | 1500 | 1500 | 1200 | |
| Flow | at nnom and Vg max | qv | l/min | 104 | 156 | 225 | 324 | 375 | 533 | 660 | 900 | 1125 | 1000 |
| at 1500 rpm | qv | l/min | 60 | 107 | 186 | 270 | 375 | 533 | 5816) | 7706) | 1125 | – | |
| Power | at nnom, Vg max
and Δp = 350 bar |
P | kW | 61 | 91 | 131 | 189 | 219 | 311 | 385 | 525 | 656 | 583 |
| at 1500 rpm | P | kW | 35 | 62 | 109 | 158 | 219 | 311 | 3396) | 4496) | 656 | – | |
| Torque | at nnom, Vg max
and Δp = 350 bar 2) |
M max | Nm | 223 | 395 | 696 | 1002 | 1391 | 1976 | 2783 | 4174 | 4174 | 5565 |
| and Δp = 100 bar 2) | M | Nm | 64 | 113 | 199 | 286 | 398 | 564 | 795 | 1193 | 1193 | 1590 | |
| Rotary stiffness of drive shaft | Shaft end P | c | kNm/rad | 80 | 146 | 260 | 328 | 527 | 800 | 1145 | 1860 | 1860 | 2730 |
| Shaft end Z | c | kNm/rad | 77 | 146 | 263 | 332 | 543 | 770 | 1136 | 1812 | 1812 | 2845 | |
| Moment of inertia | JTW | kgm2 | 0.0049 | 0.0121 | 0.03 | 0.055 | 0.0959 | 0.19 | 0.3325 | 0.66 | 0.66 | 1.2 | |
| Maximum angular acceleration4) | a | rad/s² | 17000 | 11000 | 8000 | 6800 | 4800 | 3600 | 2800 | 2000 | 2000 | 1450 | |
| Case volume | v | l | 2 | 2.5 | 5 | 4 | 10 | 8 | 14 | 19 | 22 | 27 | |
| Weight (without through drive) approx. | m | kg | 39 | 53 | 88 | 102 | 184 | 207 | 320 | 460 | 490 | 605 | |
When confirming the model, we will send the size and other relevant parameters to verify and place the order. Usually, regular products can be delivered within 5-7 days. Large quantities or special products require communication.
Main dimensions only for the basic unit, further dimensions are given in the relevant data sheets.
Hydraulic shaft section display

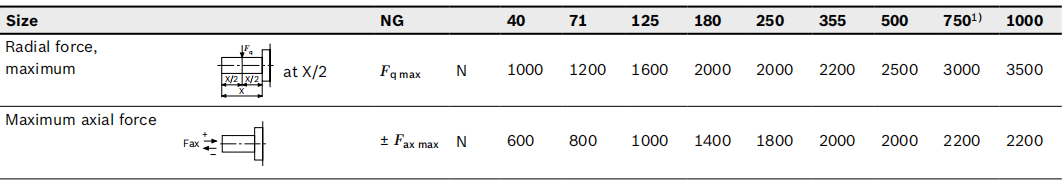

Permissible radial and axial forces on the drive shaft
POOCCAÂ has many years of hydraulic experience and can provide you with professional help. It is a one-stop hydraulic purchasing mall integrating R&D, manufacturing, sales and maintenance, providing you with affordable prices, high-quality products, and 12-month For after-sales guarantee, online technical guidance, etc., please contact poocca immediately.
POOCCA VIP’s professional team provides hydraulic solutions that are suitable for youThe minimum order quantity is 1 piece, more discounts are available for larger quantitiesOnline 24 hours a day, no matter when you contact us, we will reply you within 2-3 hoursOEM&ODM
We sell hydraulic gear pumps, hydraulic piston pumps, hydraulic vane pumps, hydraulic motors, hydraulic accessories and other products. Hydraulic pumps made of high-quality materials are also tested before production, and the product qualification rate is as high as 99.9%.
A4VSO swash plate structure axial piston variable pump is suitable for hydrostatic transmission in open circuits, and the flow rate is proportional to the transmission speed and displacement.
By adjusting the angle of the swash plate, stepless changes in flow rate can be achieved, with excellent oil suction performance and low noise levels.
Rexroth A4VSO A4VO piston pump provides long service life and axial and radial load capacity of the drive shaft while providing an ideal power-to-weight ratio.
Piston pump features a modular design with variable shaft drive options and a visual rotation angle indicator.
The installation position can be changed freely and is suitable for variable speed drives.
HF mode is available to reduce data volume, and a special version of HFC mode is also available.
| Size | Â | NG | 40 | 71 | 125 | 180 | 250 | 355 | 500 | 750 | 7505) | 1000 | |
| Geometric displacement
per revolution |
Vg max | cm3 | 40 | 71 | 125 | 180 | 250 | 355 | 500 | 750 | 750 | 1000 | |
| Rotational speed
maximum1) |
at Vg max 2) | nnom | rpm | 2600 | 2200 | 1800 | 1800 | 1500 | 1500 | 1320 | 1200 | 1500 | 1000 |
| at Vg ≤ Vg max 3) | nmax | rpm | 3200 | 2700 | 2200 | 2100 | 1800 | 1700 | 1600 | 1500 | 1500 | 1200 | |
| Flow | at nnom and Vg max | qv | l/min | 104 | 156 | 225 | 324 | 375 | 533 | 660 | 900 | 1125 | 1000 |
| at 1500 rpm | qv | l/min | 60 | 107 | 186 | 270 | 375 | 533 | 5816) | 7706) | 1125 | – | |
| Power | at nnom, Vg max
and Δp = 350 bar |
P | kW | 61 | 91 | 131 | 189 | 219 | 311 | 385 | 525 | 656 | 583 |
| at 1500 rpm | P | kW | 35 | 62 | 109 | 158 | 219 | 311 | 3396) | 4496) | 656 | – | |
| Torque | at nnom, Vg max
and Δp = 350 bar 2) |
M max | Nm | 223 | 395 | 696 | 1002 | 1391 | 1976 | 2783 | 4174 | 4174 | 5565 |
| and Δp = 100 bar 2) | M | Nm | 64 | 113 | 199 | 286 | 398 | 564 | 795 | 1193 | 1193 | 1590 | |
| Rotary stiffness of drive shaft | Shaft end P | c | kNm/rad | 80 | 146 | 260 | 328 | 527 | 800 | 1145 | 1860 | 1860 | 2730 |
| Shaft end Z | c | kNm/rad | 77 | 146 | 263 | 332 | 543 | 770 | 1136 | 1812 | 1812 | 2845 | |
| Moment of inertia | JTW | kgm2 | 0.0049 | 0.0121 | 0.03 | 0.055 | 0.0959 | 0.19 | 0.3325 | 0.66 | 0.66 | 1.2 | |
| Maximum angular acceleration4) | a | rad/s² | 17000 | 11000 | 8000 | 6800 | 4800 | 3600 | 2800 | 2000 | 2000 | 1450 | |
| Case volume | v | l | 2 | 2.5 | 5 | 4 | 10 | 8 | 14 | 19 | 22 | 27 | |
| Weight (without through drive) approx. | m | kg | 39 | 53 | 88 | 102 | 184 | 207 | 320 | 460 | 490 | 605 | |
When confirming the model, we will send the size and other relevant parameters to verify and place the order. Usually, regular products can be delivered within 5-7 days. Large quantities or special products require communication.

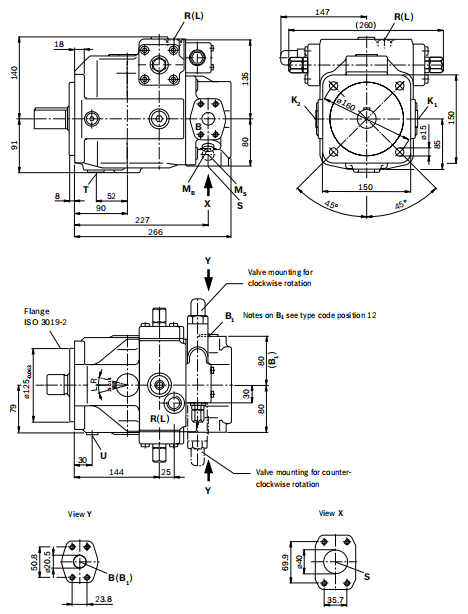

Main dimensions only for the basic unit, further dimensions are given in the relevant data sheets.

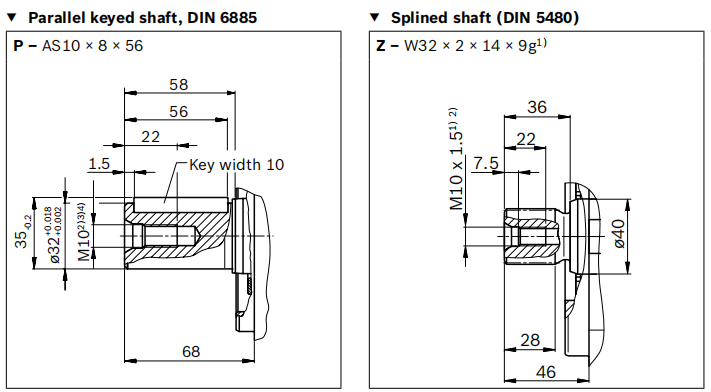

Hydraulic shaft section display
Permissible radial and axial forces on the drive shaft
POOCCAÂ has many years of hydraulic experience and can provide you with professional help. It is a one-stop hydraulic purchasing mall integrating R&D, manufacturing, sales and maintenance, providing you with affordable prices, high-quality products, and 12-month For after-sales guarantee, online technical guidance, etc., please contact poocca immediately.
POOCCA VIP’s professional team provides hydraulic solutions that are suitable for youThe minimum order quantity is 1 piece, more discounts are available for larger quantitiesOnline 24 hours a day, no matter when you contact us, we will reply you within 2-3 hoursOEM&ODM
We sell hydraulic gear pumps, hydraulic piston pumps, hydraulic vane pumps, hydraulic motors, hydraulic accessories and other products. Hydraulic pumps made of high-quality materials are also tested before production, and the product qualification rate is as high as 99.9%.

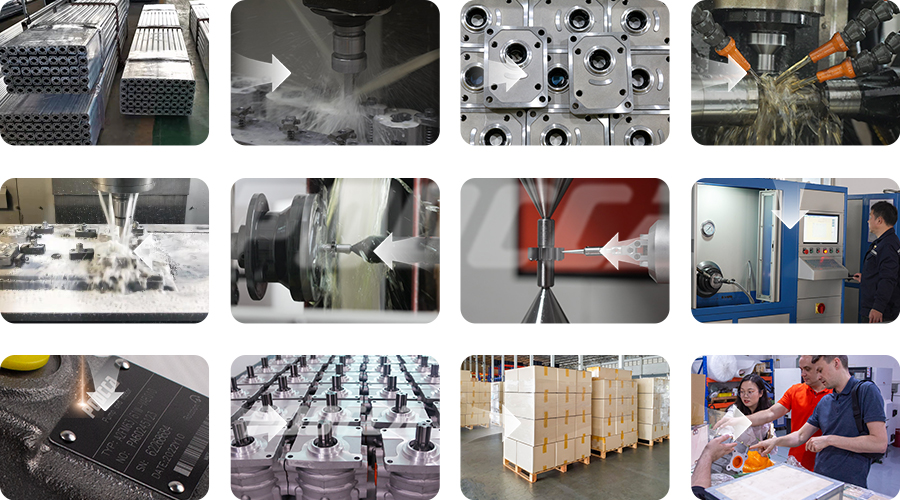

POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
