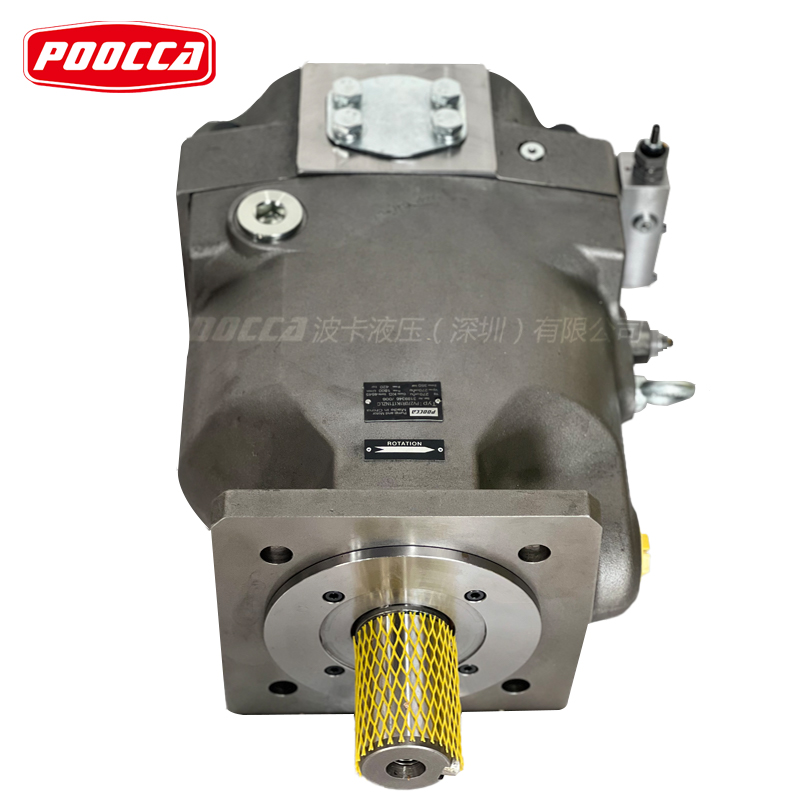

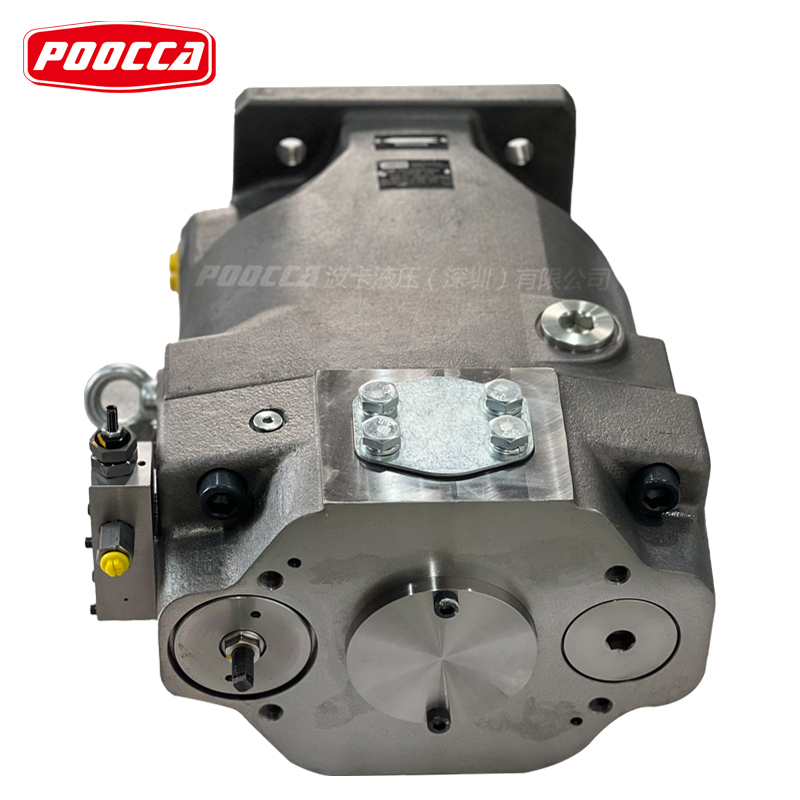

Open Circuit Parker PV Piston Pump

PV Piston Pump Size:016/020/023/040/046/063/080/092/140/180/270/360

Nominal Pressure:350 bar

Maximum Pressure:420 bar

(PV016,PV020,PV023,PV032,PV040,PV046,PV063,PV080,PV092,PV140,PV180,PV270)

Chat Now

Characteristic

The installation method complies with the VDMA-24560 standard part 1: 4-hole flange ISO 3019/2 (metric) Optional: 4-hole flange ISO 3019/1 (SAE)

Large variable piston and strong return spring can achieve fast response, such as PV046 pump

Upstroke <70 ms

Downstroke <40 ms

Note: Follow the installation instructions

The system cylinder pressure reduces pressure peaks during the downstroke. At low system pressures, it also ensures that the compensator functions with a minimum compensation pressure of <10 bar.

Nine plungers and new pre-compression volume technology minimize flow pulsation. Rigid and finite element optimized pump body design for lowest noise.

Compensator diversification.

Thru-shaft drive with 100% rated torque.

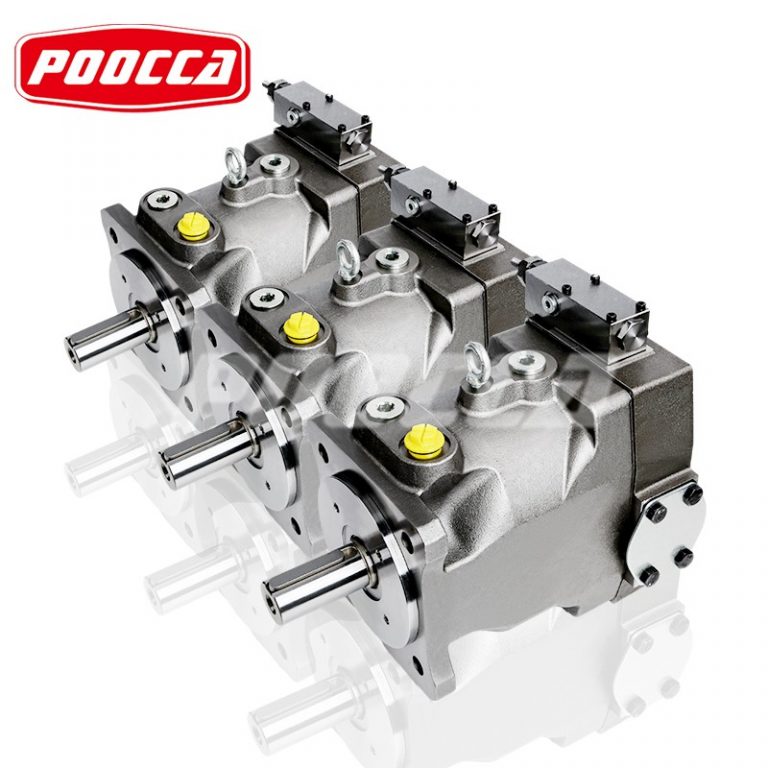

For a combination of pumps of the same size and model (multiple pumps), the installation interface basically adopts metric or SAE interface.

Parameter

Open Circuit Parker PV Piston Pump

		PV016	PV020	PV023	PV028	PV032	PV040	PV046
Frame size		1	1	1	1	2	2	2
Max. Displacement	[cm3/rev.]	16	20	23	28	32	40	46
Output flow at 1500 rpm	[l/min]	24	30	34,5	42	48	60	69
Nominal pressure pN	[bar]	350	350	350	350	350	350	350
Min. outlet pressure	[bar]	15	15	15	15	15	15	15
Max. pressure pmax at 20% working cycle1)	[bar]	420	420	420	420	420	420	420
Case drain pressure, continuous	[bar]	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Case drain pressure, max. peak	[bar]	2	2	2	2	2	2	2
Min. Inlet pressure, abs.	[bar]	0.8	0.8	0.8	0.8	0.8	0.8	0.8
Max. Inlet pressure	[bar]	16	16	16	16	16	16	16
Input power at 1500 rpm and 350 bar	[kW]	15.5	19.5	22.5	27.5	31	39	45
Max speed at 1 bar, abs, inlet pressure	[rpm]	3000	3000	3000	3000	2800	2800	2800
Min. speed	[rpm]	400	400	400	400	400	400	400
Moment of inertia	[kgm2]	0.0017	0.0017	0.0017	0.0017	0.0043	0.0043	0.0043
Weight	[kg]	19	19	19	19	30	30	30

		PV063	PV080	PV092	PV140	PV180	PV270	PV360
Frame size		3	3	3	4	4	5	6
Max. Displacement	[cm3/rev.]	63	80	92	140	180	270	360
Output flow at 1500 rpm	[l/min]	94.5	120	138	210	270	405	540
Nominal pressure pN	[bar]	350	350	350	350	350	350	350
Min. outlet pressure	[bar]	15	15	15	15	15	15	15
Max. pressure pmax at 20% working cycle1)	[bar]	420	420	420	420	420	420	420
Case drain pressure, continuous	[bar]	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Case drain pressure, max. peak	[bar]	2	2	2	2	2	2	2
Min. Inlet pressure, abs.	[bar]	0.8	0.8	0.8	0.8	0.8	0.8	0.8
Max. Inlet pressure	[bar]	16	16	16	16	16	16	16
Input power at 1500 rpm and 350 bar	[kW]	61.5	78	89.5	136	175	263	350
Max speed at 1 bar, abs, inlet pressure	[rpm]	2800	2500	2300	2400	2200	1800	1750
Min. speed	[rpm]	400	400	400	400	400	400	400
Moment of inertia	[kgm2]	0.018	0.018	0.018	0.03	0.03	0.098	0.103
Weight	[kg]	59	59	59	90	90	172	180

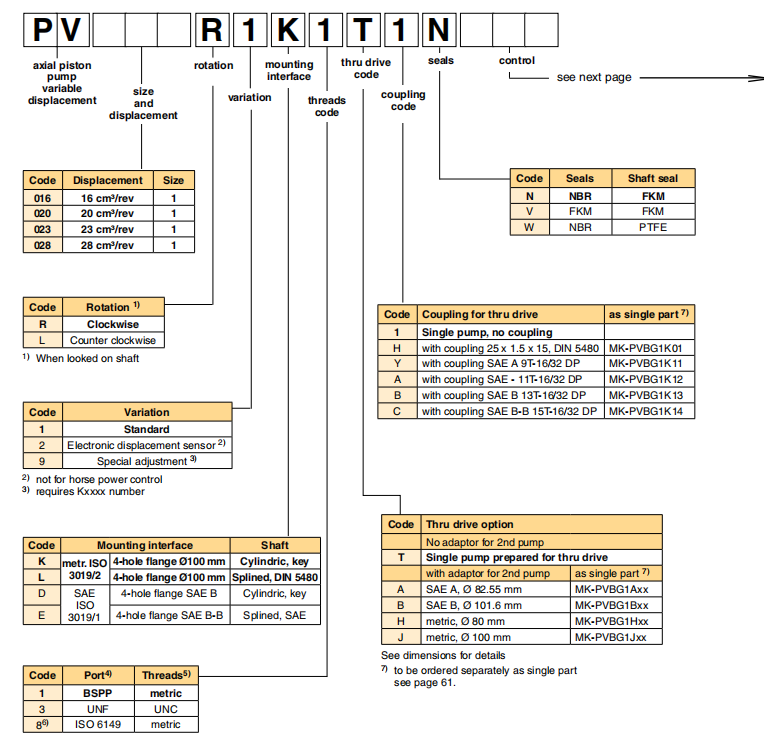

Order Code

Open Circuit Parker PV Piston Pump

PV Piston Pump Size:016/020/023/040/046/063/080/092/140/180/270/360 Nominal Pressure:350 bar Maximum Pressure:420 bar (PV016,PV020,PV023,PV032,PV040,PV046,PV063,PV080,PV092,PV140,PV180,PV270)

Chat Now

Characteristic

The installation method complies with the VDMA-24560 standard part 1: 4-hole flange ISO 3019/2 (metric) Optional: 4-hole flange ISO 3019/1 (SAE)

Large variable piston and strong return spring can achieve fast response, such as PV046 pump

Upstroke <70 ms

Downstroke <40 ms

Note: Follow the installation instructions

The system cylinder pressure reduces pressure peaks during the downstroke. At low system pressures, it also ensures that the compensator functions with a minimum compensation pressure of <10 bar.

Nine plungers and new pre-compression volume technology minimize flow pulsation. Rigid and finite element optimized pump body design for lowest noise.

Compensator diversification.

Thru-shaft drive with 100% rated torque.

For a combination of pumps of the same size and model (multiple pumps), the installation interface basically adopts metric or SAE interface.

Parameter

Open Circuit Parker PV Piston Pump

		PV016	PV020	PV023	PV028	PV032	PV040	PV046
Frame size		1	1	1	1	2	2	2
Max. Displacement	[cm3/rev.]	16	20	23	28	32	40	46
Output flow at 1500 rpm	[l/min]	24	30	34,5	42	48	60	69
Nominal pressure pN	[bar]	350	350	350	350	350	350	350
Min. outlet pressure	[bar]	15	15	15	15	15	15	15
Max. pressure pmax at 20% working cycle1)	[bar]	420	420	420	420	420	420	420
Case drain pressure, continuous	[bar]	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Case drain pressure, max. peak	[bar]	2	2	2	2	2	2	2
Min. Inlet pressure, abs.	[bar]	0.8	0.8	0.8	0.8	0.8	0.8	0.8
Max. Inlet pressure	[bar]	16	16	16	16	16	16	16
Input power at 1500 rpm and 350 bar	[kW]	15.5	19.5	22.5	27.5	31	39	45
Max speed at 1 bar, abs, inlet pressure	[rpm]	3000	3000	3000	3000	2800	2800	2800
Min. speed	[rpm]	400	400	400	400	400	400	400
Moment of inertia	[kgm2]	0.0017	0.0017	0.0017	0.0017	0.0043	0.0043	0.0043
Weight	[kg]	19	19	19	19	30	30	30

		PV063	PV080	PV092	PV140	PV180	PV270	PV360
Frame size		3	3	3	4	4	5	6
Max. Displacement	[cm3/rev.]	63	80	92	140	180	270	360
Output flow at 1500 rpm	[l/min]	94.5	120	138	210	270	405	540
Nominal pressure pN	[bar]	350	350	350	350	350	350	350
Min. outlet pressure	[bar]	15	15	15	15	15	15	15
Max. pressure pmax at 20% working cycle1)	[bar]	420	420	420	420	420	420	420
Case drain pressure, continuous	[bar]	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Case drain pressure, max. peak	[bar]	2	2	2	2	2	2	2
Min. Inlet pressure, abs.	[bar]	0.8	0.8	0.8	0.8	0.8	0.8	0.8
Max. Inlet pressure	[bar]	16	16	16	16	16	16	16
Input power at 1500 rpm and 350 bar	[kW]	61.5	78	89.5	136	175	263	350
Max speed at 1 bar, abs, inlet pressure	[rpm]	2800	2500	2300	2400	2200	1800	1750
Min. speed	[rpm]	400	400	400	400	400	400	400
Moment of inertia	[kgm2]	0.018	0.018	0.018	0.03	0.03	0.098	0.103
Weight	[kg]	59	59	59	90	90	172	180
