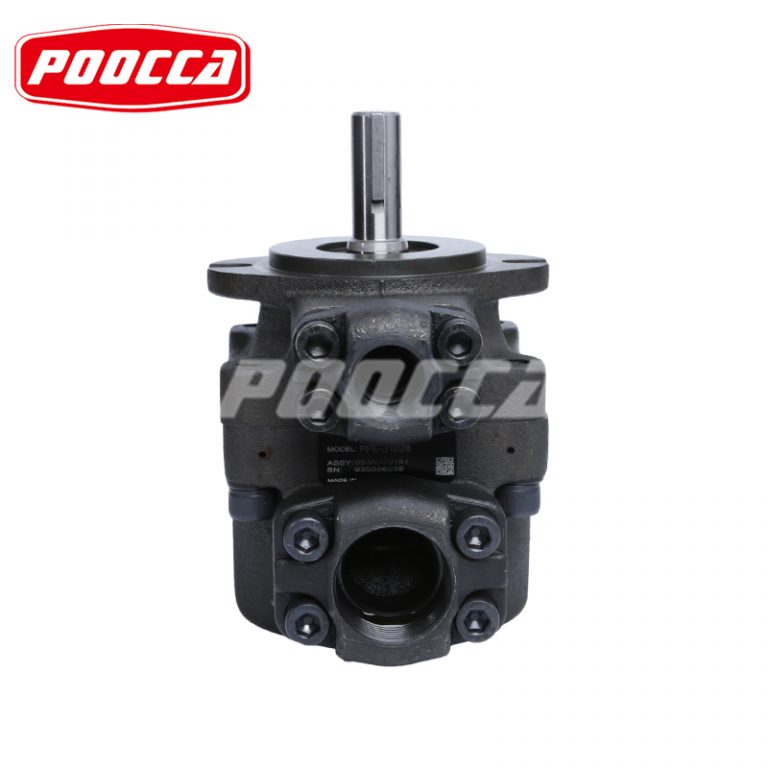

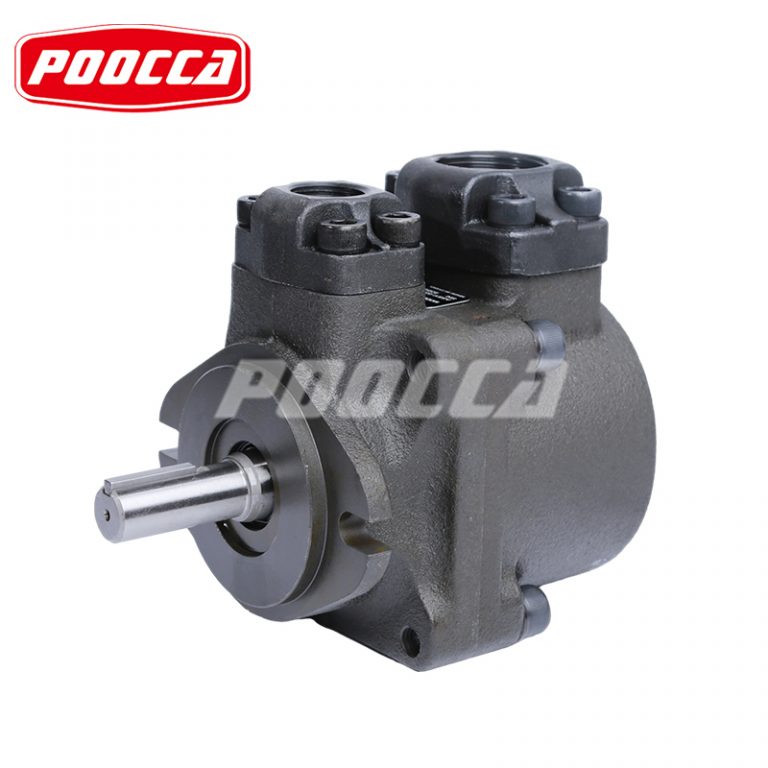

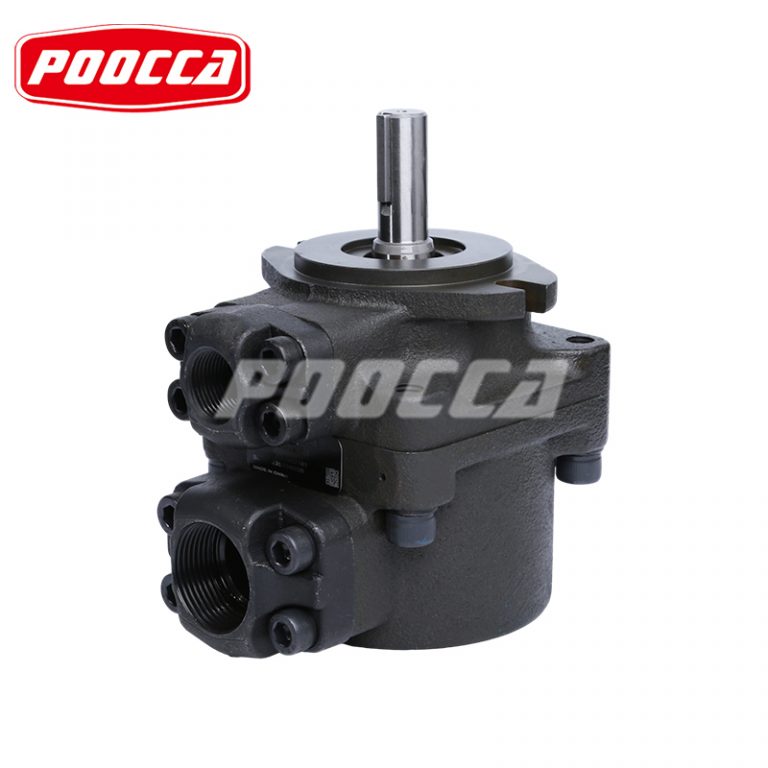

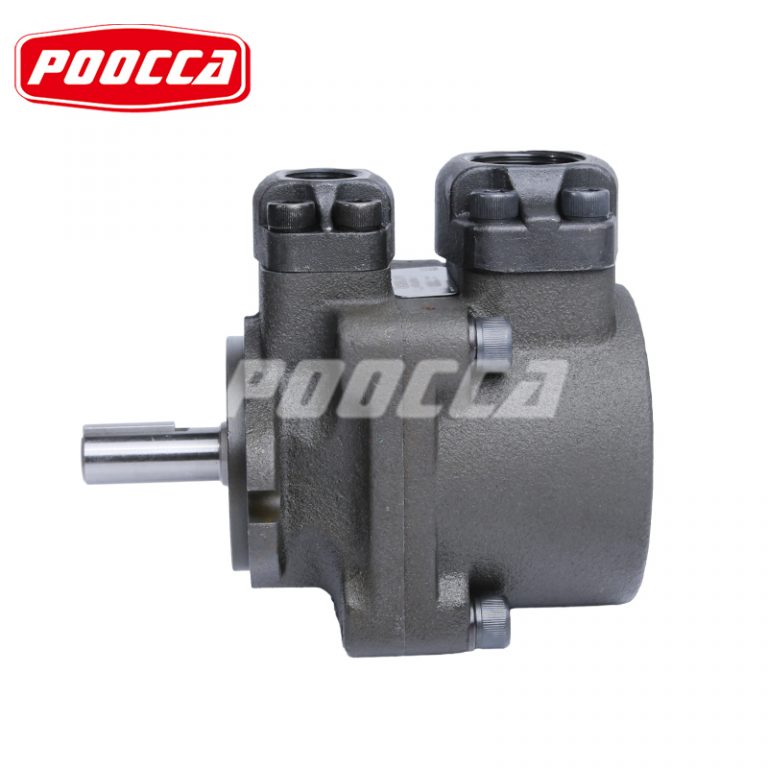

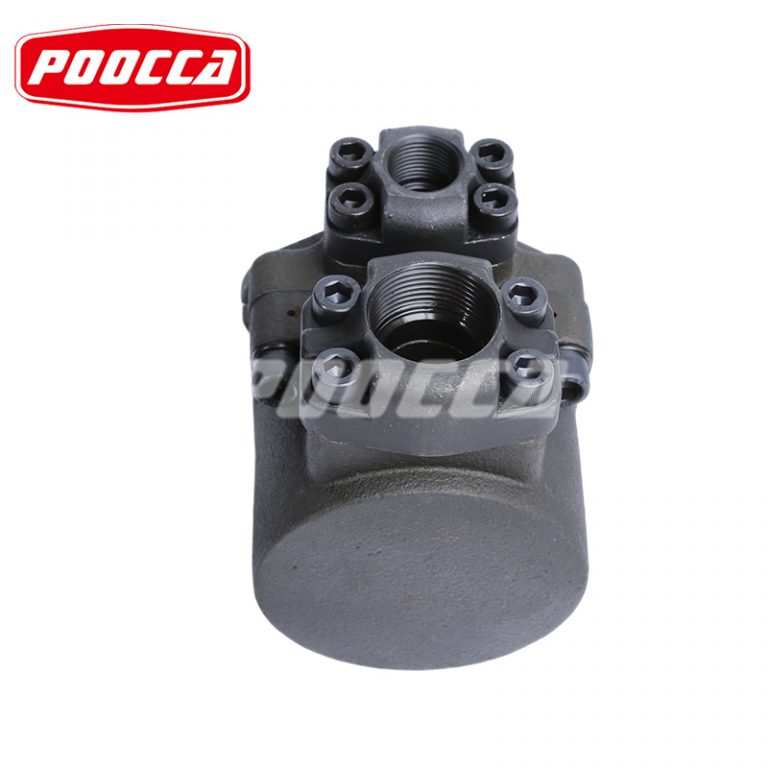

Atos PFE Vane Pumps PFE-31 PFE-41 PFE-51

For specific models, please contact Poocca Hydraulic Manufacturer for consultation, we will provide you with a quotation and relevant specific information.

Chat Now

Characteristic

Atos PFE hydraulic vane pumps are available in three different sizes with maximum displacements of 44, 85 and 150 cm³/rev and in single-shaft, multi-shaft or through-shaft configurations.
Mounting flanges comply with SAE J744.
Inlet and outlet ports can be adjusted to four different positions to suit any installation requirement.
PFE vane pump elements are easy to replace for simpler maintenance.
Maximum pressure 210 bar.

Parameter

Model	Displacement cm3/rev	Max pressure (1)	Speed range rpm (2)	7 bar (3) l/min kW	70 bar (3) l/min kW	140 bar (3) l/min kW	210 bar (3) l/min kW
PFE-31010	10,5	160	800-2400	15 0,2	13,5 2	12 5	– –
PFE-31016	16,5	210 bar	800-2800	23 0,5	21 3	19 5	16 8,3
PFE-31022	21,6			30 0,6	28 4	26 7	23 10,8
PFE-31028	28,1			40 0,8	38 5,5	36 10	33 14
PFE-31036	35,6			51 1	49 7	46 12,5	43 17,8
PFE-31044	43,7		800-2500	63 1,3	61 8	58 15,5	55 22
PFE-41029	29,3			41 0,8	39 5,5	37 10	34 14,7
PFE-41037	36,6			52 1	50 7	48 12,5	45 18,3
PFE-41045	45,0			64 1,3	62 8,5	60 16	57 22,6
PFE-41056	55,8			80 1,6	78 11	75 21	72 28
PFE-41070	69,9			101 2	98 13,5	95 26	91 35
PFE-41085	85,3		800-2000	124 2,4	121 16	118 32	114 43
PFE-51090	90,0		800-2200	128 2,7	124 17	119 33	114 45
PFE-51110	109,6			157 3,2	152 21	147 40	141 55
PFE-51129	129,2			186 3,7	180 25	174 47	168 65
PFE-51150	150,2		800-1800	215 4,2	211 29	204 55	197 75

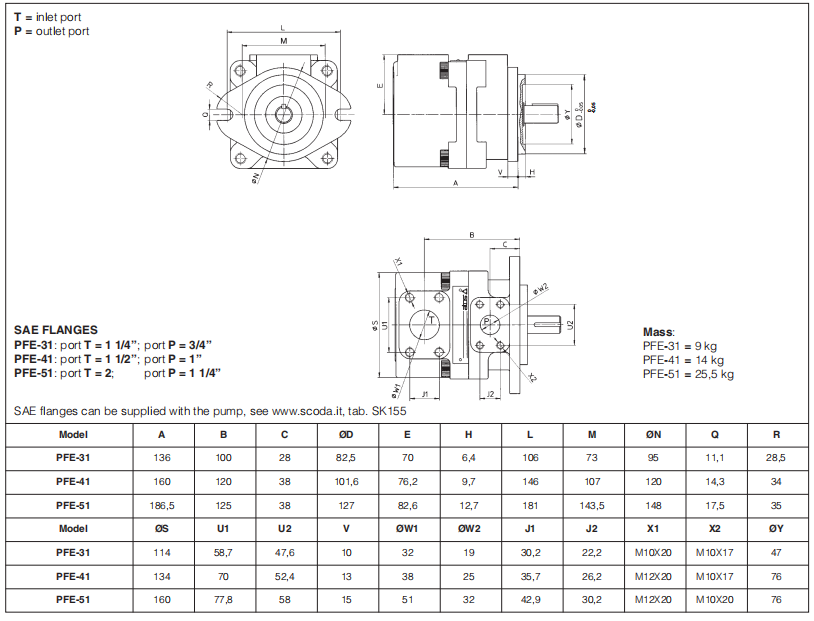

Dimension

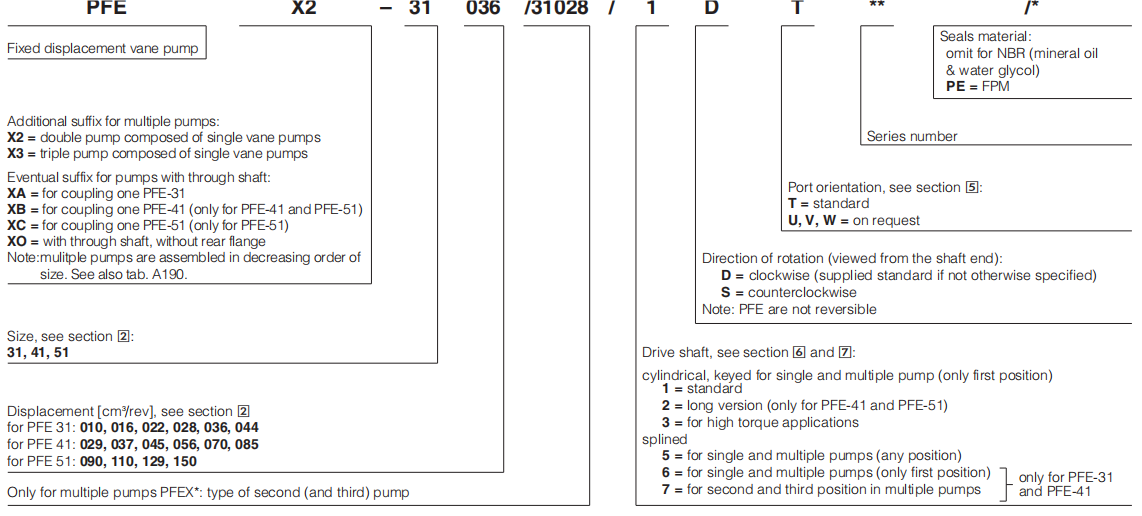

Order Code

Custom Made

At Poocca, customization is at the heart of what we do. From custom model specifications to personalized logos and packaging, we offer a full range of customization options to meet your unique needs. Our team of professionals work closely with you to experience Poocca customization.

Customer Feedback

Poocca is a leading hydraulic manufacturer with over 20 years of industry expertise. With stable partnerships in multiple countries, we have won unanimous praise for our competitive prices and excellent quality. Our commitment to excellence ensures customers around the world trust us to meet their hydraulic needs. Whether it’s reliability, performance or innovation, Poocca delivers reliable solutions that exceed expectations. Choose Poocca for hydraulic solutions you can trust.

Poocca Exhibition

Atos PFE Vane Pumps PFE-31 PFE-41 PFE-51

Atos PFE hydraulic vane pumps are fixed displacement. PFE Size, see section:31, 41, 51 Displacement range [cm3/rev]: for PFE 31: 010, 016, 022, 028, 036, 044 for PFE 41: 029, 037, 045, 056, 070, 085 for PFE 51: 090, 110, 129, 150 For specific models, please contact Poocca Hydraulic Manufacturer for consultation, we will provide you with a quotation and relevant specific information.

Chat Now

Characteristic

Parameter

Model	Displacement cm3/rev	Max pressure (1)	Speed range rpm (2)	7 bar (3) l/min kW	70 bar (3) l/min kW	140 bar (3) l/min kW	210 bar (3) l/min kW
PFE-31010	10,5	160	800-2400	15 0,2	13,5 2	12 5	– –
PFE-31016	16,5	210 bar	800-2800	23 0,5	21 3	19 5	16 8,3
PFE-31022	21,6			30 0,6	28 4	26 7	23 10,8
PFE-31028	28,1			40 0,8	38 5,5	36 10	33 14
PFE-31036	35,6			51 1	49 7	46 12,5	43 17,8
PFE-31044	43,7		800-2500	63 1,3	61 8	58 15,5	55 22
PFE-41029	29,3			41 0,8	39 5,5	37 10	34 14,7
PFE-41037	36,6			52 1	50 7	48 12,5	45 18,3
PFE-41045	45,0			64 1,3	62 8,5	60 16	57 22,6
PFE-41056	55,8			80 1,6	78 11	75 21	72 28
PFE-41070	69,9			101 2	98 13,5	95 26	91 35
PFE-41085	85,3		800-2000	124 2,4	121 16	118 32	114 43
PFE-51090	90,0		800-2200	128 2,7	124 17	119 33	114 45
PFE-51110	109,6			157 3,2	152 21	147 40	141 55
PFE-51129	129,2			186 3,7	180 25	174 47	168 65
PFE-51150	150,2		800-1800	215 4,2	211 29	204 55	197 75
