| Code | Displacement(mL/r) | Speed (r/min) |
Input Power kw |
Pressure (MPa) |
Weight (Kg) |
| YB1-2.5 | 2.5 | 1500 | 0.7 | 6.3 | 5.5 |
| YB1-4 | 4 | 1 | |||
| YB1-6.3 | 6.3 | 1.3 | |||
| YB1-10 | 10 | 2 | |||
| YB1-12.5 | 12.5 | 1000 | 1.7 | 9.5 | |
| YB1-16 | 16 | 2.1 | |||
| YB1-20 | 20 | 2.5 | |||
| YB1-25 | 25 | 3.1 | |||
| YB1-31.5 | 31.5 | 4.2 | 16 | ||
| YB1-40 | 40 | 5.3 | |||
| YB1-50 | 50 | 6.3 | |||
| YB1-63 | 63 | 8.2 | 22 | ||
| YB1-80 | 80 | 10 | |||
| YB1-100 | 100 | 12.4 |

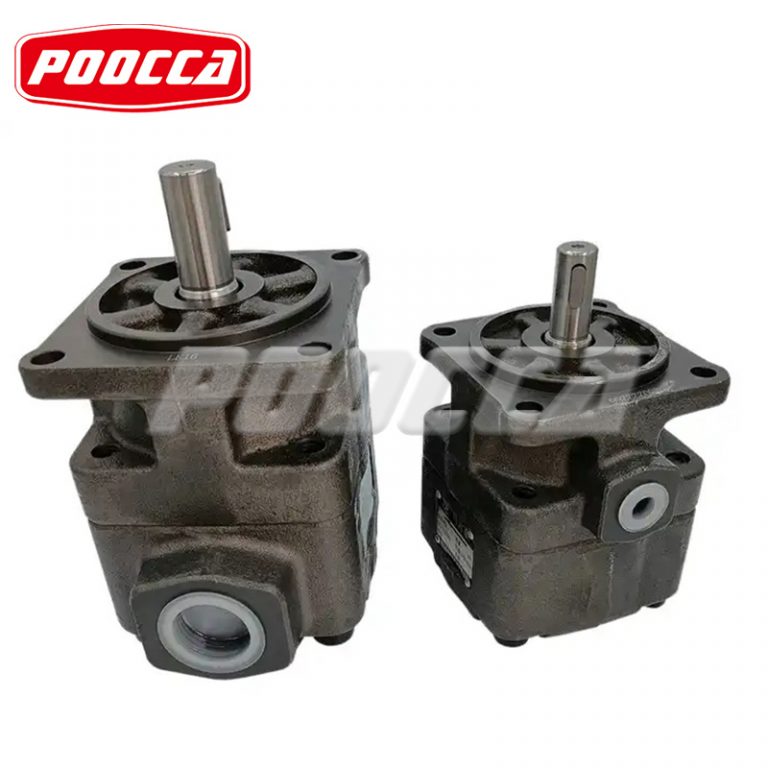

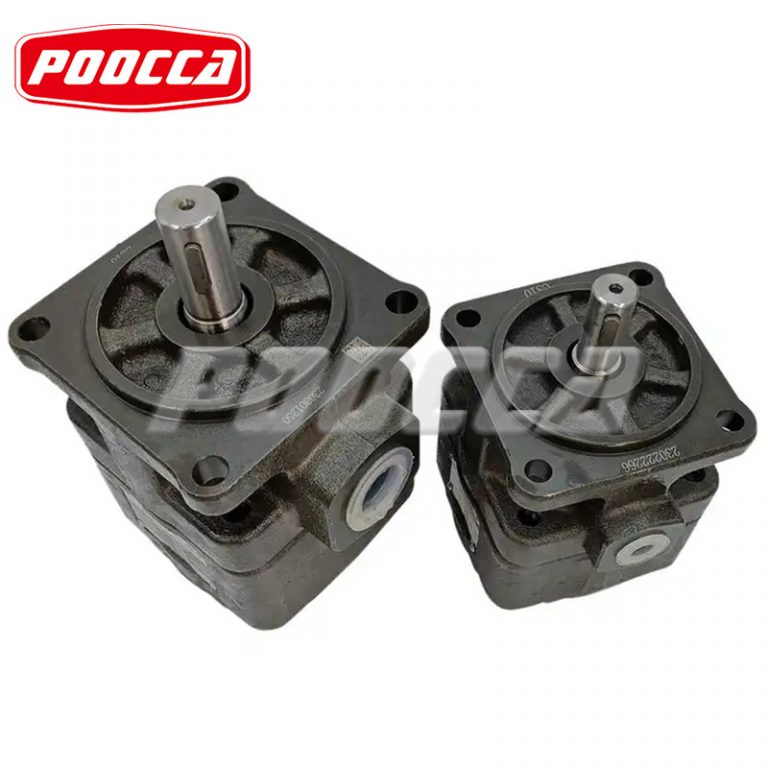

YB1 series medium pressure vane pump is a modified product of YB pump, suitable for medium pressure hydraulic system. It is widely used in hydraulic systems of machine tools, automation, industrial machinery, transportation machinery, clothing machinery and various pressure machines.
| Code | Displacement(mL/r) | Speed (r/min) |
Input Power kw |
Pressure (MPa) |
Weight (Kg) |
| YB1-2.5 | 2.5 | 1500 | 0.7 | 6.3 | 5.5 |
| YB1-4 | 4 | 1 | |||
| YB1-6.3 | 6.3 | 1.3 | |||
| YB1-10 | 10 | 2 | |||
| YB1-12.5 | 12.5 | 1000 | 1.7 | 9.5 | |
| YB1-16 | 16 | 2.1 | |||
| YB1-20 | 20 | 2.5 | |||
| YB1-25 | 25 | 3.1 | |||
| YB1-31.5 | 31.5 | 4.2 | 16 | ||
| YB1-40 | 40 | 5.3 | |||
| YB1-50 | 50 | 6.3 | |||
| YB1-63 | 63 | 8.2 | 22 | ||
| YB1-80 | 80 | 10 | |||
| YB1-100 | 100 | 12.4 |
YB1 series medium pressure vane pump is a modified product of YB pump, suitable for medium pressure hydraulic system. It is widely used in hydraulic systems of machine tools, automation, industrial machinery, transportation machinery, clothing machinery and various pressure machines.
POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
