Brief Introduction of Vickers’ Vane Pump

Vickers vane pump counts as a well-known fixed-volume hydraulic pump. It handles steady fluid moves in factory hydraulic setups. Engineers built it under a known global hydraulic plan. It often joins machines that need even pressure send, smooth flow guide, and sure work under medium to high task loads. The build usually includes a rotor, stator, vanes, end cover, and oil share parts. These parts make shut spaces for fluid shift together.

The rotor turns off-center inside the stator in work. This makes vanes slide out and in from spin pull and fluid push. Such move causes growth and shrink of work spaces. It allows pull-in and push-out of hydraulic oil. The setup gives fairly small flow jerks. It boosts space use and steady power pass. This fits factory gear that needs exact hydraulic guide.

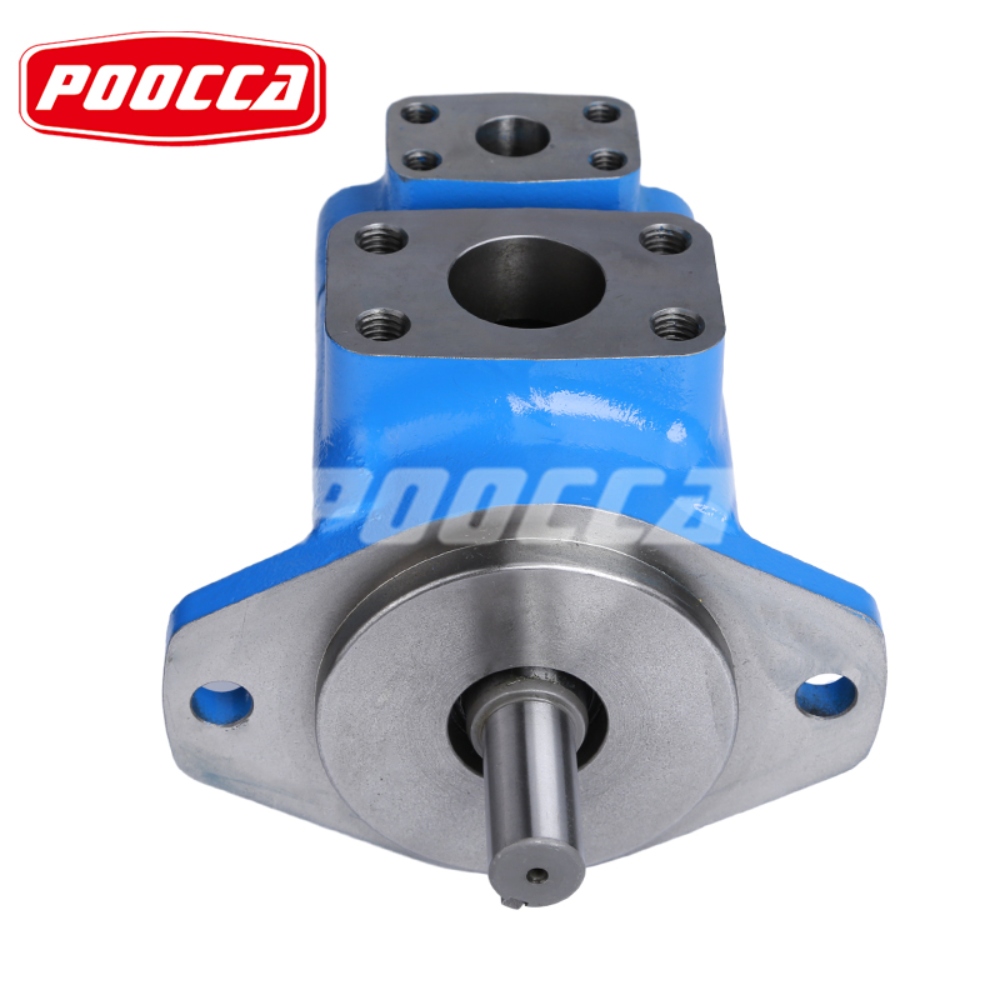

Vickers Single Vane Pump

The Vickers single vane pump has a rotor set inside a stator ring with off-center place. Vanes sit in rotor cuts. They can slide out free under spin pull and push. As the rotor turns, shut spaces form between close vanes, stator sides, and face plates. This lets fluid pull-in and push-out in an ongoing loop.

This kind works as a one-side hydraulic tool. It means one full oil pull-in and push-out loop happens per rotor turn. The fluid unbalance in work makes bigger load on bearings than even setups. Yet, shift change can come from fixing off-center space between rotor and stator. This lets changeable flow send in jobs like factory presses and move machine systems.

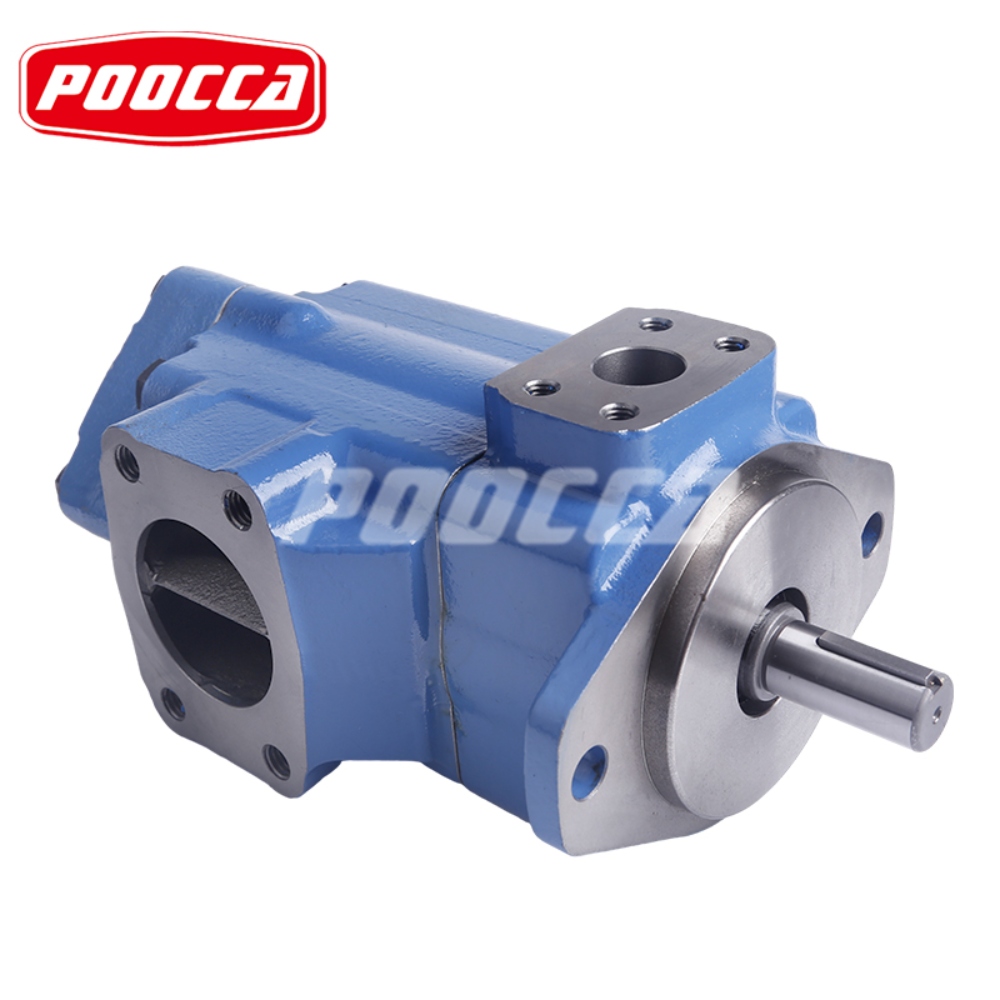

Vickers Double Vane Pump

The Vickers double vane pump uses a like machine rule. But its stator has two curves and shift lines. These make two pull-in and two push-out areas. The rotor sits center-match in the stator. This gives a fluid-even system. It cuts side pulls on bearings a lot.

In turns, two free work loops happen per rotor spin. This raises send use and betters flow steadiness. The even build cuts machine shakes. It boosts last time under ongoing task spots. This setup often goes in systems that need steady hydraulic send. Examples include exact make gear and high-work fluid power systems.

Management Points of Vane Pump

Good work guide for vane pumps centers on keeping hydraulic steadiness. It also stops odd work spots. One key thing is turn way check. Vane shape and hole match aim for a set way. Wrong turn can mess pull-in and push-out paths. This leads to system low use or inside harm.

Heat and thick control matter just as much. Hydraulic oil stays in a fair thick range for a rule. This makes sure right lube and seal. Too high thick can make bad pull-in work. Low thick can raise inside leaks. Work heat stays under 55°C for most. This keeps fluid steady. It stops seal drop in work spaces.

Vane Pump Assembly

Vane pump build needs exact line-up of parts like rotor, stator, vanes, and place pins. Right set-up makes sure good seal of work spaces. It also gives steady hydraulic work. The stator pull-in and push-out spots must face true. This avoids work unbalance.

In build, vane move in rotor cuts must stay smooth. It should have no too-much gap. Wrong fit can lead to low space use or shaky pressure send. In many factory plans, turn-back set-up works by fixing part face. This lets bend pull-in and push-out areas based on system needs.

Vane Pump Disassembly

Take-apart steps need a clean work spot. This stops dirt on exact hydraulic sides. Inside parts like vanes and rotor cuts feel harm from bits. Such dirt can hurt seal work and task use a lot.

Close check of vane gap matters in take-apart. Too much wear raises inside leaks. Too tight fit may block vane move. It can mess normal fluid loops. Right hold makes sure key work stats like space use stay in good task limits after put-back.

Commonly Used Models

Vickers vane pumps come in many lines. These fit different flow and push needs. Common one-pump kinds include V10, V20, V2010, and V2020. They often go in small hydraulic systems. These need fair shift send.

Other much-used plans include VQ line kinds like 20VQ, 25VQ, 35VQ, and 45VQ. These aim for better work and wider factory use. Two-pump kinds like 2520V, 3520V, 3525V, 4520V, 4525V, and 4535V see pick for systems. They need two fluid paths or more joined flow hold in a small set space.

Advantages of Vickers Vane Pump

Vickers vane pump setups give many build gains. These make them fit wide in hydraulic machines. One main plus is small build shape with high work push skill. This lets strong power pack and good space use in factory places.

Another big plus is cut sound from vane move in stator ring. Smooth fluid shifts cut flow jerks. This brings better sound work and more ease in work spots. Plus, fluid even setup in some kinds cuts side load on bearings. It grows machine last time under ongoing work.

The part build of move tools lets easy keep steps. It cuts system stop time. Bend plan picks, like one and two pump joins through shaft drives, give fit for hard fluid path plans. High space use makes sure steady power shift over change load spots. This backs even system work in factory jobs.

FAQ

1. What is the main working principle of a vane pump?

A vane pump works by turning vanes in a stator ring. These form shut spaces that grow and shrink. They move hydraulic fluid from entry to exit.

2. What is the difference between single and double vane pumps?

Single vane pumps finish one pull-in and push-out loop per turn. Double vane pumps finish two loops per turn. This gives higher use and better even.

3. Why is hydraulic oil viscosity important in vane pumps?

Thick affects lube and seal. Wrong thick can cause leaks, bad pull-in, or too much inside rub. This cuts full pump use.

4. Where are vane pumps commonly applied?

Vane pumps go wide in factory hydraulic systems. Examples include shot mold machines, build gear, die-cast tools, and goods move systems.

Hydraulic Vane Pump Manufacturer and Supplier Solutions

Sure hydraulic work rests on exact-built vane pump setups. These aim for steady flow send and long task life. Factory jobs that need even push guide and good hydraulic pass gain from pro-made pump answers and tech-backed supply lines.

Full hydraulic pump make skills, tight grade check steps, and joined make systems make sure vane pump goods meet hard factory rules over many job fields. World send back and tech fit picks give bend answers for hard hydraulic needs.

As a hydraulic pump manufacturer, supplier, and factory focused on vane pump systems and hydraulic parts, POOCCA gives built answers aimed for factory sure, exact work, and even hydraulic use over world machine jobs. Contact POOCCA today.
