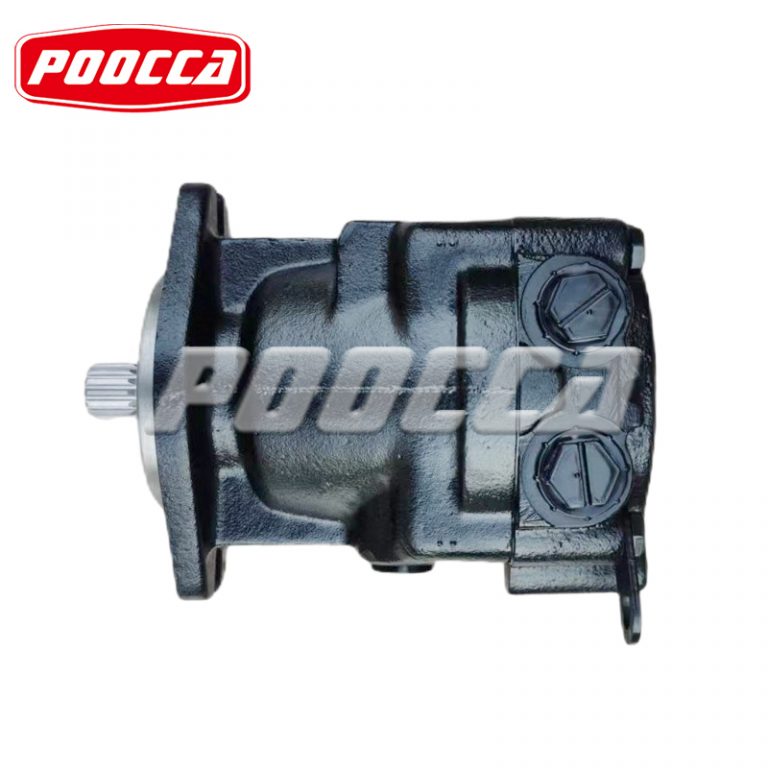

Our Poocca Hydraulic manufacturer MMF axial piston motors have excellent performance parameters and are suitable for high-efficiency, high-speed hydraulic systems.
MMF hydraulic motors have a nominal displacement of 25, 35, 44, and 46 cm³/rev, a rated pressure range of 34.5 to 38 MPa, and a maximum pressure of 38.5 to 41.5 MPa.
The rated speed of Danfoss MMF motors is 3300 to 4000 r/min, and the speed range can cover 3300 to 5300 r/min, which can meet the needs of various high-load and continuous operation conditions, and is stable and reliable.
| Model | Unit | M35 MF | M44 MF | M35MV | M44MV | M46 MV | |
| Model configuration | Fixed | Fixed | Variable | Variable | Variable | ||
| Displacement | cm3/rev [in3/rev] | 35 [2.14] | 44 [2.65] | 35 [2.14] | 44 [2.65] | 46 [2.80] | |
| Weight | kg [lbf] | 11 [26] | 11 [26] | 21 [47] | 21 [47] | 23 [51] | |
| Mass moment of inertia | kg•m2 [slug•ft2] | 0.0033 | 0.0032 | 0.0033 | 0.0032 | 0.005 | |
| [0.0024] | [0.0023] | [0.0024] | [0.0023] | [0.0037] | |||
| Rated @ min. disp. | – | – | 4200 | 3900 | 4500 | ||
| Maximum @ min. disp. | – | – | 5300 | 4850 | 5000 | ||
| System pressure | Nominal pressure | bar [psi] | 380 | 345 | 380 | 345 | 345 |
| [5511] | [5000] | [5511] | [5000] | [5000] | |||
| Maximum pressure | bar [psi] | 415 | 415 | 415 | 415 | 385 | |
| [6019] | [6019] | [6019] | [6019] | [5584] | |||
| Case pressure | Maximum working | bar [psi] | 1.7 [25] | 1.7 [25] | 1.7 [25] | 1.7 [25] | 1.7 [25] |
| Maximum | bar [psi] | 5.2 [75] | 5.2 [75] | 5.2 [75] | 5.2 [75] | 5.2 [75] | |
| Speed limits | Rated @ max | min-1[rpm] | 3600 | 3300 | 3600 | 3300 | 4000 |
| disp. | |||||||
| Maximum @ max. disp | min-1[rpm] | 4500 | 4100 | 4500 | 4100 | 4100 | |
| Type of mounting | SAE B | SAE B | SAE B | SAE B | SAE B | ||
| Port connections | Side, Twin, | Side, Twin, | Twin | Twin | Side, Twin, | ||
| Axial | Axial | Axial | |||||
| Output shaft options | Splined, Tapered, Straight Key | Splined, Tapered, Straight Key | Splined | Splined | Splined, Tapered | ||
| Control options | – | – | DDC | DDC | Hyd. 2-pos. | ||
| Loop flushing | Option | Option | Option | Option | Option | ||
| Displacement limiters | – | – | Option | Option | Option | ||
Our Poocca Hydraulic manufacturer MMF axial piston motors have excellent performance parameters and are suitable for high-efficiency, high-speed hydraulic systems.
MMF hydraulic motors have a nominal displacement of 25, 35, 44, and 46 cm³/rev, a rated pressure range of 34.5 to 38 MPa, and a maximum pressure of 38.5 to 41.5 MPa.
The rated speed of Danfoss MMF motors is 3300 to 4000 r/min, and the speed range can cover 3300 to 5300 r/min, which can meet the needs of various high-load and continuous operation conditions, and is stable and reliable.
| Model | Unit | M35 MF | M44 MF | M35MV | M44MV | M46 MV | |
| Model configuration | Fixed | Fixed | Variable | Variable | Variable | ||
| Displacement | cm3/rev [in3/rev] | 35 [2.14] | 44 [2.65] | 35 [2.14] | 44 [2.65] | 46 [2.80] | |
| Weight | kg [lbf] | 11 [26] | 11 [26] | 21 [47] | 21 [47] | 23 [51] | |
| Mass moment of inertia | kg•m2 [slug•ft2] | 0.0033 | 0.0032 | 0.0033 | 0.0032 | 0.005 | |
| [0.0024] | [0.0023] | [0.0024] | [0.0023] | [0.0037] | |||
| Rated @ min. disp. | – | – | 4200 | 3900 | 4500 | ||
| Maximum @ min. disp. | – | – | 5300 | 4850 | 5000 | ||
| System pressure | Nominal pressure | bar [psi] | 380 | 345 | 380 | 345 | 345 |
| [5511] | [5000] | [5511] | [5000] | [5000] | |||
| Maximum pressure | bar [psi] | 415 | 415 | 415 | 415 | 385 | |
| [6019] | [6019] | [6019] | [6019] | [5584] | |||
| Case pressure | Maximum working | bar [psi] | 1.7 [25] | 1.7 [25] | 1.7 [25] | 1.7 [25] | 1.7 [25] |
| Maximum | bar [psi] | 5.2 [75] | 5.2 [75] | 5.2 [75] | 5.2 [75] | 5.2 [75] | |
| Speed limits | Rated @ max | min-1[rpm] | 3600 | 3300 | 3600 | 3300 | 4000 |
| disp. | |||||||
| Maximum @ max. disp | min-1[rpm] | 4500 | 4100 | 4500 | 4100 | 4100 | |
| Type of mounting | SAE B | SAE B | SAE B | SAE B | SAE B | ||
| Port connections | Side, Twin, | Side, Twin, | Twin | Twin | Side, Twin, | ||
| Axial | Axial | Axial | |||||
| Output shaft options | Splined, Tapered, Straight Key | Splined, Tapered, Straight Key | Splined | Splined | Splined, Tapered | ||
| Control options | – | – | DDC | DDC | Hyd. 2-pos. | ||
| Loop flushing | Option | Option | Option | Option | Option | ||
| Displacement limiters | – | – | Option | Option | Option | ||
POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
