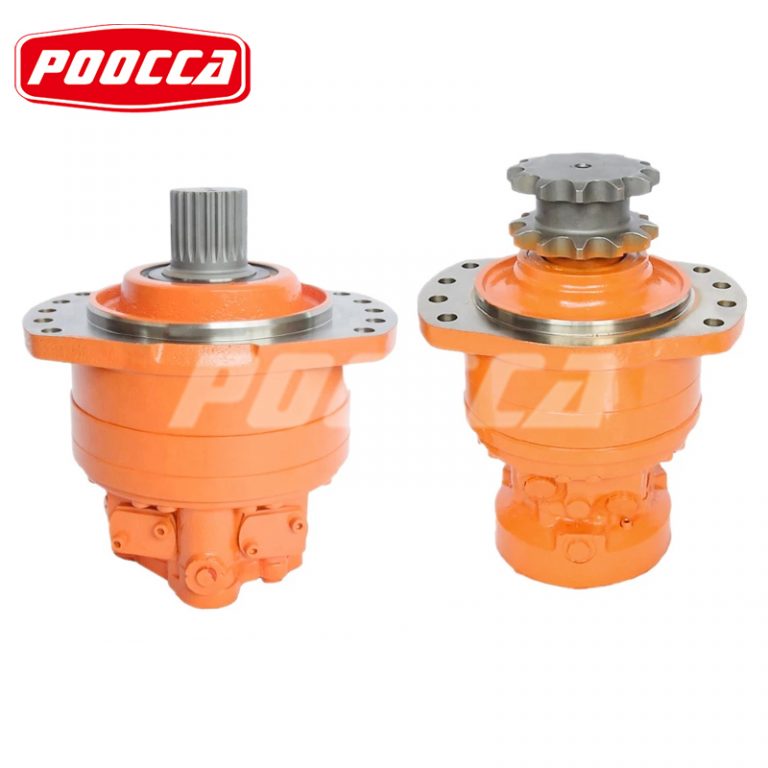

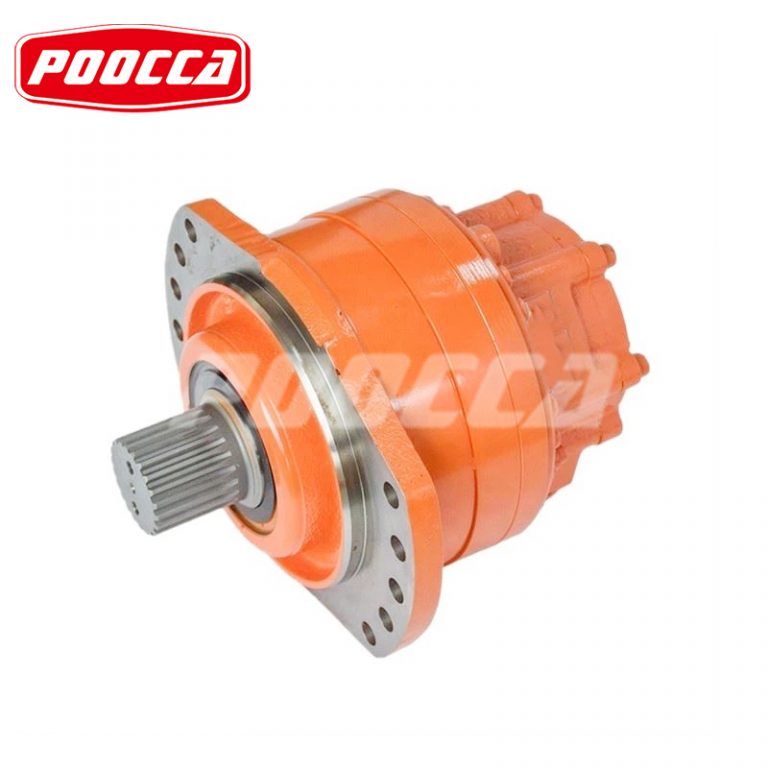

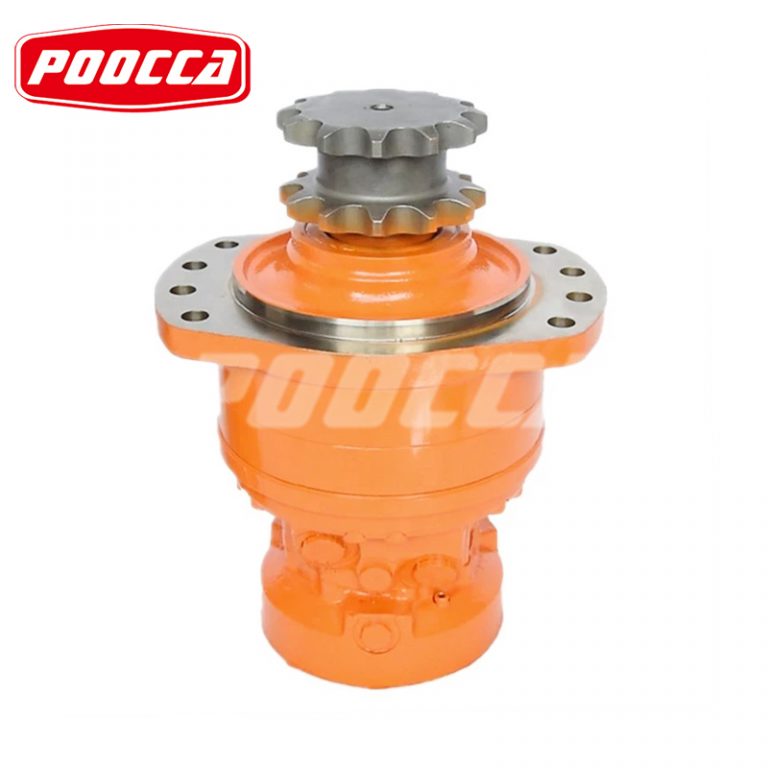

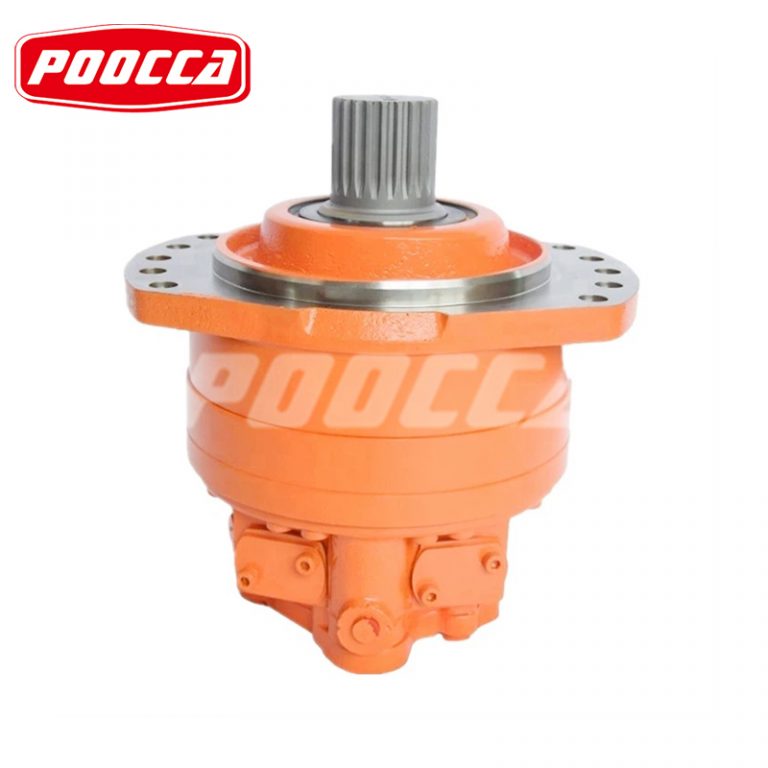

Poclain MS MSE Hydraulic Motor

Poclain MS MSE Hydraulic Motor Max. (Nm at 100 bar):23850
Max. (kW):240
MAX. DISPLACEMENT:15000 cc/rev
Maximum Pressure:450 bar
Max. (RPM):590

Chat Now

Characteristic

maximum productivity
Poclain MS MSE hydraulic motor increases machine performance without affecting consumption.
Thanks to their new design, the motors of the MS MSE HighFlowTM series achieve maximum speed without additional voltage drop. In this way, they guarantee higher productivity of the machine.

minimum consumption
Reduce machine consumption without affecting machine performance.
Motors from the MS MSE HighFlowTM range help lower the machine’s “total cost of ownership” by reducing fuel consumption.

Parameter

		Full displacement(1)				Reduced displacement(2)
MS Motor MSE Motor	Max.	Displacement range	Max.	Max. Speed(4)(5) RPM	Max. Power kW [HP]	Displacement	Max. Torque(3)	Max. Speed(4) RPM	Max. Power kW [HP]
	Pressure	cm3/rev [cu.in/rev]	Torque***(3)			range	N.m [lbf.ft]
	bar [PSI]		N.m [lbf.ft]			cm3/rev [cu.in/rev]
MS02	450 [6526]	172 – 255	1 800	590	18	86 – 128	916	590	12
MS02	450 [6526]	[10.5] – [15.6]	[1227]		[24]	[5.2] – [7.8]	[676]		[16]
MSE02	400	332 – 398	2 500	265	22	166 – 199	1 260	340	16,5
MSE02	[5800]	[20.2] – [24.3]	[1843]		[29.5]	[10.1] – [12.1]	[930]		[22]
MSE03	350	450 – 500	2 780	155	22	225 – 250	1 390	183	16,5
MSE03	[5080]	[27.4] – [30.5]	[2050]		[30]	[13.7] – [15.2]	[1025]		[22]
MS05	450	260 – 560	4 000	265	29	130 – 280	2 000	265	19
MS05	[6526]	[15.9] – [34.2]	[2950]		[39]	[7.9] – [17.1]	[1475]		[25]
MSE05	400	503 – 750	4 770	200	29	251 – 375	2 390	200	19
MSE05	[5800]	[30.7] – [45.7]	[3518]		[39]	[15.3] – [22.9]	[1762]		[25]
MS08	450	467 – 934	6 690	210	41	234 – 467	3 345	210	27
MS08	[6526]	[28.5] – [57.0]	[4934]		[55]	[14.2] – [28.5]	[2467]		[36]
MSE08	400	1 043 – 1 248	7 945	130	41	522 – 624	3 970	130	27
MSE08	[5800]	[63.6] – [76.1]	[5859]		[55]	[31.8] – [38.1]	[2928]		[36]
MS11	450	730 – 1 259	9 000	200	50	365 – 630	4 500	200	33
MS11	[6526]	[44.5] – [76.8]	[6638]		[67]	[22.3] – [38.4]	[3319]		[44]
MSE11	400	1 263 – 1 687	10 700	170	50	632 – 844	5 370	190	33
MSE11	[5800]	[77.0] – [102.9]	[7891]		[67]	[38.5] – [51.4]	[3960]		[44]
MS18	450	1 091 – 2 099	15 000	170	70	546 – 1 050	7 520	170	47
MS18	[6526]	[66.5] – [128]	[11063]		[94]	[33.3] – [64]	[5546]		[63]
MSE18	400	2 340 – 2 812	17 900	90	70	1 170 – 1 406	8 950	110	47
MSE18	[5800]	[142.8] – [171.6]	[13202]		[94]	[71.4] – [85.8]	[6601]		[63]
MS25	450	2 004- 3 006	21 500	145	90	1 002- 1 503	10 760	145	60
MS25	[6526]	[122.3] – [183.4]	[15857]		[121]	[61.1] – [91.7]	[7936]		[80]
MS35	450	2 439 – 4 198	30 000	140	110	1 220 – 2 099	15 000	140	73
MS35	[6526]	[148.8] – [256]	[22126]		[148]	[74.4] – [128]	[11063]		[98]
MS50	450	3 500 – 6 011	43 000	148	140	1 750 – 3 006	21 528	148	93
MS50	[6526]	[213.5] – [366.6]	[31715]		[188]	[106.7] – [183.3]	[15878]		[125]
MS83	450	6 679 – 10 019	71 755	65	200	3 340 – 5 010	35 880	87	135
MS83	[6526]	[407.4] – [611.1]	[52924]		[268]	[203.7] – [305.5]	[26464]		[181]
MS125	450	10 000 – 15 000	77 000	50	240	5 000 – 7 500	53 715	50	160
MS125	[6526]	[69] – [915]	[56 792]		[322]	[305] – [457.4]	[39618]		[215]

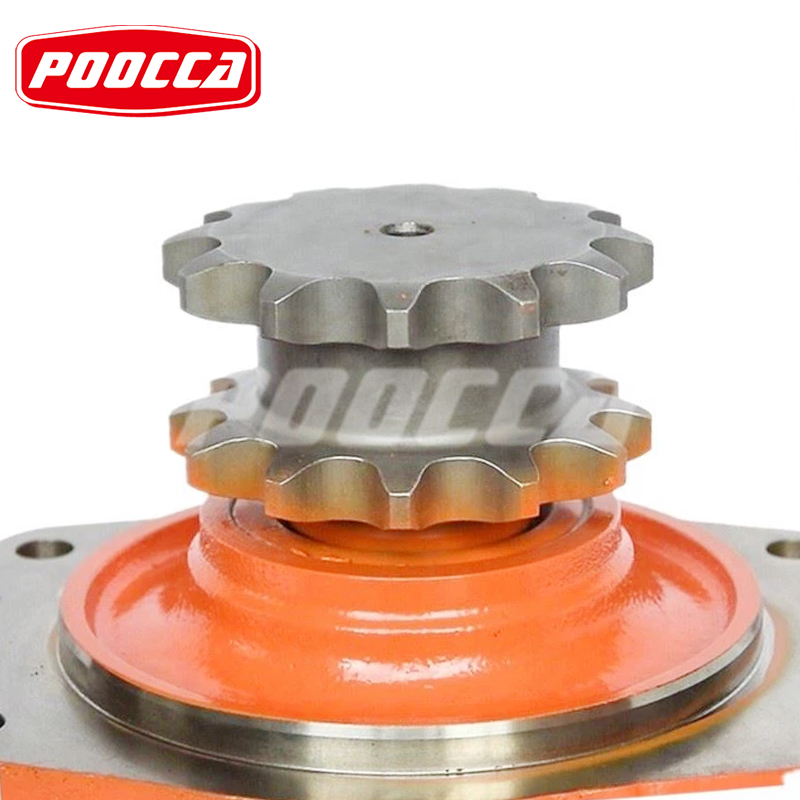

MS MSE Hydraulic Motor Detail image

Efficiency up to 90%,450 bar Maximum Pressure,High Power Density
