Sauer Danfoss OMR Motor

OMR motor size：36/50/80/100/125/160/200/250/315/400

For more danfoss motors, please send your request and we will contact you as soon as possible.

Chat Now

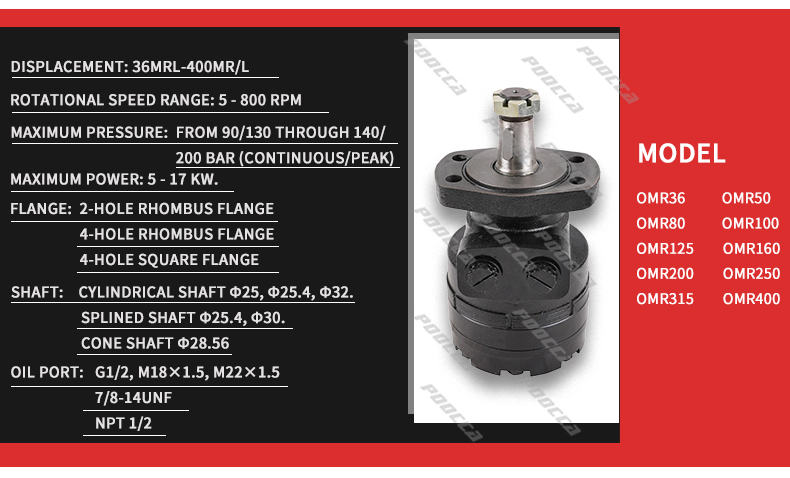

Characteristic

OMR36, OMR50, OMR80, OMR100, OMR125, OMR160, OMR200, OMR250, OMR315, OMR400

Displacement: 36mrL-400mr/L

Rotational speed range: 5 – 800 rpm;

Maximum pressure: from 90/130 through 140/200 bar (continuous/peak);

Maximum power: 5 – 17 kW.

Flange: 2-Hole rhombus Flange, 4-Hole rhombus Flange, 4-Hole Square Flange

Shaft: Cylindrical Shaft Φ25, Φ25.4, Φ32. Splined Shaft Φ25.4, Φ30. Cone Shaft Φ28.56

Oil port: G1/2, M18×1.5, M22×1.5, 7/8-14UNF, NPT 1/2

Parameter

Type			OMR	OMR	OMR	OMR	OMR	OMR	OMR	OMR	OMR
Motor size			50	80	100	125	160	200	250	315	375
Geometric displacement	cm3		51.6	80.3	99.8	125.7	159.6	199.8	249.3	315.7	372.6
Geometric displacement	[inch]		[3.16]	[4.91]	[6.11]	[7.69]	[9.77]	[12.23]	[15.26]	[19.32]	[22.80]
Max. speed	min-1	cont.	775	750	600	475	375	300	240	190	160
Max. speed	[rpm]	int.1)	970	940	750	600	470	375	300	240	200
Max. torque	N•m	cont.	100	195	240	300	300	300	300	300	300
	[lbf•in]	cont.	[890]	1730]	[2120]	[2660]	[2660]	[2660]	[2660]	[2660]	[2660]
		int.1)	130	220	280	340	390	390	380	420	430
		int.1)	[1150]	[1960]	[2480]	[3010]	[3450]	[3450]	[3360]	[3720]	[3810]
Max. output	kW	cont.	7	12.5	13	12.5	10	8	6	5	4
	[hp]	cont.	[9.4]	[16.8]	[17.4]	[16.8]	[13.4]	[10.7]	[8.1]	[6.7]	[5.4]
		int.1)	8.5	15	15	14.5	12.5	10	8	6.5	6
		int.1)	[11.4]	[20.1]	[20.1]	[19.4]	[16.8]	[13.4]	[10.7]	[8.7]	[8.1]
Max. pressure drop	bar	cont.	140	175	175	175	130	110	80	70	55
	[psi]	cont.	[2030]	[2540]	[2540]	[2540]	[1890]	[1600]	[1160]	[1020]	[800]
		int.1)	175	200	200	200	175	140	110	100	85
		int.1)	[2540]	[2900]	[2900]	[2900]	[2540]	[2030]	[1600]	[1450]	[1230]
		peak2)	225	225	225	225	225	225	200	150	130
		peak2)	[3260]	[3260]	[3260]	[3260]	[3260]	[3260]	[2900]	[2180]	[1890]
Max. oil flow	l/min	cont.	40	60	60	60	60	60	60	60	60
	[USgal/min]	cont.	[10.6]	[15.9]	[15.9]	[15.9]	[15.9]	[15.9]	[15.9]	[15.9]	[15.9]
		int.1)	50	75	75	75	75	75	75	75	75
		int.1)	[13.2]	[19.8]	[19.8]	[19.8]	[19.8]	[19.8]	[19.8]	[19.8]	[19.8]
Max. starting pressure with unloaded shaft	bar		10	10	10	9	7	5	5	5	5
Max. starting pressure with unloaded shaft	[psi]		[145]	[145]	[145]	[130]	[100]	[75]	[75]	[75]	[75]
Min starting torque	at max. press drop cont. N•m [lbf•in]		80	150	200	250	240	260	240	260	240
	at max. press drop cont. N•m [lbf•in]		[710]	[1330]	[1770]	[2210]	[2120]	[2300]	[2120]	[2300]	[2120]
	at max. press.drop int.1) N•m [lbf•in]		100	170	230	280	320	330	310	350	380
	at max. press.drop int.1) N•m [lbf•in]		[890]	[1510]	[2040]	[2480]	[2830]	[2920]	[2740]	[3100]	[3360]

Dimension

OMR Motor Application

The orbital motors are used in the following application areas:

Construction equipment
Agricultural equipment
Material handling & Lifting equipment
Forestry equipment
Lawn and turf equipment
Machine tools and stationary equipment
Marine equipment
Special purpose

About POOCCA

POOCCA Hydraulic (Shenzhen) Co., Ltd. was established in 1997. We are a comprehensive hydraulic service company specializing in the research and development, manufacturing, maintenance and sales of hydraulic products, pumps, motors, valves and related parts.

For two decades, POOCCAHydraulics has continued to grow and innovate in the field of hydraulics. We have won the trust of domestic and foreign manufacturers and established strong corporate partnerships. Our annual export volume is up to US$16 million and exported to more than 100 countries. We have established long-term and stable cooperative relationships with dealers in more than 75 countries including the United States, Indonesia, Mexico, Thailand, Russia, and Brazil.

Cooperated brands include Rexroth, Parker, Shimadzu, Vickers, Danfoss, Marzocchi, Yuken, Casappa and other brand hydraulic products.

At POOCCA, our strength is our dedicated team of over 300 professionals. Within this highly skilled workforce, we have a dynamic team of 70 sales professionals who possess vast experience and in-depth understanding of our industry.

FAQ

1.Q:How long has poocca been established?

A:POOCCA Hydraulic Manufacturer was established in 1997 and has 26 years of experience in the hydraulic industry.

2.Q:What are POOCCA’s main products?

A:We have as many as 1,600 product categories, mainly engaged in gear pumps, plunger pumps, vane pumps, motors, hydraulic accessories, hydraulic valves, etc.

3.Q:What is your product order lead time?

A:Our product order delivery times may vary based on the specific product and its availability.

Regular products take 5-7 days, special products depend on customization time and quantity.

4.Q:What is the warranty policy for your products?

A:12 months

5.Q:Where are your production facilities located? What is your production capacity?

A:Our factories are located in Guangdong, Jiangsu and Zhejiang. The annual export volume is as high as 16 million US dollars.

6.Q:What payment methods do you accept?

A:We accept a variety of payment methods including credit card, bank transfer, PayPal, and more.

For large orders, 30% can be paid in advance and the remaining 70% is paid before shipment.
