Models:28 – 33 -38 – 47 – 55 – 72 – 92* – 106*
Flanges:Group 1 – Group 2 (European, German, BKT, SAE-A) – Group 3 (European, SAE-B) – Group 4 (SAE-D)
Installation position:External and/or under oil
Shaft speed:From 150 to 6.500 rpm (for usage below 1.000 rpm or over 1.800 rpm please contact Settima)
Acoustic emissions:From 52 up to 63 db(A) at 2.950 rpm

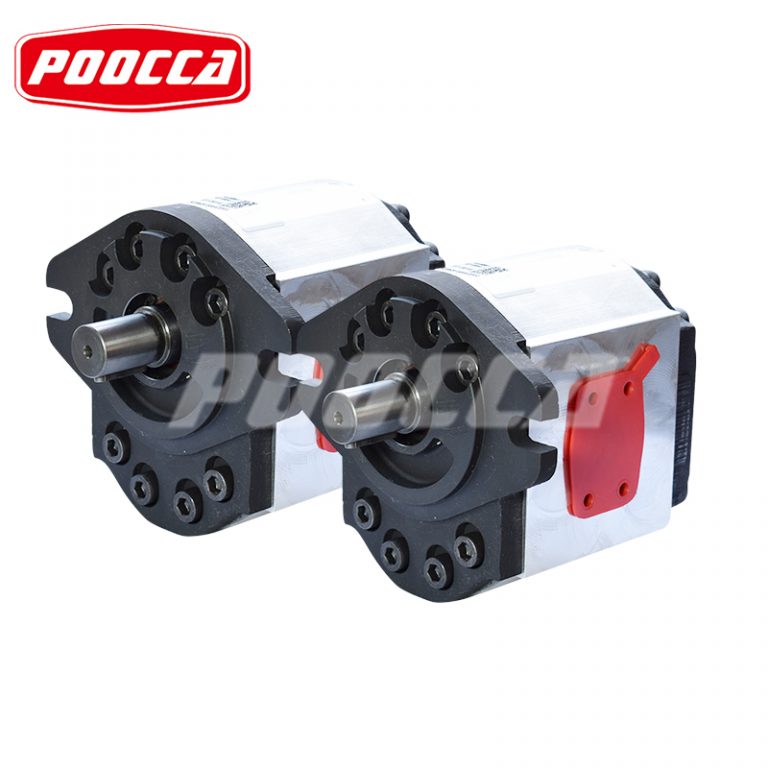

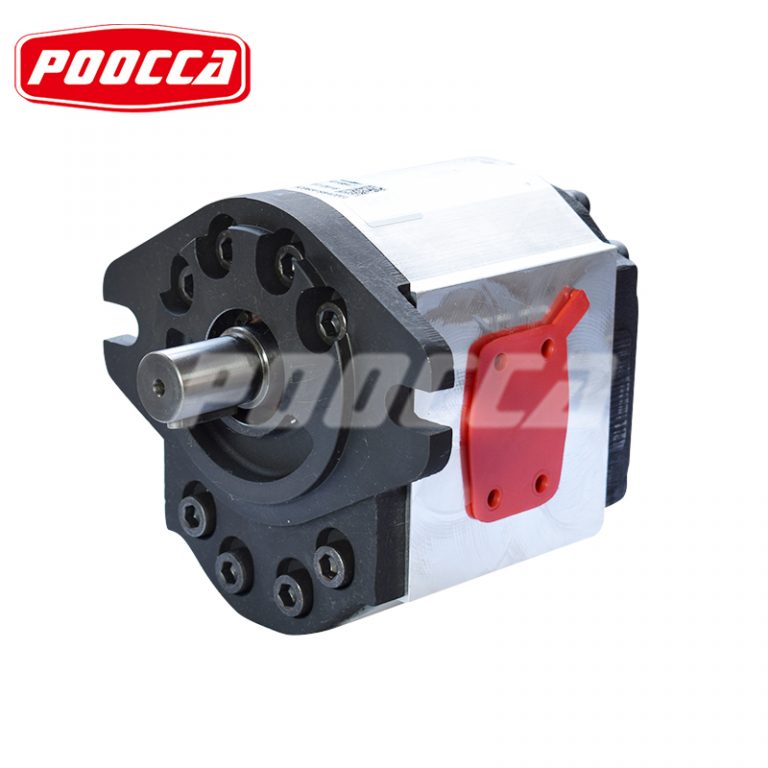

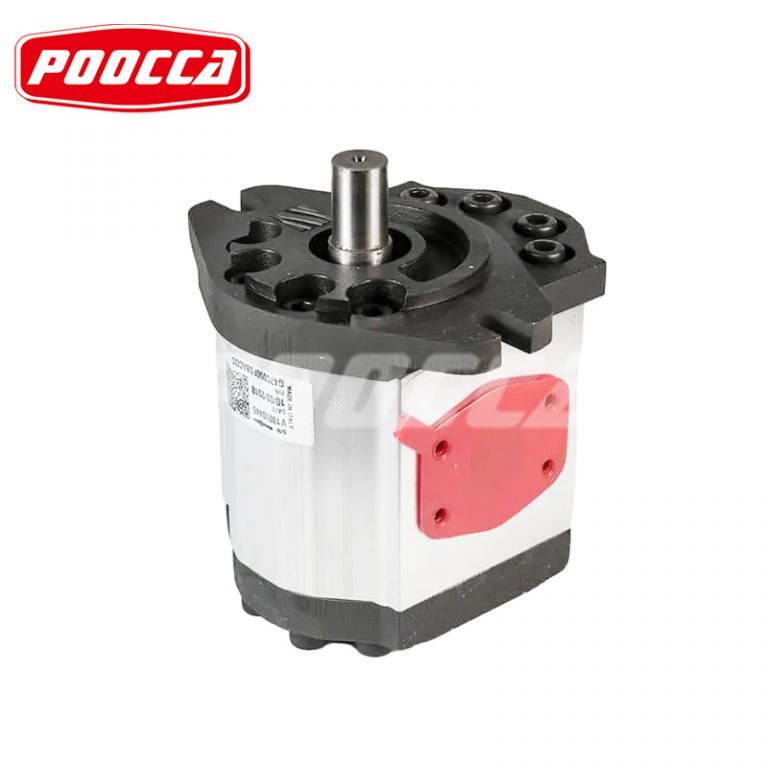

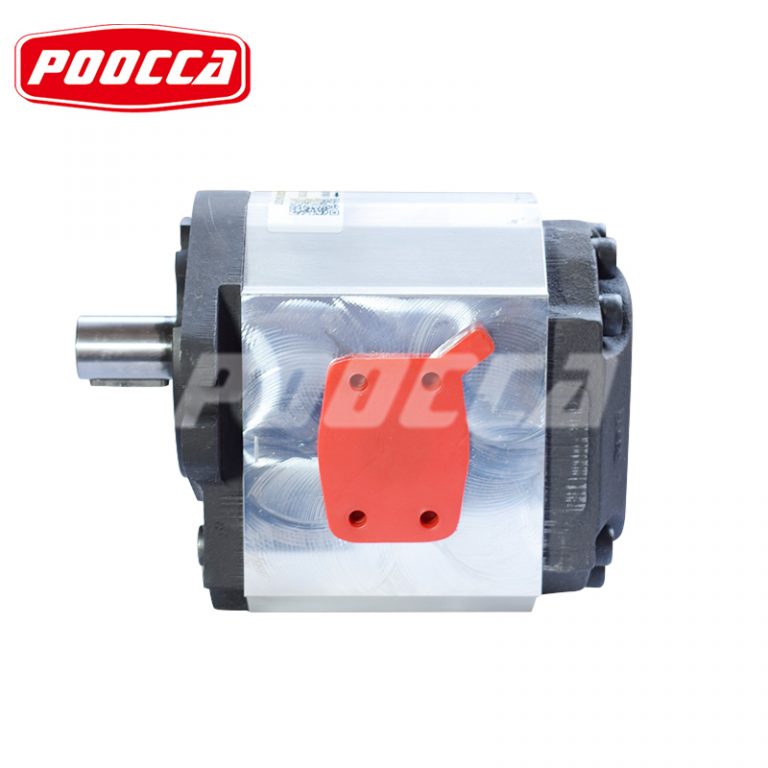

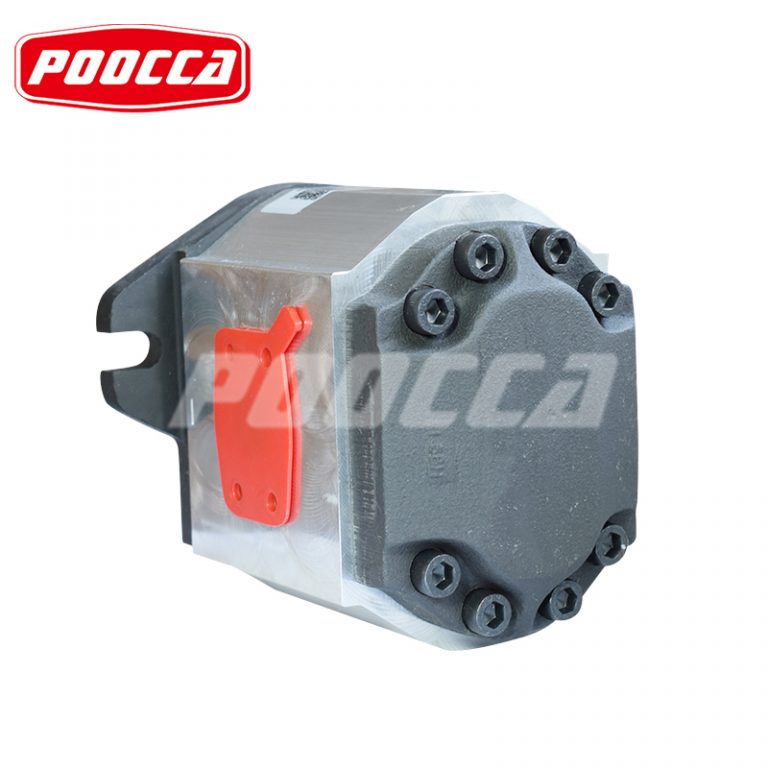

Settima GR Screw Pump High-pressure, noiseless helical rotor pump
| Type
Tipo |
Class Classe |
Displacement Cilindrata |
Flange & shaft
Flangia & albero |
Ports Porte |
Shaft seal
Guarnizione albero |
Rotation Rotazione |

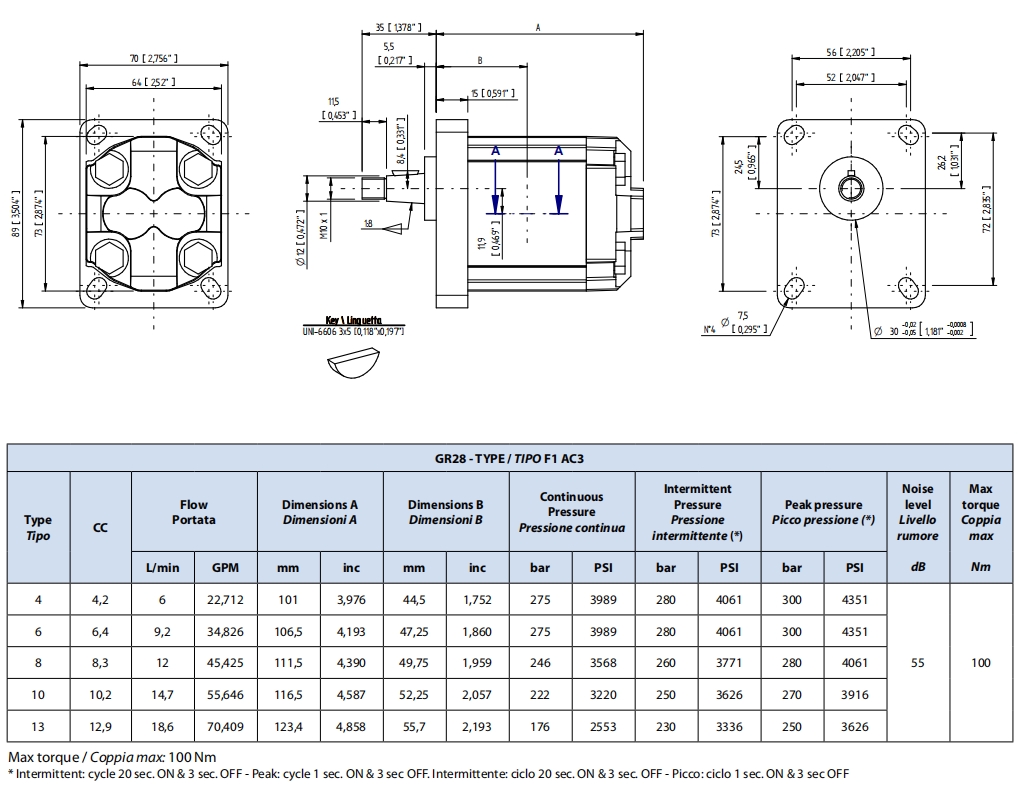

| GR28 | 2V | 004-006-008-010-013 | F1AC3-F1PAC2-F1KAG54-F1LAGL54-
FSAEAAC-F1KAGL54 |
G-U |
Standard NBR (none)
Optional FKM V |
Standard DX (none)
Optional SX*
|
| GR33 | 2C | 010-013-015-018 | F2AC4-F2BK7AG-FSAEAAC-FSAEAAT9 | G-Q-U | ||
| GR38 | 2C | 016-018-020-022-025-028 | F2AC4-F2BK7AG-FSAEAAC-
FSAEAAT11-FSAEAAT9 |
G-Q-U | ||
| GR47 | 2C | 028-032-036-040-045-050 | F3AC9-FSAEBAC-FSAEBAT13 | G-O-U | ||
| GR55 | 2C | 050-063-075-090 | FSAEBAC-FSAEBAT15 | O-OE | ||
| GR72 | 2V | 094-101-125-150-175-200-220 | FSAEDAC-FSAEDAT23 | ME |
Models:28 – 33 -38 – 47 – 55 – 72 – 92* – 106*
Flanges:Group 1 – Group 2 (European, German, BKT, SAE-A) – Group 3 (European, SAE-B) – Group 4 (SAE-D)
Installation position:External and/or under oil
Shaft speed:From 150 to 6.500 rpm (for usage below 1.000 rpm or over 1.800 rpm please contact Settima)
Acoustic emissions:From 52 up to 63 db(A) at 2.950 rpm
Settima GR Screw Pump High-pressure, noiseless helical rotor pump
| Type
Tipo |
Class Classe |
Displacement Cilindrata |
Flange & shaft
Flangia & albero |
Ports Porte |
Shaft seal
Guarnizione albero |
Rotation Rotazione |
| GR28 | 2V | 004-006-008-010-013 | F1AC3-F1PAC2-F1KAG54-F1LAGL54-
FSAEAAC-F1KAGL54 |
G-U |
Standard NBR (none)
Optional FKM V |
Standard DX (none)
Optional SX*
|
| GR33 | 2C | 010-013-015-018 | F2AC4-F2BK7AG-FSAEAAC-FSAEAAT9 | G-Q-U | ||
| GR38 | 2C | 016-018-020-022-025-028 | F2AC4-F2BK7AG-FSAEAAC-
FSAEAAT11-FSAEAAT9 |
G-Q-U | ||
| GR47 | 2C | 028-032-036-040-045-050 | F3AC9-FSAEBAC-FSAEBAT13 | G-O-U | ||
| GR55 | 2C | 050-063-075-090 | FSAEBAC-FSAEBAT15 | O-OE | ||
| GR72 | 2V | 094-101-125-150-175-200-220 | FSAEDAC-FSAEDAT23 | ME |
