OTÂ 200 P04,OTÂ 200 P06,OTÂ 200 P08,OTÂ 200 P11,OTÂ 200 P14,OTÂ 200 P16,OTÂ 200 P20,OTÂ 200 P22,OTÂ 200 P25,OTÂ 200 P28,OTÂ 200 P30

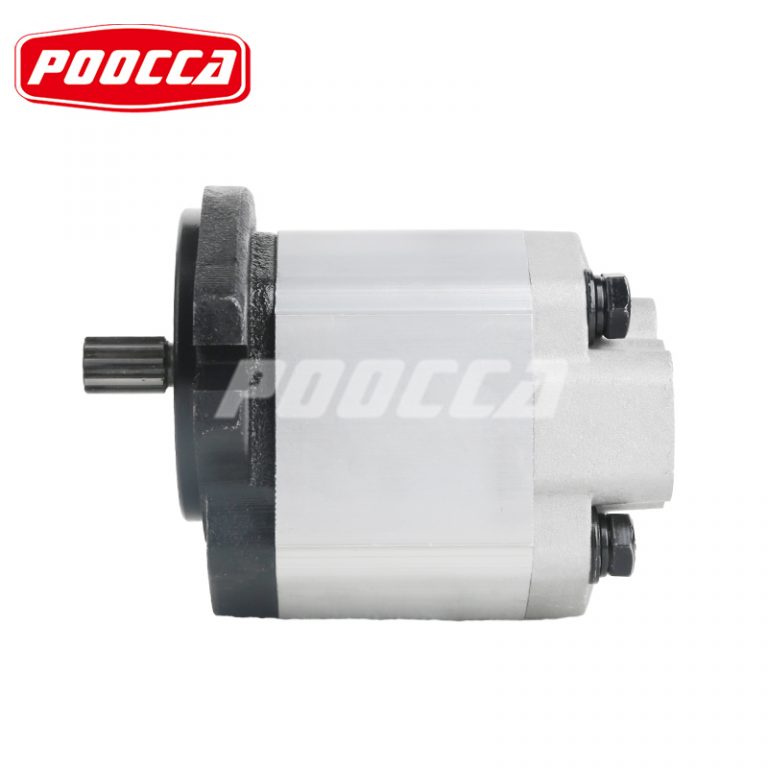

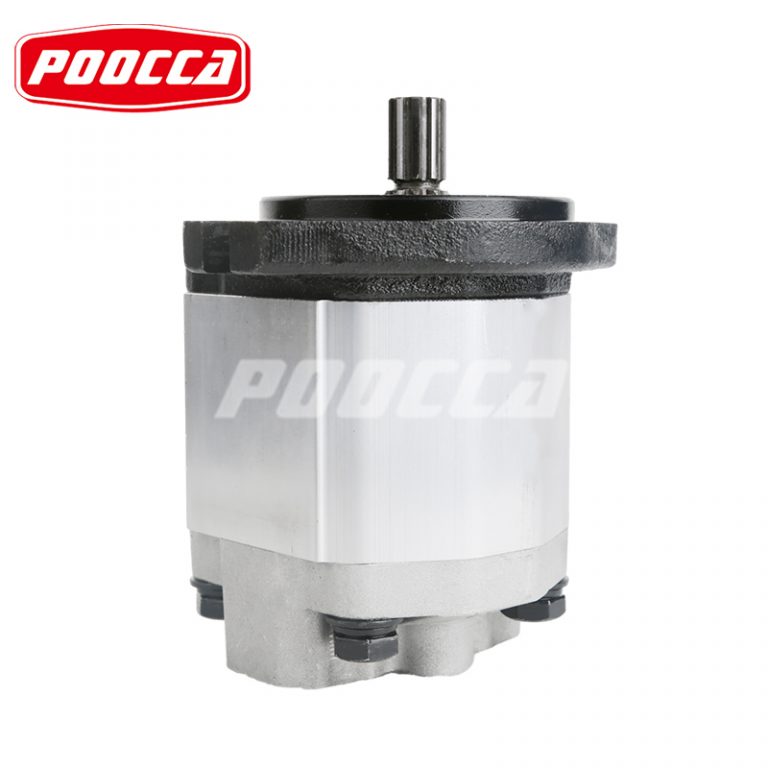

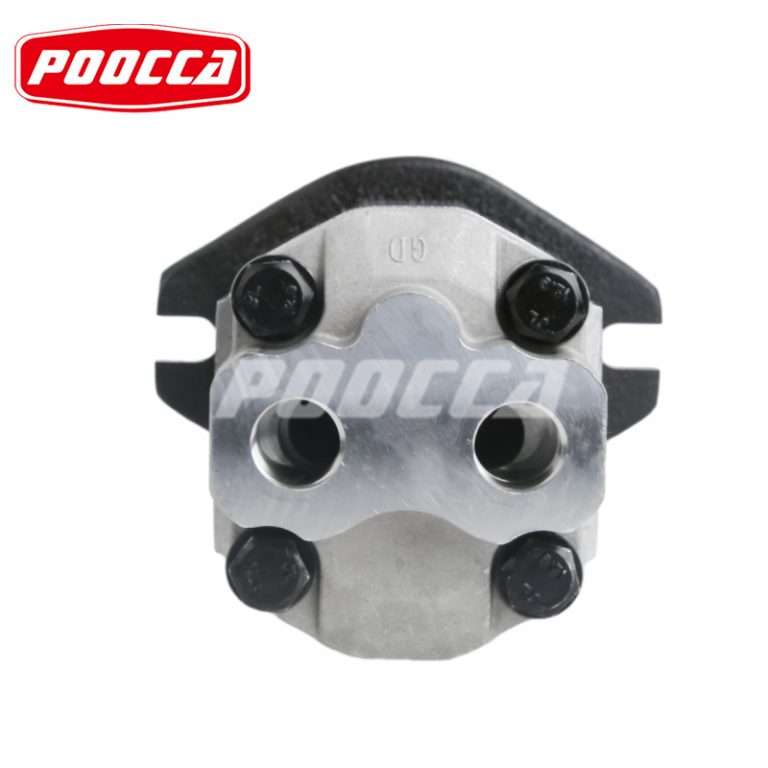

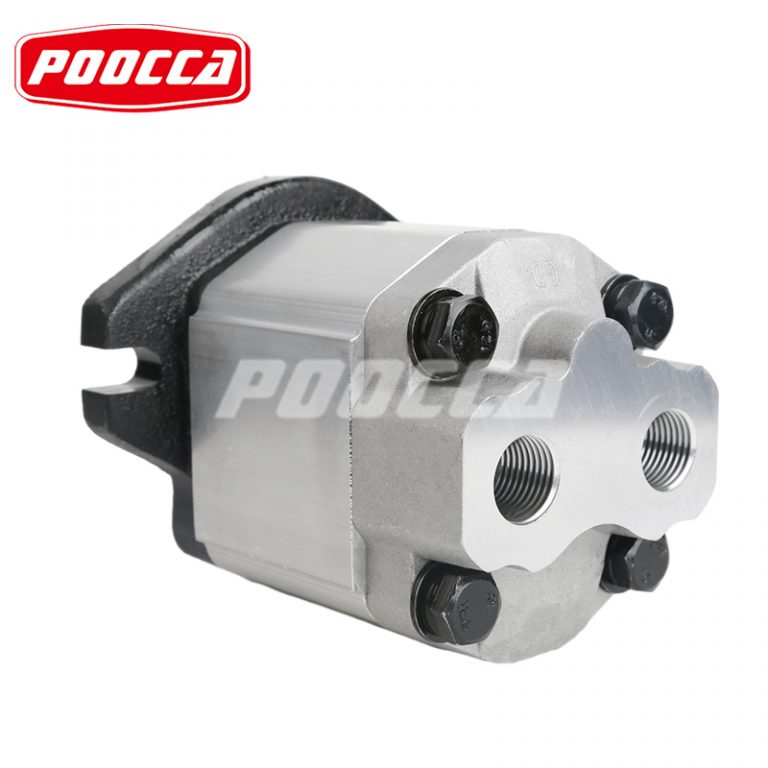

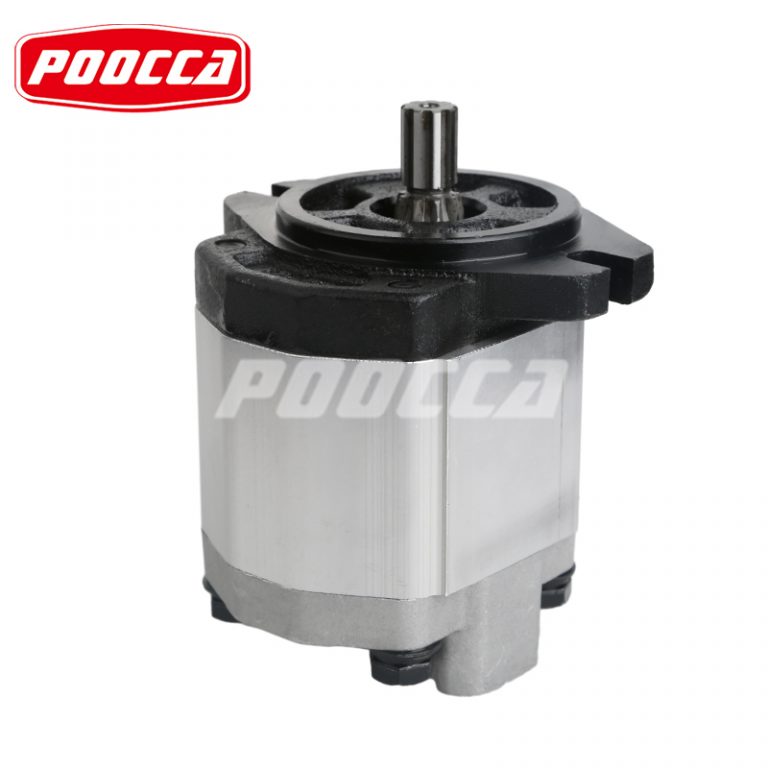

Brevini gear pump has OT100 OT200 OT300
Welcome to send us your requirements, poocca hydraulic manufacturer will reply to you as soon as possible.
GENERAL CHARACTERISTICS:
Maximum pressures up to 300 bar.
Weight : from 3.1 Kg to 4.3 kg
Maximum speed up to 4.000 rpm.
Type of shafts: Taper 1:8 and 1:5
Oldham
Slined DIN 5482 17×14.
SAE A splined-9 TEETH
SAE A cylindrical – Ø15.85 – SAE A 11 TEETH
Type of flanges: European standard
German standard
SAE A standard.
Displacements from 4 cc/rev to 30cc/rev.

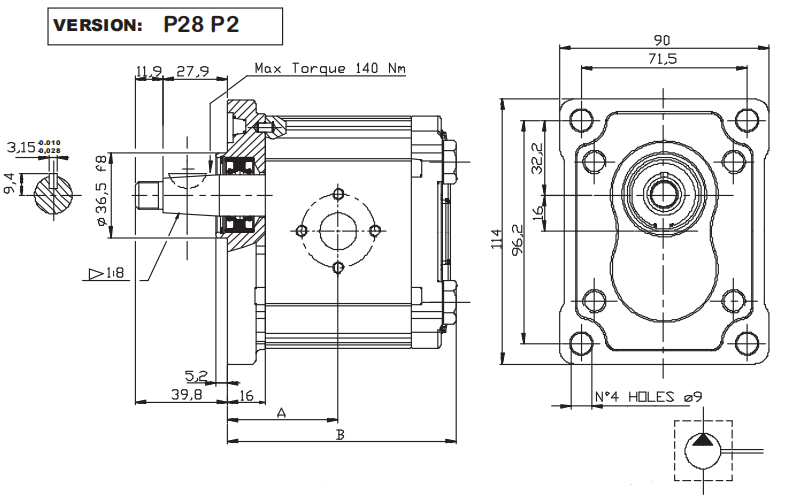

| Tipo | Cilindrata | Pressione | Pressione di punta | Velocita’ | Dimensione A | Bocca di   aspirazione | Bocca di mandata | |||||
| ( cc/giro ) | massima | P3 | massima ( giri/min. ) |     B | ||||||||
| continua P1 | ( bar ) | ( mm ) | ØD | ØA | W | ØD | ØA | W | ||||
| OTÂ 200 P04 | 04,10 | 250 | 300 | 4000 | 40,00 | 83,50 | 13 | 30 | M6 | 13 | 30 | M6 |
| OTÂ 200 P06 | 06,20 | 250 | 300 | 3500 | 41,50 | 86,50 | 13 | 30 | M6 | 13 | 30 | M6 |
| OTÂ 200 P08 | 08,20 | 250 | 300 | 3500 | 43,00 | 89,50 | 13 | 30 | M6 | 13 | 30 | M6 |
| OTÂ 200 P11 | 11,20 | 250 | 300 | 3500 | 45,15 | 93,80 | 13 | 30 | M6 | 13 | 30 | M6 |
| OTÂ 200 P14 | 14,00 | 240 | 300 | 3000 | 47,15 | 97,80 | 20 | 40 | M8 | 13 | 30 | M6 |
| OTÂ 200 P16 | 16,00 | 240 | 300 | 3000 | 48,60 | 100,7 | 20 | 40 | M8 | 13 | 30 | M6 |
| OTÂ 200 P20 | 20,00 | 200 | 240 | 3000 | 51,50 | 106,5 | 20 | 40 | M8 | 13 | 30 | M6 |
| OTÂ 200 P22 | 22,50 | 170 | 210 | 2500 | 57,35 | 118,2 | 20 | 40 | M8 | 13 | 30 | M6 |
| OTÂ 200 P25 | 25,10 | 170 | 210 | 2500 | 59,25 | 122,0 | 20 | 40 | M8 | 13 | 30 | M6 |
| OTÂ 200 P28 | 28,00 | 140 | 180 | 2500 | 61,35 | 126,2 | 20 | 40 | M8 | 13 | 30 | M6 |
| OTÂ 200 P30 | 30,00 | 130 | 170 | 2000 | 62,75 | 129,0 | 20 | 40 | M8 | 13 | 30 | M6 |
GENERAL CHARACTERISTICS:
Maximum pressures up to 300 bar.
Weight : from 3.1 Kg to 4.3 kg
Maximum speed up to 4.000 rpm.
Type of shafts: Taper 1:8 and 1:5
Oldham
Slined DIN 5482 17×14.
SAE A splined-9 TEETH
SAE A cylindrical – Ø15.85 – SAE A 11 TEETH
Type of flanges: European standard
German standard
SAE A standard.
Displacements from 4 cc/rev to 30cc/rev.
| Tipo | Cilindrata | Pressione | Pressione di punta | Velocita’ | Dimensione A | Bocca di   aspirazione | Bocca di mandata | |||||
| ( cc/giro ) | massima | P3 | massima ( giri/min. ) |     B | ||||||||
| continua P1 | ( bar ) | ( mm ) | ØD | ØA | W | ØD | ØA | W | ||||
| OTÂ 200 P04 | 04,10 | 250 | 300 | 4000 | 40,00 | 83,50 | 13 | 30 | M6 | 13 | 30 | M6 |
| OTÂ 200 P06 | 06,20 | 250 | 300 | 3500 | 41,50 | 86,50 | 13 | 30 | M6 | 13 | 30 | M6 |
| OTÂ 200 P08 | 08,20 | 250 | 300 | 3500 | 43,00 | 89,50 | 13 | 30 | M6 | 13 | 30 | M6 |
| OTÂ 200 P11 | 11,20 | 250 | 300 | 3500 | 45,15 | 93,80 | 13 | 30 | M6 | 13 | 30 | M6 |
| OTÂ 200 P14 | 14,00 | 240 | 300 | 3000 | 47,15 | 97,80 | 20 | 40 | M8 | 13 | 30 | M6 |
| OTÂ 200 P16 | 16,00 | 240 | 300 | 3000 | 48,60 | 100,7 | 20 | 40 | M8 | 13 | 30 | M6 |
| OTÂ 200 P20 | 20,00 | 200 | 240 | 3000 | 51,50 | 106,5 | 20 | 40 | M8 | 13 | 30 | M6 |
| OTÂ 200 P22 | 22,50 | 170 | 210 | 2500 | 57,35 | 118,2 | 20 | 40 | M8 | 13 | 30 | M6 |
| OTÂ 200 P25 | 25,10 | 170 | 210 | 2500 | 59,25 | 122,0 | 20 | 40 | M8 | 13 | 30 | M6 |
| OTÂ 200 P28 | 28,00 | 140 | 180 | 2500 | 61,35 | 126,2 | 20 | 40 | M8 | 13 | 30 | M6 |
| OTÂ 200 P30 | 30,00 | 130 | 170 | 2000 | 62,75 | 129,0 | 20 | 40 | M8 | 13 | 30 | M6 |
POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
