The design of the MASTER series gear pumps is based on the extensive experience of factory experts and well-known companies around the world. These pumps focus on efficient design, utilization of modern parts and high-precision technical equipment to ensure consistent efficiency throughout their service life.

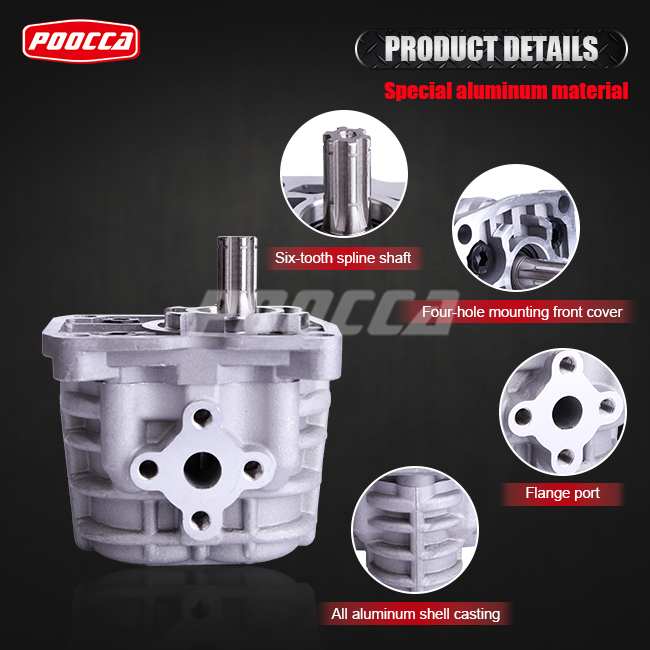

Type M gear pumps are designed for hydraulic systems with a maximum continuous pressure of 160 bar. The main components of these pumps are made of a special aluminum alloy.
MЧ gear pumps, on the other hand, are tailor-made for hydraulic systems operating at a maximum continuous pressure of 200 bar. These pumps have a casing made of high-strength cast iron, ensuring excellent reliability and durability.
Обозначение
NSH Gear Pump Type |
Н Ш6 М-3
NSH6M-2 |
Н Ш 10 М-3
NSH10M-3 |
Н Ш 14 М-3
NSH14M-3 |
Н Ш 16 М-3
NSH16M-3 |
Н Ш25 М-3
NSH25M-3 |
Н Ш32 М-3
NSH32M-3 |
Н Ш40 М-3
NSH40M-3 |
Н Ш50 М-3
NSH50M-3 |
Н Ш 100 М-3
NSH100-3 |
Н Ш20 МЧ-4
NSH20 |
Н Ш25 МЧ-4 | Н Ш32 МЧ-4 | Н Ш40 МЧ-4 | Н Ш50 МЧ-4 | |
Рабочий объем
Displacement |
cm3/rev | 6 | 10 | 14 | 16 | 25 | 32 | 40 | 50 | 100 | 20 | 25 | 32 | 40 | 50 |
Макс . продолжительное
давление, Р1 Maximum continuous pressure, Р1 |
bar |
160 |
160 |
200 |
|||||||||||
Макс . кратковременное
давление, Р2 Maximum intermittent pressure, Р2 |
bar |
210 |
210 |
250 |
|||||||||||
Макс . пиковое давление, Р3
Maximum peak pressure, Р3 |
bar | 250 | 250 | 280 | |||||||||||
Максимальная
частота вращения, nmax Maximum speed, nmax |
min-1 |
4200 |
3600 |
3000 |
2400 |
3600 |
3000 |
||||||||
Минимальная
частота вращения, nmin Minimum speed, nmin |
min-1 |
500 |
The design of the MASTER series gear pumps is based on the extensive experience of factory experts and well-known companies around the world. These pumps focus on efficient design, utilization of modern parts and high-precision technical equipment to ensure consistent efficiency throughout their service life.
Type M gear pumps are designed for hydraulic systems with a maximum continuous pressure of 160 bar. The main components of these pumps are made of a special aluminum alloy.
MЧ gear pumps, on the other hand, are tailor-made for hydraulic systems operating at a maximum continuous pressure of 200 bar. These pumps have a casing made of high-strength cast iron, ensuring excellent reliability and durability.
Обозначение
NSH Gear Pump Type |
Н Ш6 М-3
NSH6M-2 |
Н Ш 10 М-3
NSH10M-3 |
Н Ш 14 М-3
NSH14M-3 |
Н Ш 16 М-3
NSH16M-3 |
Н Ш25 М-3
NSH25M-3 |
Н Ш32 М-3
NSH32M-3 |
Н Ш40 М-3
NSH40M-3 |
Н Ш50 М-3
NSH50M-3 |
Н Ш 100 М-3
NSH100-3 |
Н Ш20 МЧ-4
NSH20 |
Н Ш25 МЧ-4 | Н Ш32 МЧ-4 | Н Ш40 МЧ-4 | Н Ш50 МЧ-4 | |
Рабочий объем
Displacement |
cm3/rev | 6 | 10 | 14 | 16 | 25 | 32 | 40 | 50 | 100 | 20 | 25 | 32 | 40 | 50 |
Макс . продолжительное
давление, Р1 Maximum continuous pressure, Р1 |
bar |
160 |
160 |
200 |
|||||||||||
Макс . кратковременное
давление, Р2 Maximum intermittent pressure, Р2 |
bar |
210 |
210 |
250 |
|||||||||||
Макс . пиковое давление, Р3
Maximum peak pressure, Р3 |
bar | 250 | 250 | 280 | |||||||||||
Максимальная
частота вращения, nmax Maximum speed, nmax |
min-1 |
4200 |
3600 |
3000 |
2400 |
3600 |
3000 |
||||||||
Минимальная
частота вращения, nmin Minimum speed, nmin |
min-1 |
500 |
