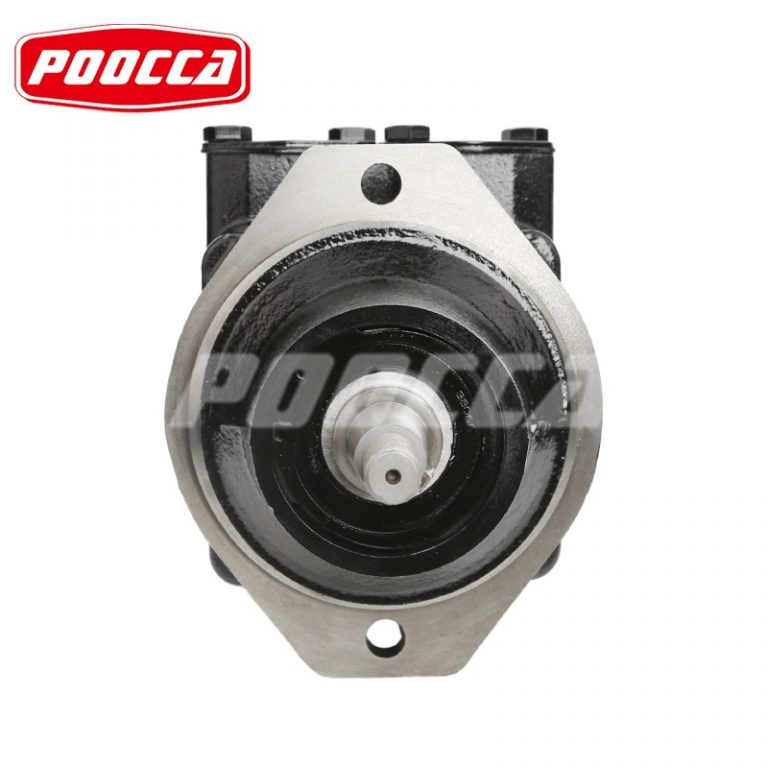

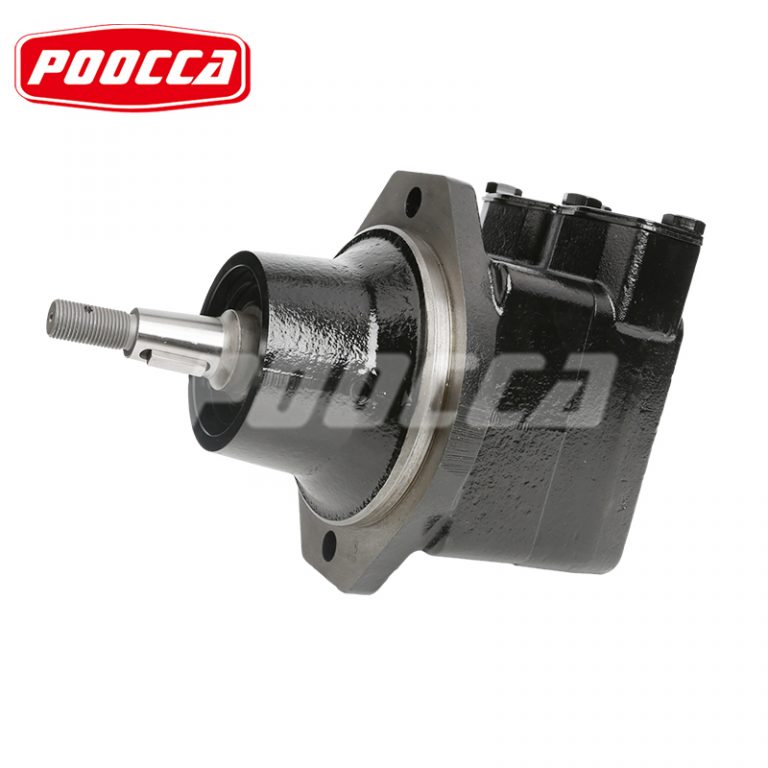

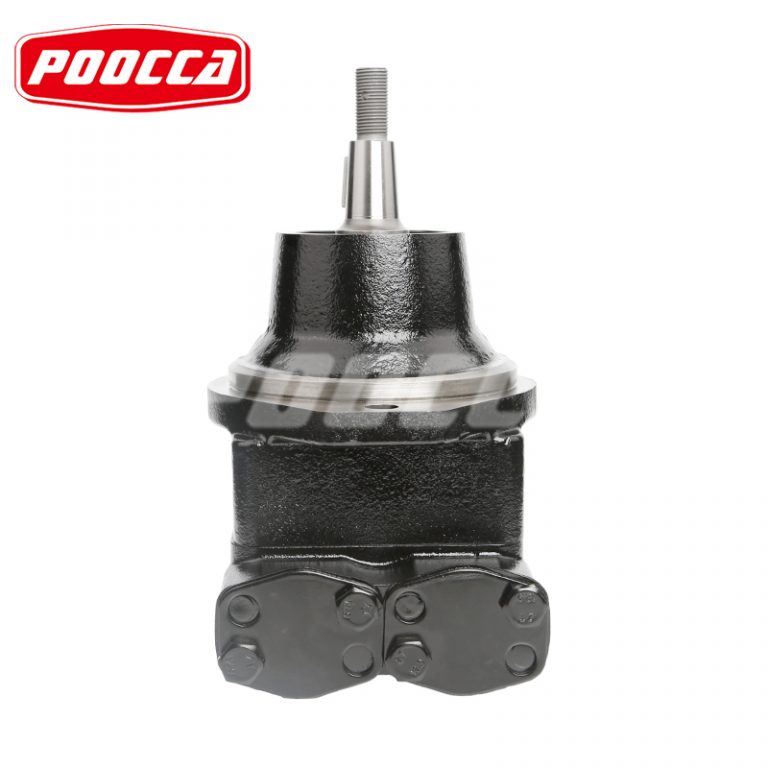

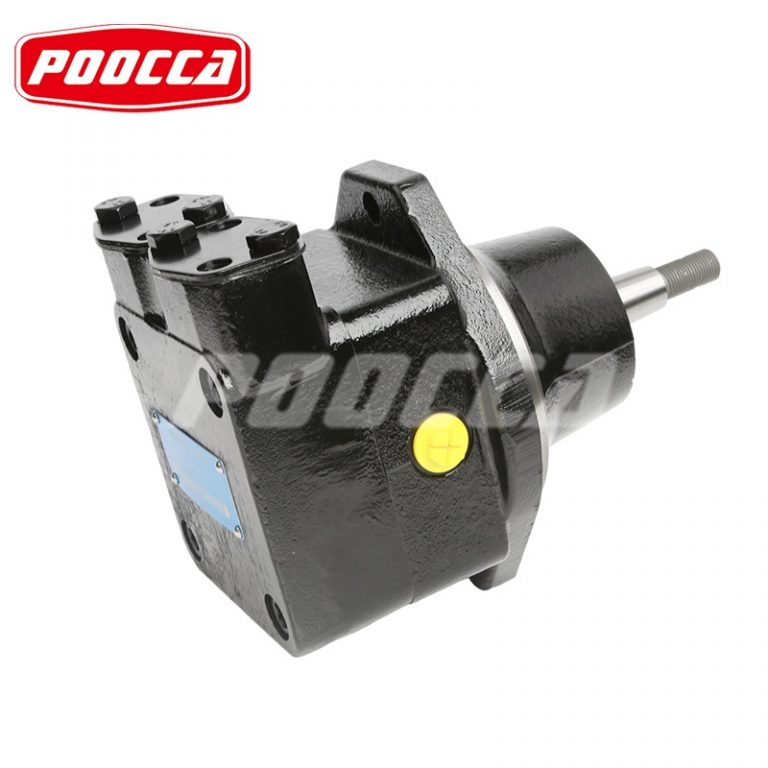

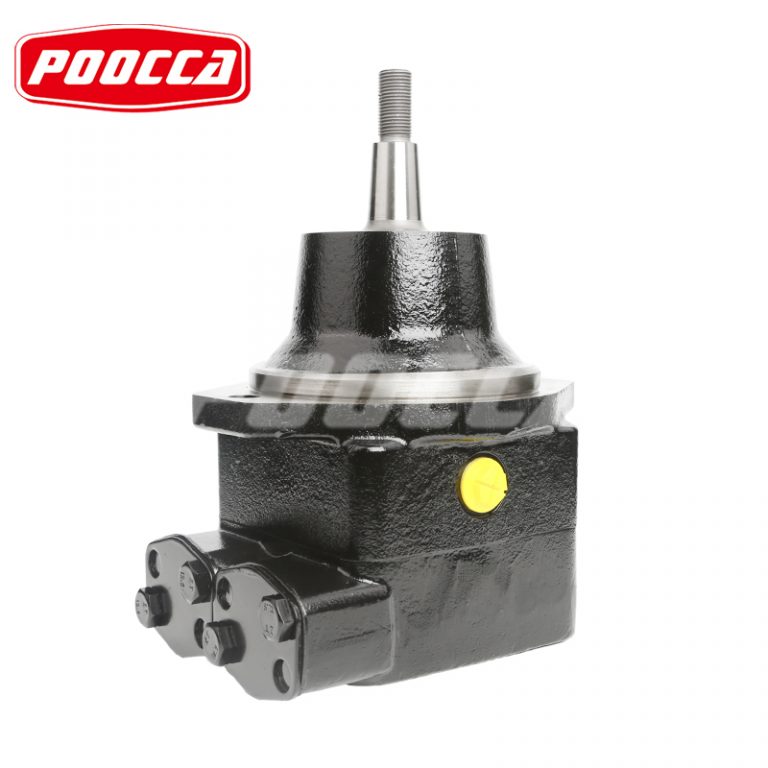

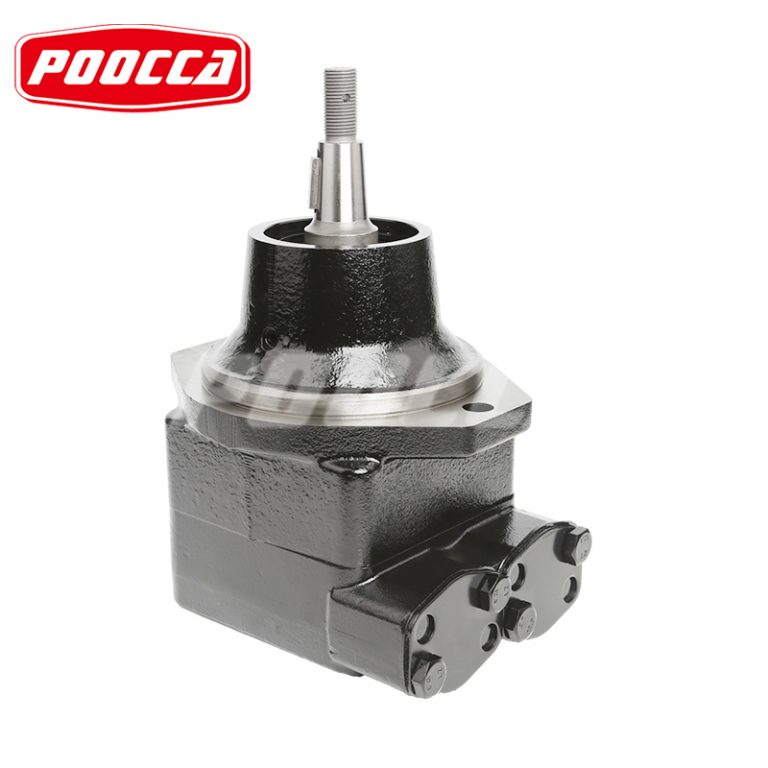

Parker Denison M5 Hydraulic Fixed Vane Motors M5B M5BS M5BF

Poocca sells M5A, M5AS, M5ASF, M5AF, M5B, M5BS, M5BF hydraulic vane motors. If you need them, please contact us immediately.

Chat Now

Characteristic

M5B M5BS M5BF vane motor displacement range: 12.1-45.1, torque: 0.191-1.716, 12 month warranty, fast delivery.

High Performance
Parker M5 vane motors are designed for demanding applications that require sustained high pressure and high speed performance, even under low oil lubrication conditions. Performance is consistent.

Low Noise
Practically silent! Denison vane technology keeps noise levels extremely low at all speeds.
Low Torque Ripple Thanks to 12 vanes, advanced cam ring profiles, two torque cycles per revolution and low internal dead volume, the M5 motor exhibits extremely low torque ripple (typically +1.5%) even at low speeds.

Versatile and Compact
The same size motor supports up to 7 different displacements. The M5 fan drive motor can be mounted directly on the radiator support and has a very short overall length. The fan blades can be mounted directly on the motor tapered shaft end.

Parameter

series	Theoretical DisplacementVi	Theoretical torque	Theoretical power at 100rpm	Typica ldata at 2000rpm – 320bar
series	cm3/rev	N.m/bar	kw/bar	N.m	kw
M5B M5BS M5BF	12,1	0，191	0，0020	51,6	10,6
	18,1	1,286	0，0031	81,2	17,1
	23,1	1,366	0，0038	117,1	24,5
	28,1	1,446	0，0047	132,1	27,7
	36,1	1,572	0，0061	172,8	36,2
	45,1	1,716	0，0075	N/A¹⁾	N/A¹⁾

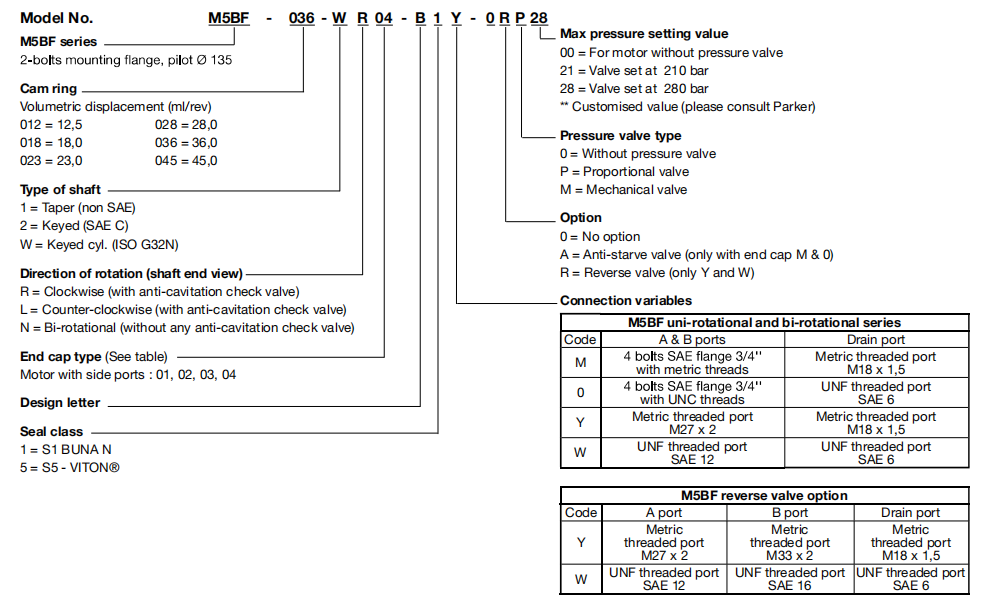

Order Code
