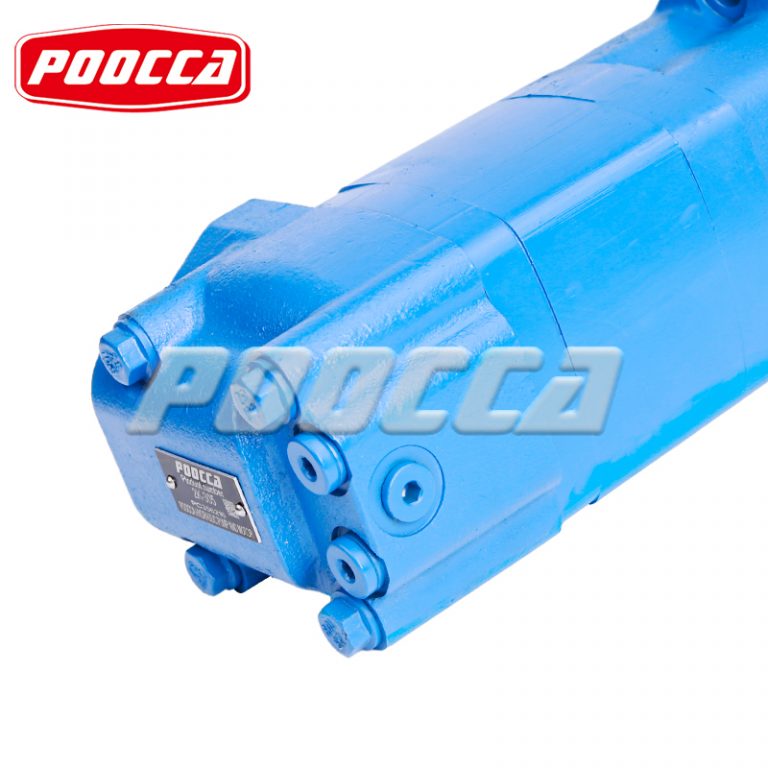

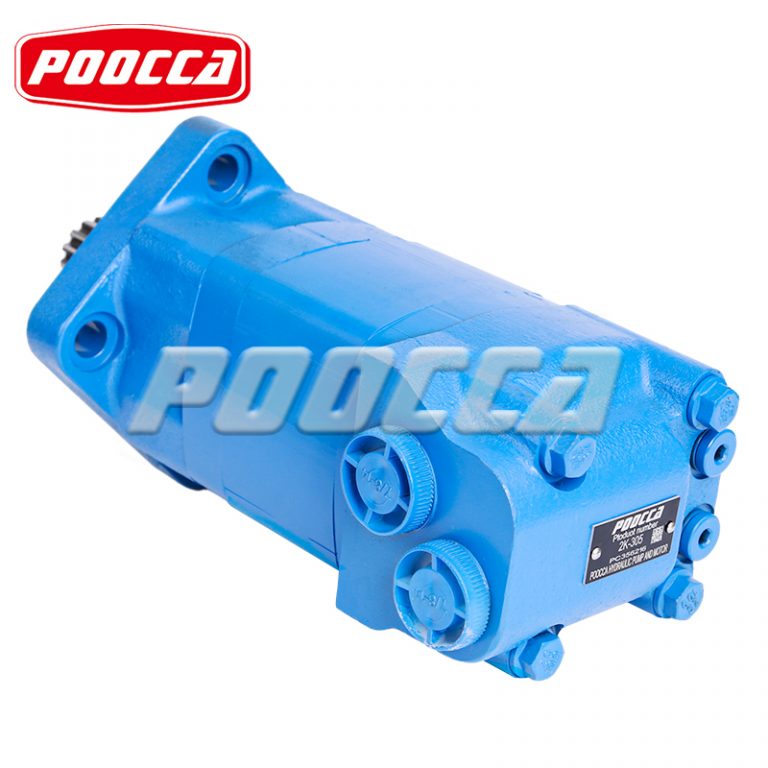

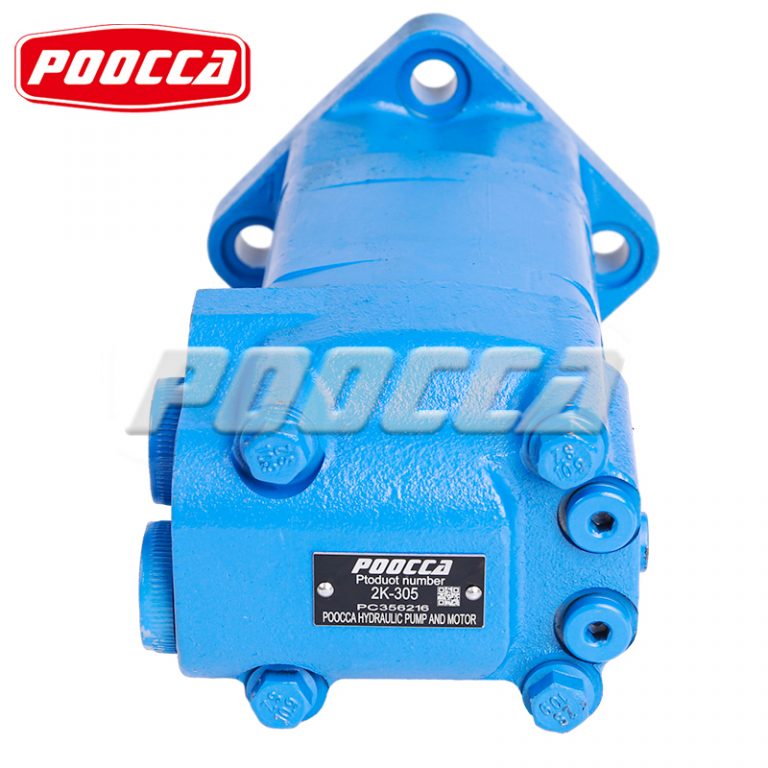

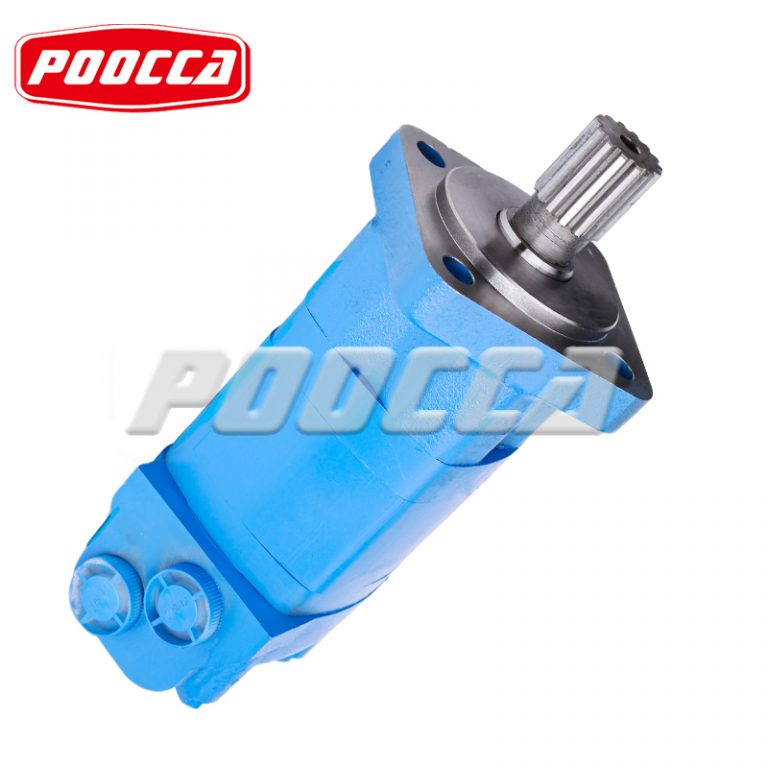

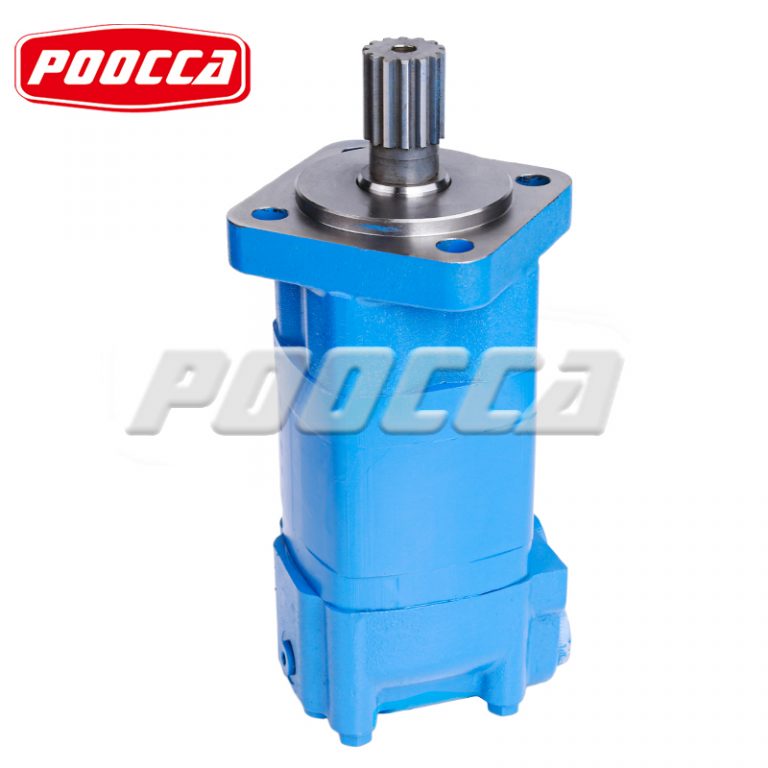

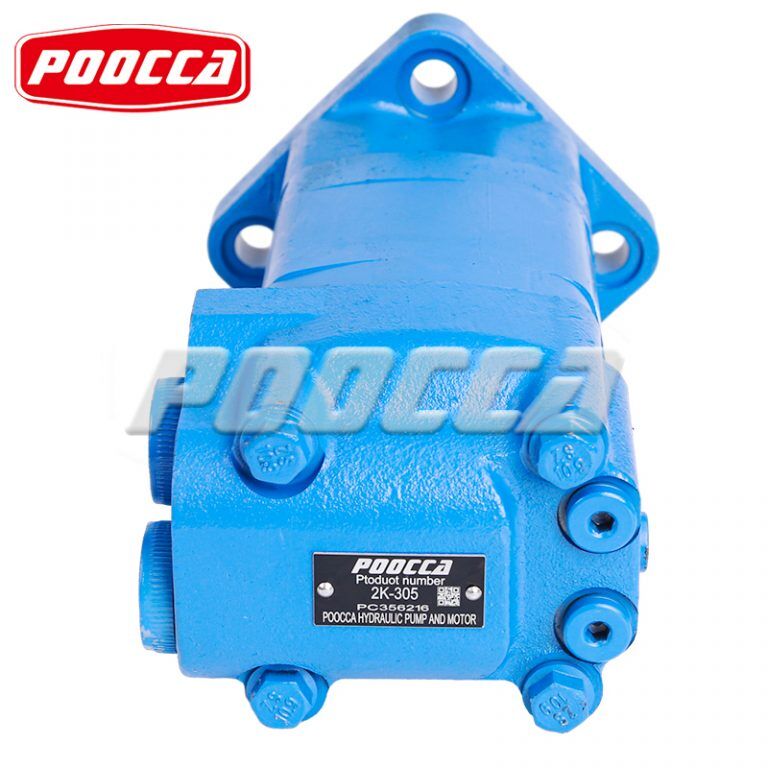

Eaton spool valve motors increase flow and pressure, resulting in improved torque and efficiency compared to spool valve motors. The product line includes standard, wheeled or bearingless configurations, with a range of shaft and port options and speed sensors to meet a wide range of application needs. Eaton 2000 Series Orbit Motor is backed by a robust manufacturing system that ensures on-time delivery.
Eaton 2000 Series motors enable users to switch the displacement of the motor to deliver different speeds with different torque without changing the input flow rate. An external three-way valve is required to switch the pilot pressure port between signal pressure (HSLT) and low pressure (LSHT).
Two speed motors are available. Closed center shuttle with return line for closed circuit applications. With full shifting on-the-fly capability, the 2:1 shift ratio (2000 Series) provides greater circuit flexibility in a compact and reliable package.
benefit:
| Displ. cm3/r [in3/r] | 34
[2.1] |
41
[2.5] |
66
[4.0] |
80
[4.9] |
90
[5.5] |
100
[6.2] |
130
[8.0] |
160
[9.6] |
195
[11.9] |
245
[14.9] |
305
[18.7] |
395
[24.0] |
490
[29.8] |
|
| Max. Speed (RPM) @ Flow | Continuous | 1215 | 1104 | 1075 | 908 | 836 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| Intermittent | 1215 | 1216 | 1214 | 908 | 1042 | 924 | 720 | 713 | 577 | 462 | 365 | 335 | 230 | |
| Flow
l/min [GPM] |
Continuous | 42
[11] |
45
[12] |
72
[19] |
75
[20] |
75
[20] |
75
[20] |
75
[20] |
75
[20] |
75
[20] |
75
[20] |
75
[20] |
75
[20] |
75
[20] |
| Intermittent | 42
[11] |
53
[14] |
87
[23] |
75
[20] |
95
[25] |
95
[25] |
95
[25] |
115
[30] |
115
[30] |
115
[30] |
115
[30] |
115
[30] |
115
[30] |
|
| Torque* Nm [lb – in] | Continuous | 98
[864] |
112
[988] |
186
[1643] |
235 [2065] | 265
[2326] |
295
[2630] |
385
[3420] |
455
[4040] |
540
[4780] |
660 [5850] | 765
[6750] |
775 [6840] | 845
[7470] |
| Intermittent | 142
[1261] |
169
[1497] |
276
[2446] |
345 [3035] | 390 [3458] | 445 [3950] | 560
[4970] |
570 [5040] | 665 [5890] | 820 [7250] | 885 [7820] | 925
[8170] |
930
[8225] |
|
| Pressure
Δ bar [Δ PSI] |
Continuous | 205
[3000] |
205 [3000] | 205 [3000] | 205 [3000] | 205 [3000] | 205 [3000] | 205 [3000] | 205 [3000] | 205 [3000] | 205 [3000] | 205 [3000] | 155 [2250] | 120
[1750] |
| Intermittent | 310
[4500] |
310
[4500] |
310
[4500] |
310
[4500] |
310
[4500] |
310
[4500] |
310
[4500] |
260 [3750] | 260 [3750] | 260 [3750] | 240 [3500] | 190 [2750] | 140
[2000] |
|
| Peak | 310
[4500] |
310
[4500] |
310
[4500] |
310
[4500] |
310
[4500] |
310
[4500] |
310
[4500] |
310
[4500] |
310
[4500] |
310
[4500] |
310
[4500] |
225 [3250] | 170
[2500] |
|
| Weight
kg [lb] |
Standard or Wheel mount | 8.8
[19.4] |
8.8
[19.4] |
8.8
[19.4] |
9.3
[20.5] |
9.3
[20.5] |
9.5
[21.0] |
9.8
[21.5] |
10.0
[22.0] |
10.4
[23.0] |
11.3
[25.0] |
11.3
[25.0] |
11.8
[26.0] |
12.2
[27.0] |
| Bearingless | 6.8 | 6.8 | 6.8 | 7.3 | 7.3 | 7.5 | 7.7 | 7.9 | 8.4 | 9.3 | 9.3 | 9.8 | 10.2 | |
| [15.0] | [15.0] | [15.0] | [16.0] | [16.0] | [16.5] | [17.0] | [17.5] | [18.5] | [20.5] | [20.5] | [21.5] | [22.5] | ||
