Improve energy efficiency: M5A M5AS M5ASF vane motors are known for their excellent high starting torque efficiency, which can start and operate smoothly under heavy load conditions, effectively avoiding the challenges of pressure peaks, shocks and high instantaneous power requirements.
Reduce operating noise: The unique design combines double blades and a patented filter element to achieve extremely low noise levels regardless of operating speed, significantly improving the quietness of the operating environment.
Extended service life: The Parker M5AS M5ASF one-way vane motor has a built-in valve design, which contributes to smooth dynamic braking, while simplifying the hydraulic circuit structure, effectively preventing cavitation, and extending the service life of the equipment.
| Series | Theoretical Displacement V1 |
Theoretica torque |
Theoretical powerat 100 rpm |
Typical data at 2000 rpm – 280 bar |
|
| cm3/rev | N.m/bar | kW/bar | N.m | KW | |
| M5A M5AS M5ASF |
6.3 | 0.1 | 0.0011 | 24.4 | 5.1 |
| 10 | 0.159 | 0.0017 | 40.8 | 8.6 | |
| 12.5 | 0.199 | 0.0021 | 52 | 10.9 | |
| 16 | 0.255 | 0.0027 | 67.6 | 14.2 | |
| 18 | 0.285 | 0.0030 | 75.8 | 15.9 | |
| 23 | 0.366 | 0.0038 | 98.4 | 20.4 | |
| 25 | 0.398 | 0.0042 | 101.4 | 22.5 | |

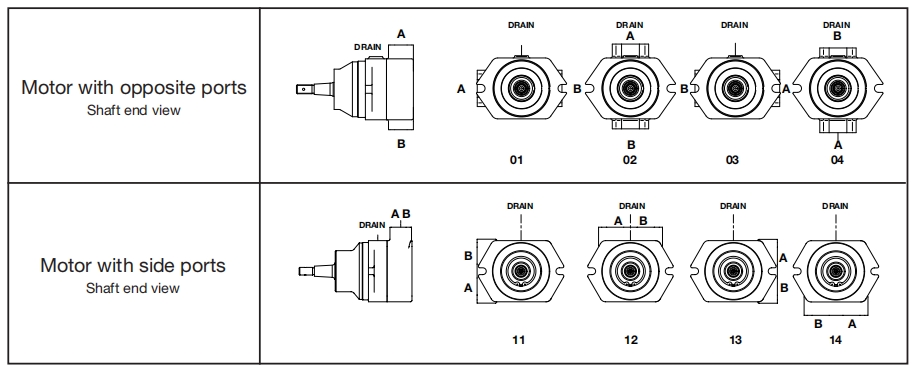

M5A M5AS M5ASF Position Of The Ports

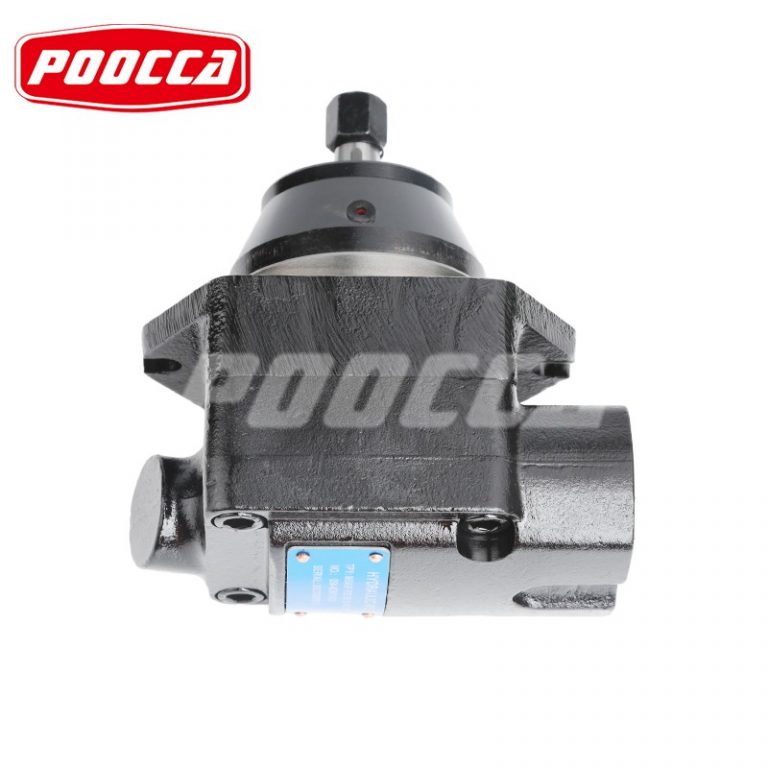

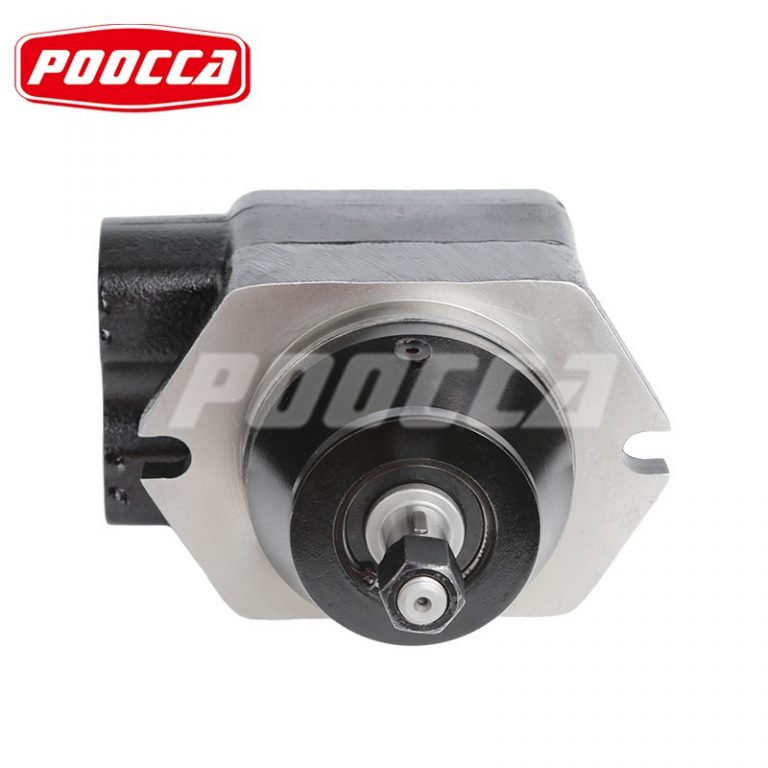

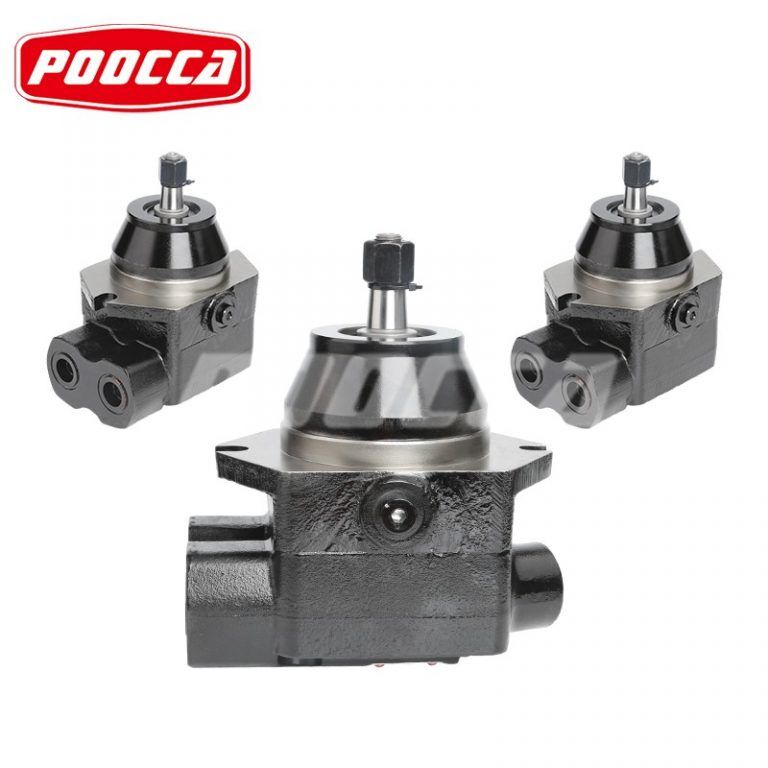

Parker M5AS Hydraulic Motor

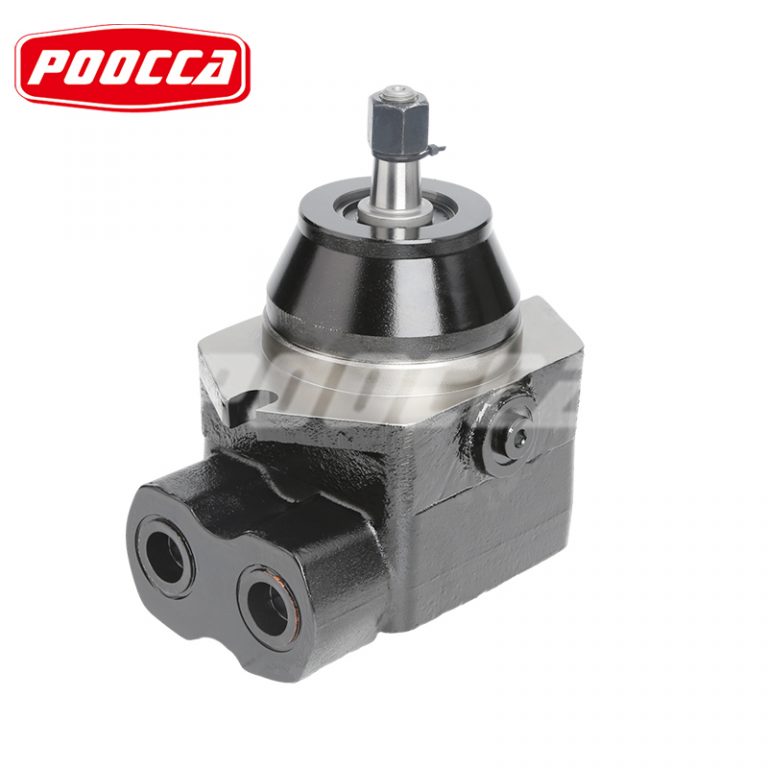

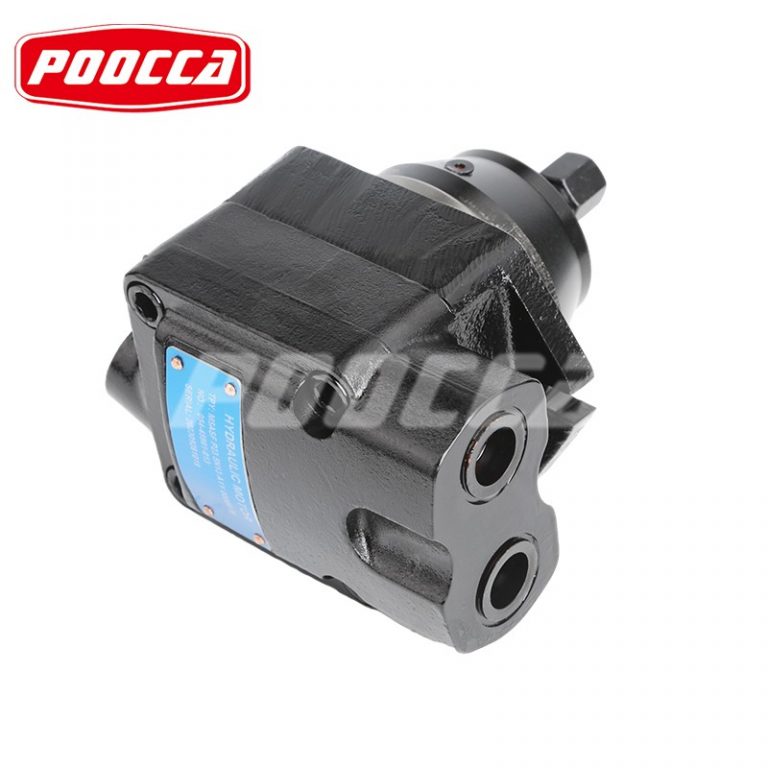

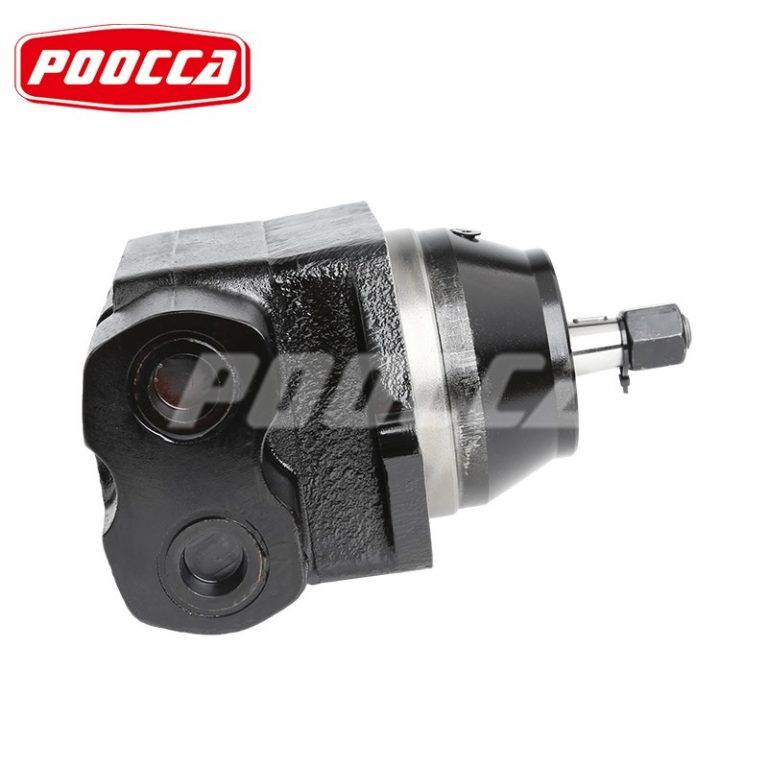

M5ASF Hydraulic Motor
Improve energy efficiency: M5A M5AS M5ASF vane motors are known for their excellent high starting torque efficiency, which can start and operate smoothly under heavy load conditions, effectively avoiding the challenges of pressure peaks, shocks and high instantaneous power requirements.
Reduce operating noise: The unique design combines double blades and a patented filter element to achieve extremely low noise levels regardless of operating speed, significantly improving the quietness of the operating environment.
Extended service life: The Parker M5AS M5ASF one-way vane motor has a built-in valve design, which contributes to smooth dynamic braking, while simplifying the hydraulic circuit structure, effectively preventing cavitation, and extending the service life of the equipment.
| Series | Theoretical Displacement V1 |
Theoretica torque |
Theoretical powerat 100 rpm |
Typical data at 2000 rpm – 280 bar |
|
| cm3/rev | N.m/bar | kW/bar | N.m | KW | |
| M5A M5AS M5ASF |
6.3 | 0.1 | 0.0011 | 24.4 | 5.1 |
| 10 | 0.159 | 0.0017 | 40.8 | 8.6 | |
| 12.5 | 0.199 | 0.0021 | 52 | 10.9 | |
| 16 | 0.255 | 0.0027 | 67.6 | 14.2 | |
| 18 | 0.285 | 0.0030 | 75.8 | 15.9 | |
| 23 | 0.366 | 0.0038 | 98.4 | 20.4 | |
| 25 | 0.398 | 0.0042 | 101.4 | 22.5 | |
M5A M5AS M5ASF Position Of The Ports
Parker M5AS Hydraulic Motor
M5ASF Hydraulic Motor
