BK2 series hydraulic brake system, is a wet disc brake, designed with high friction disc and high strength spring, which can produce strong, low noise, high braking components. The brake adopts 4 discharge port design, compact structure, easy to install, can be used in different applications, suitable for MP & MR series hydraulic motors.
| Item | BK2-1 | BK2-2 | |
| Min.ย staticย Torqueย [Nm] | 200ย ๏ฝ230 | 410ย ๏ฝ450 | 410ย ๏ฝ450 |
| Min. Opening Pressureย [MPa] | 1.7ย ๏ฝ2.3 | ||
| Max. Opening Pressureย [MPa] | 30 | ||
| Min.oil quantityย for brakeย releasing[cm 3] | 7๏ฝ8 | ||
| Oilย volumeย [cmย 3] | 50ย ๏ฝ120 | ||
| Max. pressure in drainย spaceย [MPa] |
0.05 |
||
| Weightย [kg] | 9 | 9.5 | |

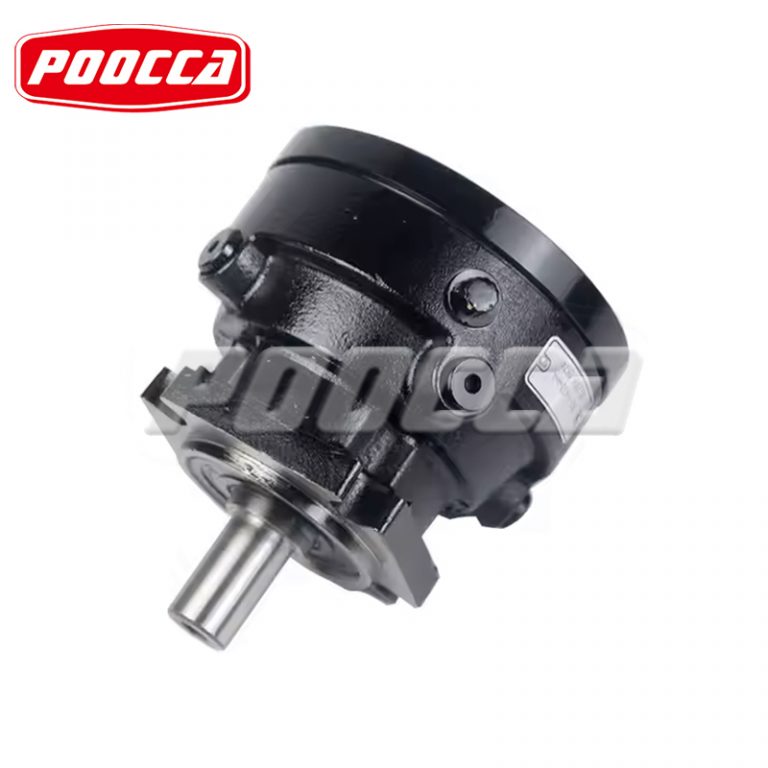

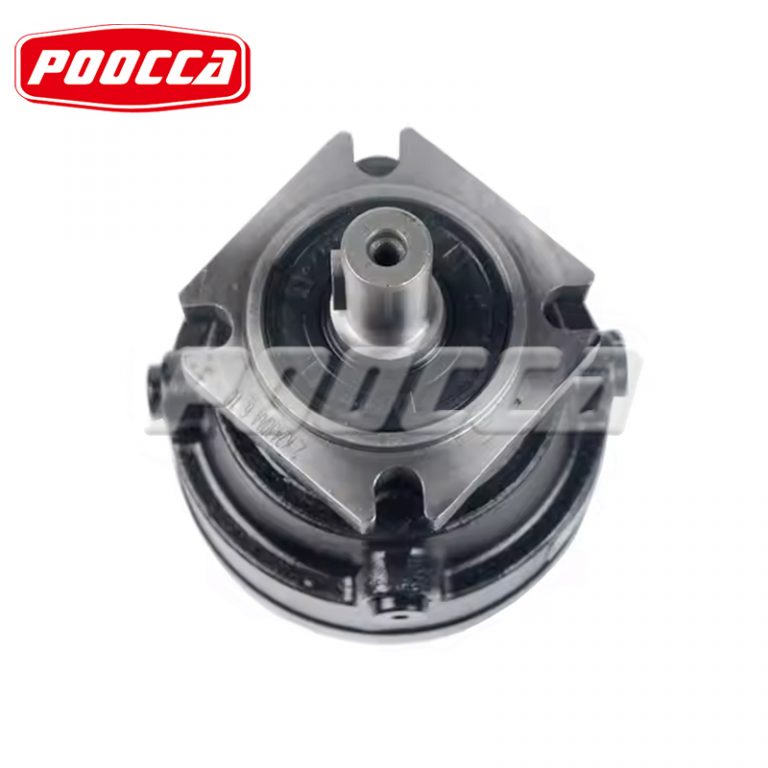

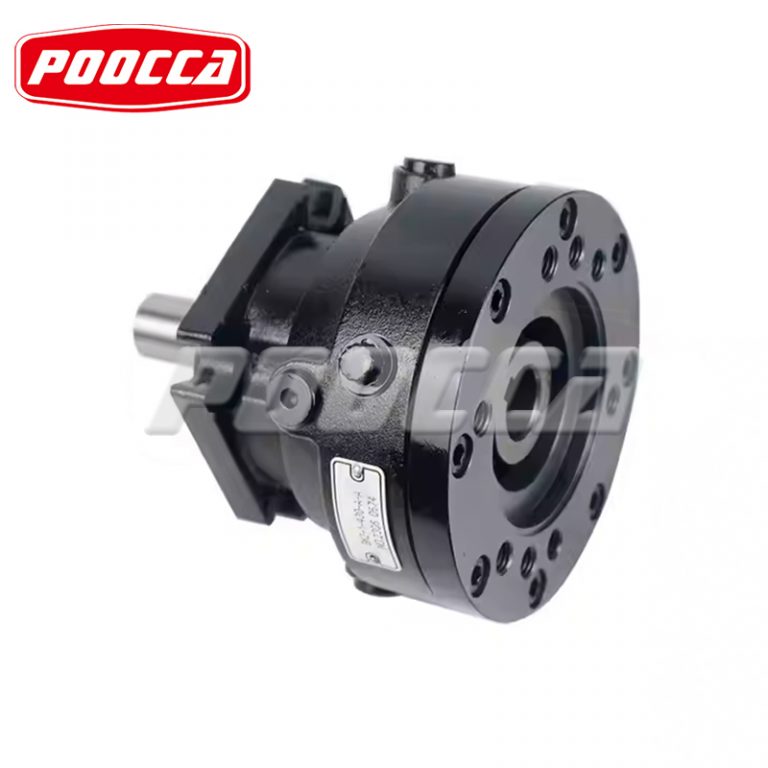

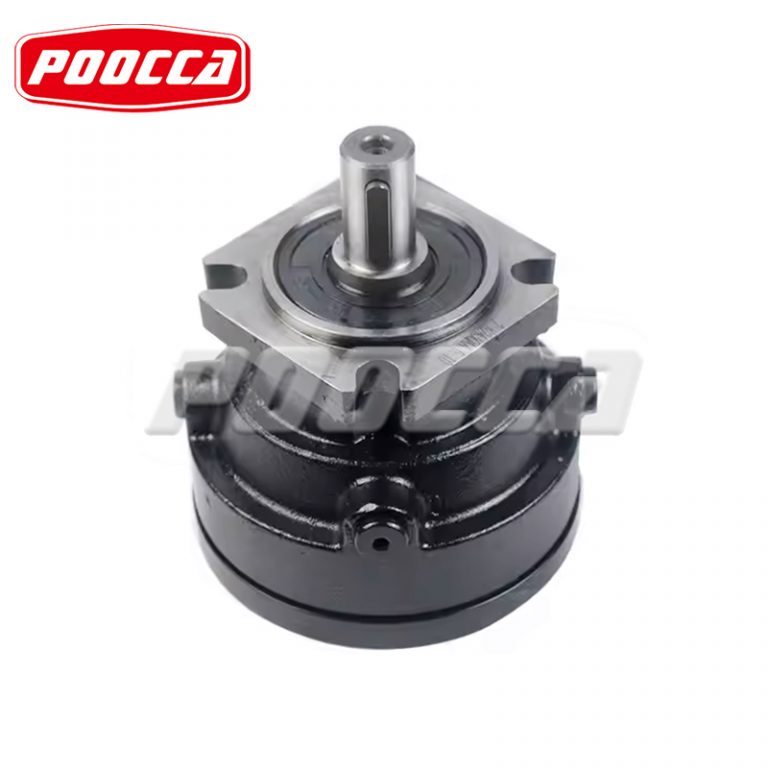

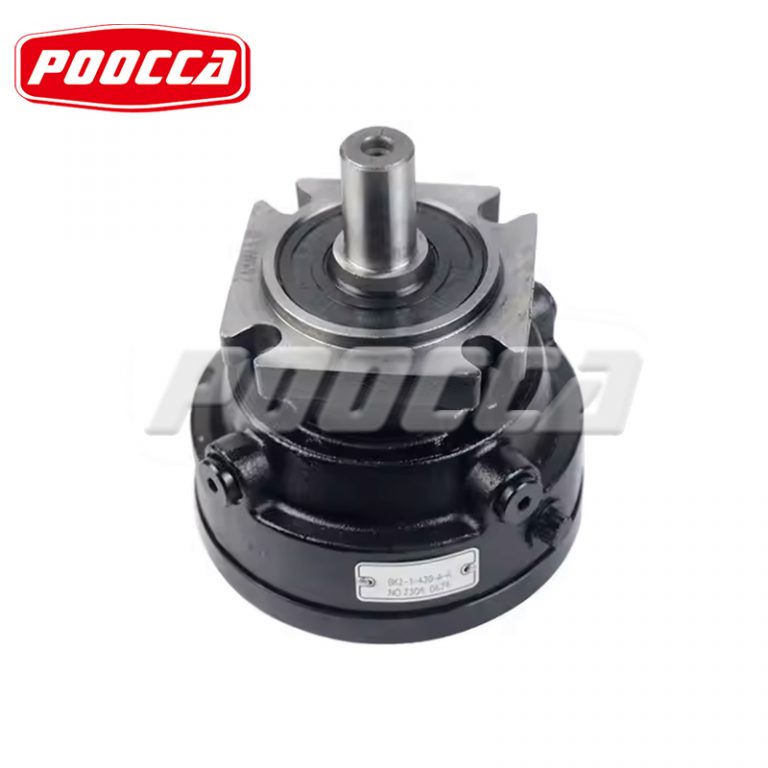

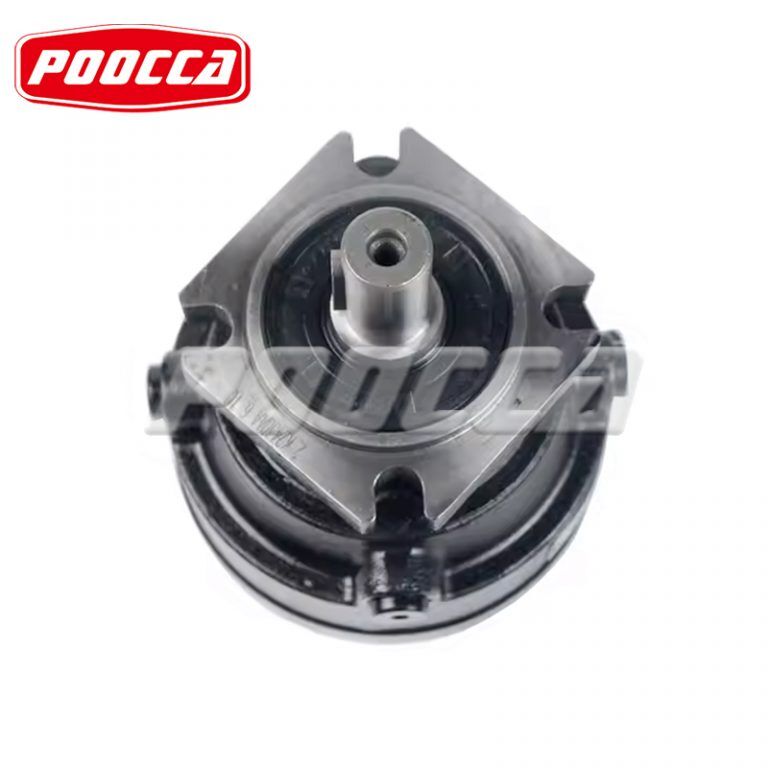

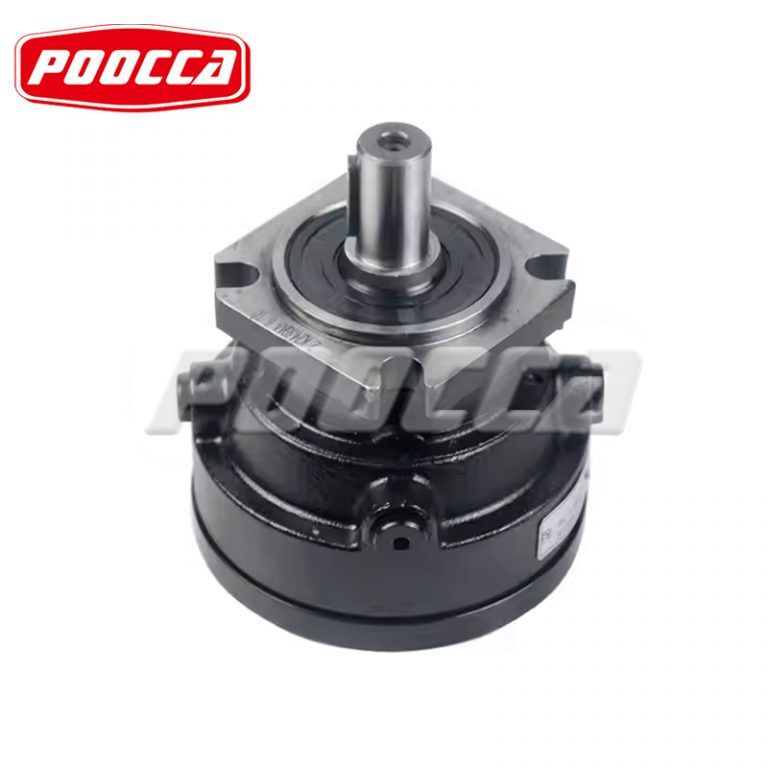

BK2-1 BK2-2 Hydraulic Motor Brake System It is widely used in various types of heavy machinery, including cranes, construction, material handling, agriculture, mining and forestry. It can also be used for winches and hydrostatic drive systems.
BK2 series hydraulic brake system, is a wet disc brake, designed with high friction disc and high strength spring, which can produce strong, low noise, high braking components. The brake adopts 4 discharge port design, compact structure, easy to install, can be used in different applications, suitable for MP & MR series hydraulic motors.
| Item | BK2-1 | BK2-2 | |
| Min.ย staticย Torqueย [Nm] | 200ย ๏ฝ230 | 410ย ๏ฝ450 | 410ย ๏ฝ450 |
| Min. Opening Pressureย [MPa] | 1.7ย ๏ฝ2.3 | ||
| Max. Opening Pressureย [MPa] | 30 | ||
| Min.oil quantityย for brakeย releasing[cm 3] | 7๏ฝ8 | ||
| Oilย volumeย [cmย 3] | 50ย ๏ฝ120 | ||
| Max. pressure in drainย spaceย [MPa] |
0.05 |
||
| Weightย [kg] | 9 | 9.5 | |
BK2-1 BK2-2 Hydraulic Motor Brake System It is widely used in various types of heavy machinery, including cranes, construction, material handling, agriculture, mining and forestry. It can also be used for winches and hydrostatic drive systems.
