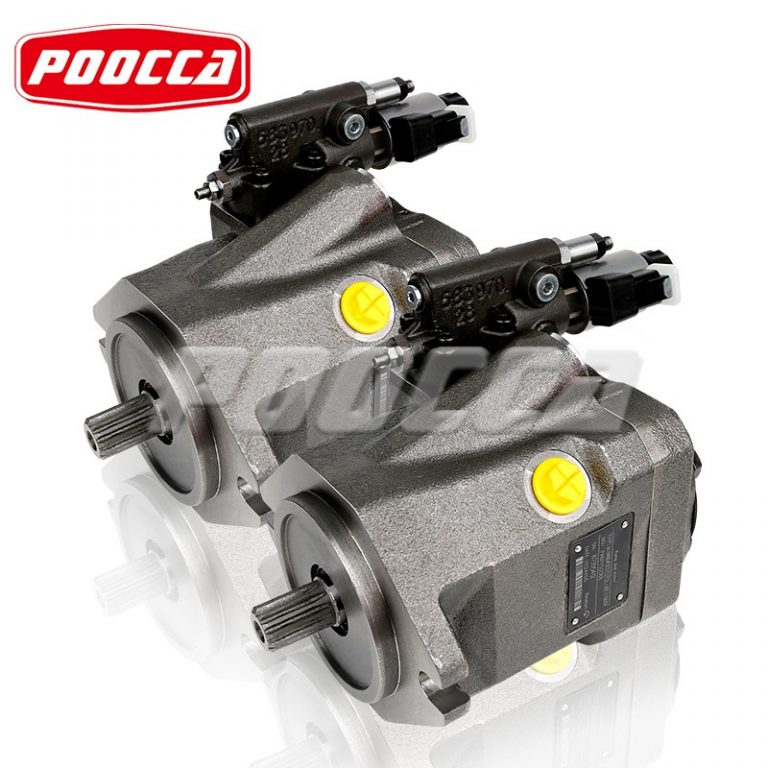

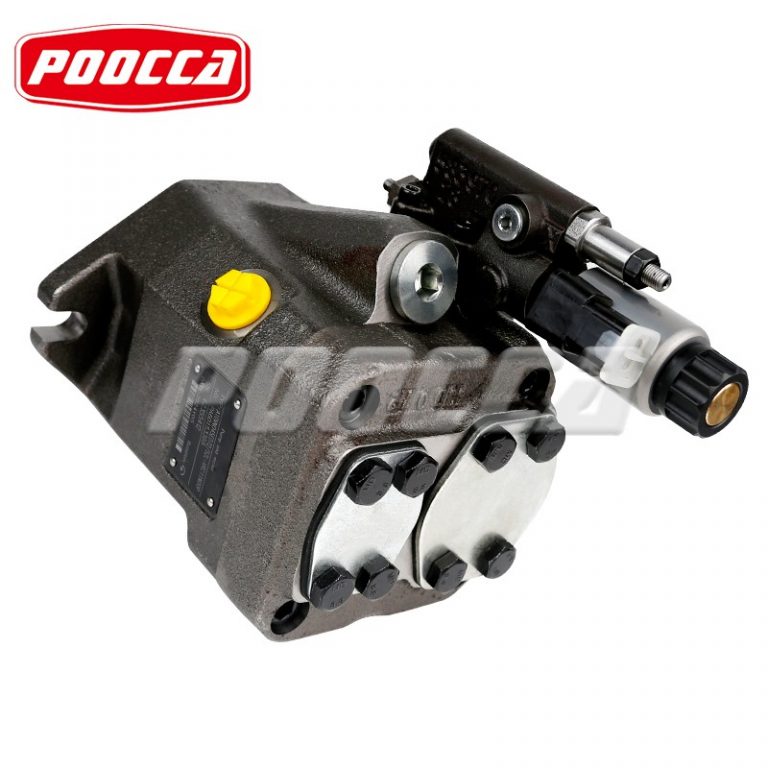

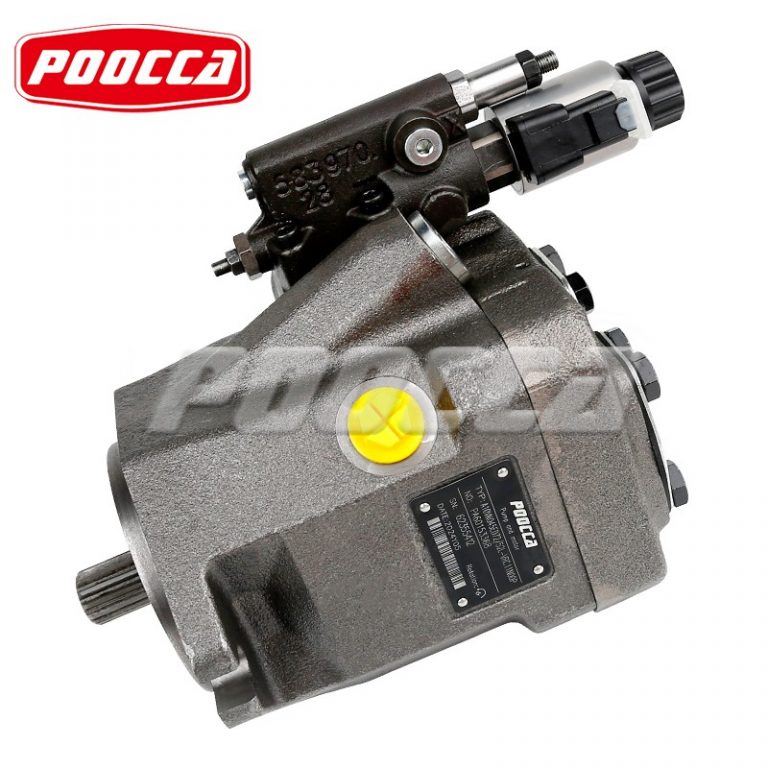

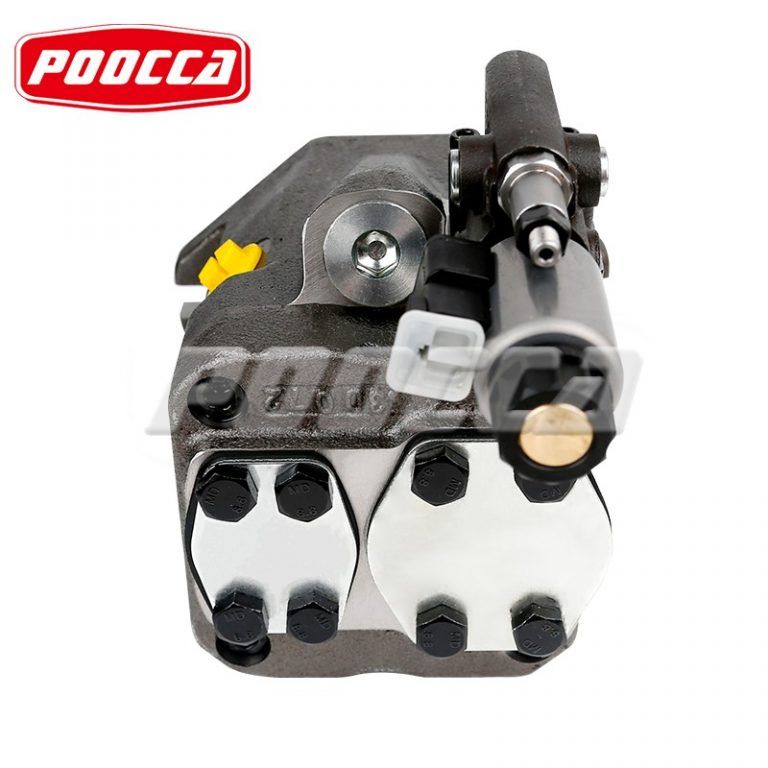

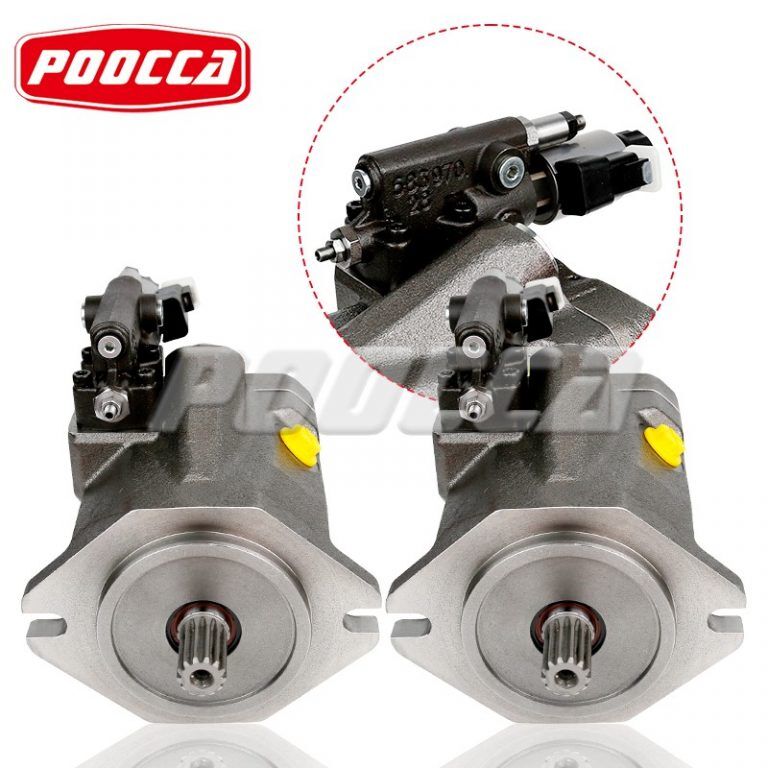

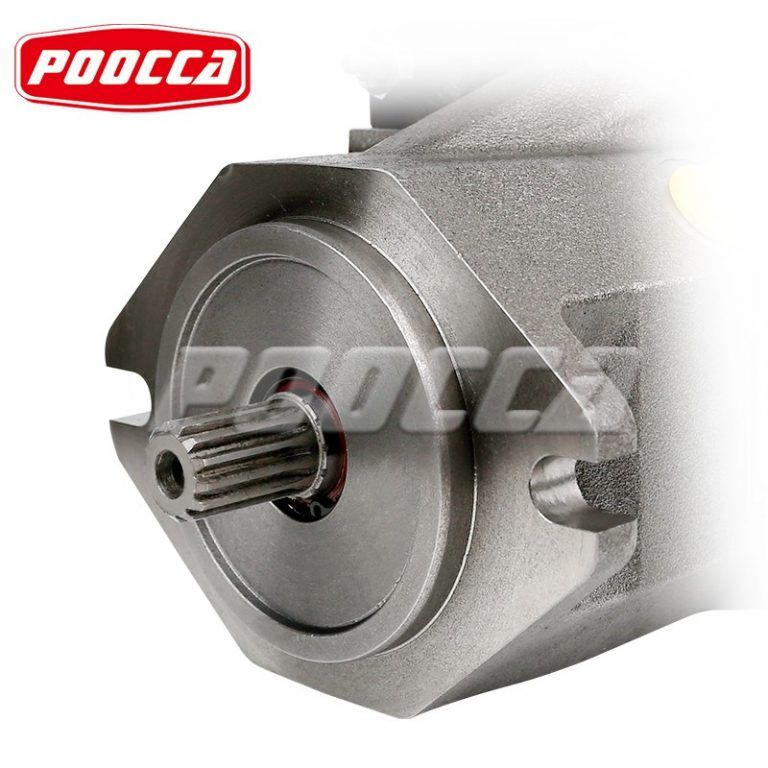

Rexroth A10VNO Axial Piston Pump A10VNO28/45/63/85

Series 52/53
Size 28…85 （A10VNO 28,A10VNO 45,A10VNO 63,A10VNO 85）
Nominal pressure 210 bar
Peak pressure 250 bar
Open circuit

Poocca hydraulic manufacturer’s regular products are in stock, shipped quickly, and sold at factory wholesale prices

Chat Now

Characteristic

– Rexroth A10VNO swash plate axial piston variable displacement pump for open circuit hydrostatic drives
– Flow rate is proportional to drive speed and displacement. Flow rate can be varied infinitely by adjusting the swash plate.
– High power-to-weight ratio and small dimensions
– Low noise level
– A10VNO hydraulic piston pump allows continuous pressure of 210 bar

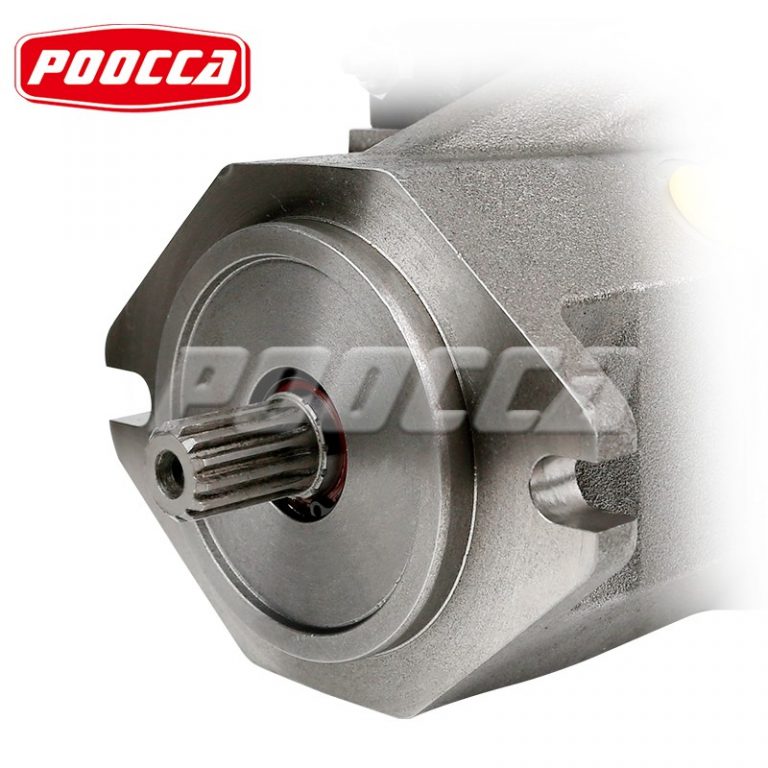

– Drive shaft can withstand axial and radial loads
– Pressure and flow control
– Short response times
– Proven A10 technology
– Variable axial A10VNO piston pump with extremely small installation dimensions
– Cost-effective alternative to fixed displacement pumps
– Cost-optimized design

Parameter

Size				A10VNO 28	A10VNO 45	A10VNO 63	A10VNO 85
Displacement		V g max	cm3	28	45	63	85
Speed2) max. at V g max		n 1) 0 max 1	min-1	3200	2900	2700	2700
Flow at n 0 max		qV0 max 11)	L/min	90	131	170	230
Power at n 0 max	Δp = 210 bar	P0 max 11)	kW	31	46	59	80
Torque at V g max	Δp = 210 bar	T max	Nm	94	150	210	284
Torsional stiffness Wellenende R		c	Nm/rad	14800	26500	40500	69400
Moment of inertia rotary group		J TW	kgm2	0,001	0,002	0,004	0,006
Angular acceleration, max.2)		a	rad/s2	6800	4900	3500	2500
Case volume		V	L	0,25	0,3	0,5	0,8
Weight (with press. control)		m	kg	11,5	14	18	22

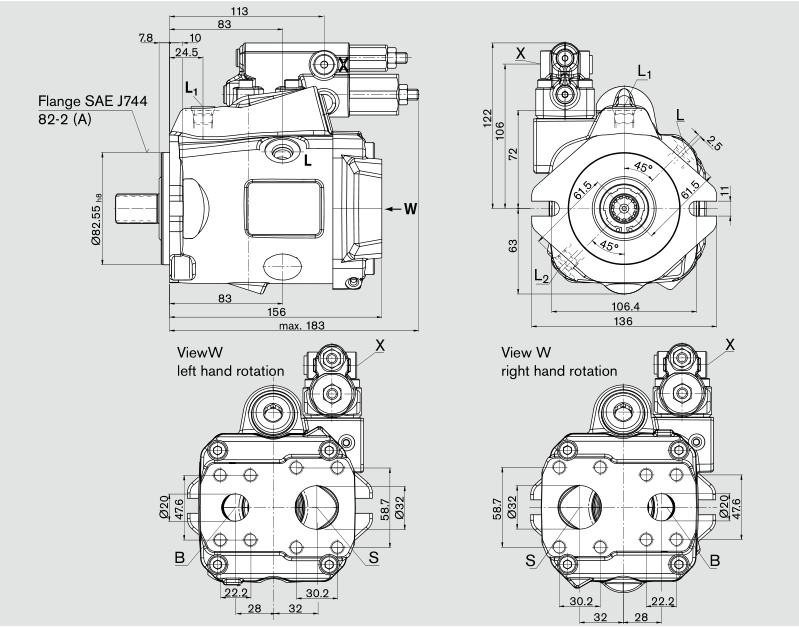

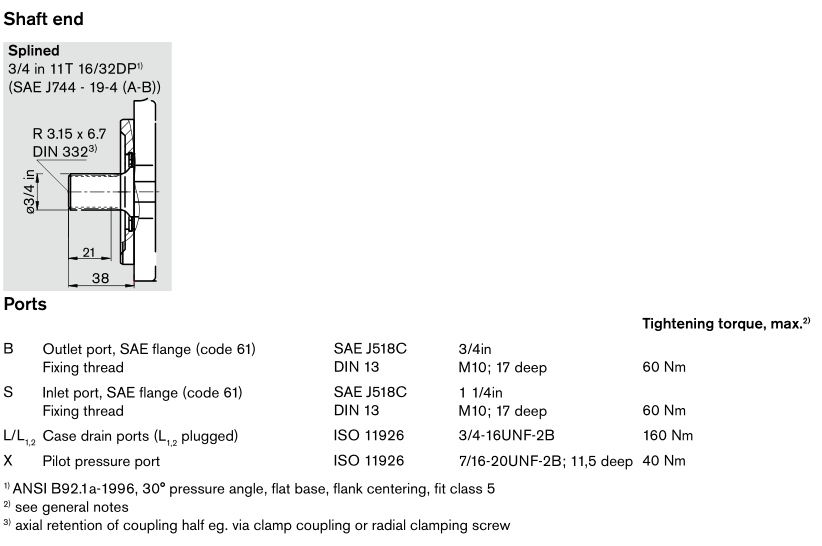

Dimension

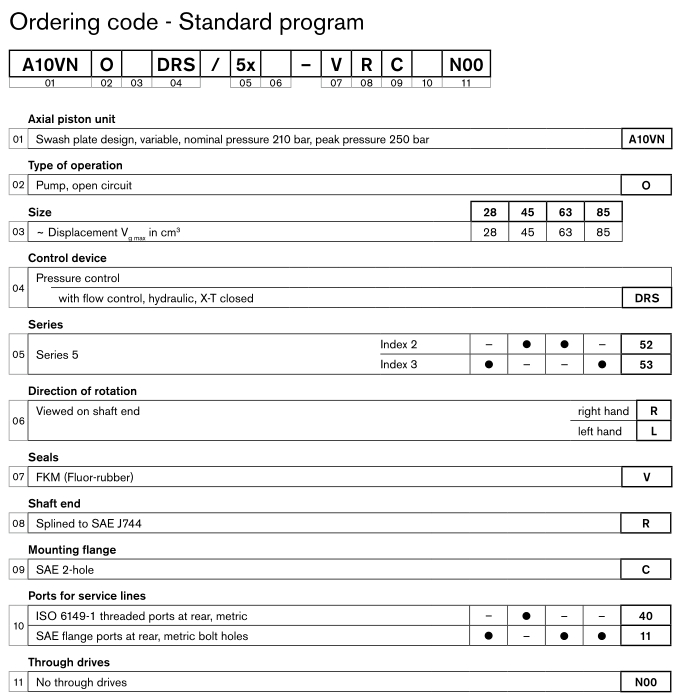

Order Code

Type	ldent-Nr.	Type	ldent-Nr.
A10VNO28DRS/53R-VRC11N00	2467798	A10VNO63DRS/52R-VRC11N00	2436458
A10VNO28DRS/53L-VRC11N00	2467800	A10VNO63DRS/52L-VRC11N00	2436459
A10VNO45DRS/52R-VRC40N00	2468248	A10VNO85DRS/53R-VRC11N00	2468201
A10VNO45DRS/52L-VRC40N00	2452518	A10VNO85DRS/53L-RC11N00	2468202

If you don’t find the A10VNO hydraulic piston pump model you want here, please contact us.
