HPD Gear Pump Construction: External Gear Pump and Motor
Mounting: SAE Flange
Maximum Drain Line Pressure for Reversible Motors: 73 psi (5 bar)
Maximum Back Pressure for Series Motors: 2175 psi (150 bar)
Viscosity Range: Recommended 60 to 456 SSU [12 to 100 mm³/s (cSt)]
Permitted up to 3410 SSU [750 mm³/s (cSt)]

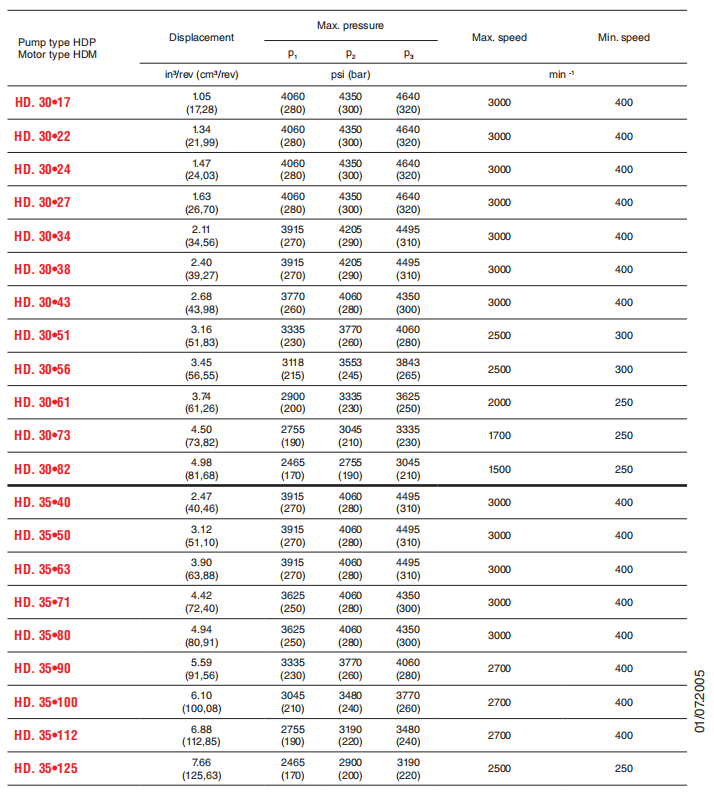

Casappa HDP30 gear pump displacement: from 1.05 in/rev (1728 cc/rev) to 7.66 in/rev (125.63 cc/rev)
Pressure: Maximum continuous pressure 4060 psi (280 bar) Maximum intermittent pressure 4350 psi (300 bar) Maximum peak pressure 4640 psi (320 bar)
HDP30 gear pump maximum speed: 3000 mir1.
Casappa HDP gear pump adopts SAE version design, provides a variety of drive shaft and mounting flange options, supports more port position configurations, integrates external bearings, and is suitable for various heavy-duty applications. At the same time.
Casappa HDP gear pump also provides a variety of unit versions, including standard type, common air inlet type and graded type, with ultra-long service life and high reliability, suitable for various industrial hydraulic systems.
Casappa HDP30 gear pump displacement: from 1.05 in/rev (1728 cc/rev) to 7.66 in/rev (125.63 cc/rev)
Pressure: Maximum continuous pressure 4060 psi (280 bar) Maximum intermittent pressure 4350 psi (300 bar) Maximum peak pressure 4640 psi (320 bar)
HDP30 gear pump maximum speed: 3000 mir1.
Casappa HDP gear pump adopts SAE version design, provides a variety of drive shaft and mounting flange options, supports more port position configurations, integrates external bearings, and is suitable for various heavy-duty applications. At the same time.
Casappa HDP gear pump also provides a variety of unit versions, including standard type, common air inlet type and graded type, with ultra-long service life and high reliability, suitable for various industrial hydraulic systems.
