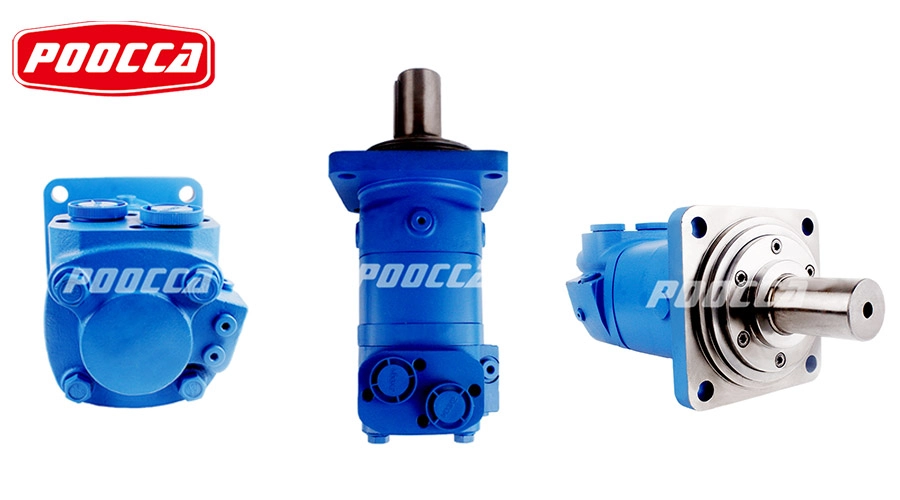

Hydraulic orbital motors are essential components in many types of machinery, especially those used in agriculture, construction, and landscaping. These motors are favored for their ability to deliver high torque at low speeds while maintaining a compact and rugged design. However, like any mechanical system, they can experience performance issues over time. Understanding the fundamentals of hydraulic orbital motors and knowing how to diagnose and fix common problems is crucial for ensuring consistent performance and extending equipment lifespan.
Hydraulic Orbital Motor Basics
Hydraulic motors generate rotation from a flow of incompressible oil. These motors come in various forms, but the orbital design is strongly preferred for applications needing high torque at low speed from a compact package.
Hydraulic orbital motors use a gerotor design. This is where a gear with large lobes rather than teeth, (the ‘rotor’), sits inside an outer stator gear. The rotor has one less teeth than the stator and can roll around its surface. As it rolls, contact between lobes and stator teeth divides the open volume within the stator into two parts.
Fluid is pumped under pressure into one of these parts, which pushes the rotor towards the lower pressure side. A manifold on the input side moves the fluid input around as the rotor rotates. This generates rotary motion, which is sent out via a shaft connected to the inside of the rotor.
Common Problems
Hydraulic orbital motors are generally reliable when properly sized and maintained. However, certain issues can still occur.
Output speed variation
Output speed variation, along with low power, (which may mean low torque, low speed, or a combination of the two), signifies fluid flow problems or wear between rotor and stator. Wear lets fluid past the teeth, from high to low pressure regions, which reduces the torque generated.
Low power
Low power output often stems from internal leakage or improper fluid delivery. When internal components wear down or seals degrade, efficiency drops significantly.
Oil leaks
Oil leaks occur as ‘O’ rings in the assembly fail. This is a natural result of aging, with the rubber gradually taking a compression set. High loads, impact loads and running hot can all contribute to accelerated ‘O’ ring wear.
Fixing Common Hydraulic Orbital Motor Problems
Addressing issues early through regular maintenance checks can prevent costly repairs or downtime.
Speed and Torque Problems
Speed and torque problems will usually be reported by equipment operators. When this happens:
- Check fluid delivery – are the flow rate and pressure where they should be?
- If not, look for blocked filters or a low fluid level
- Using fluid of the wrong viscosity can cause problems such as cavitation inside the motor
- If fluid flow is correct, there may be leakage from high to low pressure regions inside the stator. This could signify worn bearings or worn rotor and stator teeth. In either case, a rebuild is required.
Oil Leaks
Oil leaks will be visible on the exterior of the motor housing. These could be due to:
- Loose hydraulic hose couplings – a result of vibration or thermal cycling – tighten as needed
- Failed ‘O’ rings – remove motor from service – disassemble and replace
Durable Motors for High Torque at Low Speed
Problems with hydraulic orbital motors are uncommon, provided the motor was sized correctly for the application and receives periodic maintenance. However, when they do occur, it may be that the motor is not to blame.
Except in the case of oil leaks, start troubleshooting by looking at the system supplying the hydraulic fluid. Problems here will result in the motor not running as expected.
Unfortunately, as with all mechanical devices, the internal components of these motors will wear, and eventually rebuilding or replacement will be needed.
However, when used within normal operating parameters it should take many years to reach this point.
POOCCA Custom Hydraulic Motors: Engineered to Fit Your Specific Requirements
POOCCA Hydraulic (Shenzhen) Co., Ltd. was established in 2006 and has four companies in Hong Kong, Guangdong, Jiangsu and Zhejiang. We are a comprehensive hydraulic service company specializing in the research and development, manufacturing, maintenance and sales of hydraulic pumps, motors, valves and related parts.
With extensive experience in providing power transmission and drive solutions to hydraulic system users around the world, we have a strong reputation in the industry.
POOCCA offers customized hydraulic solutions tailored specifically to client needs across industries such as construction equipment manufacturing and material handling.
We have invested in advanced manufacturing equipment including flexible machining centers and CNC gear grinders that allow us to produce highly durable hydraulic components capable of handling high loads under demanding conditions.

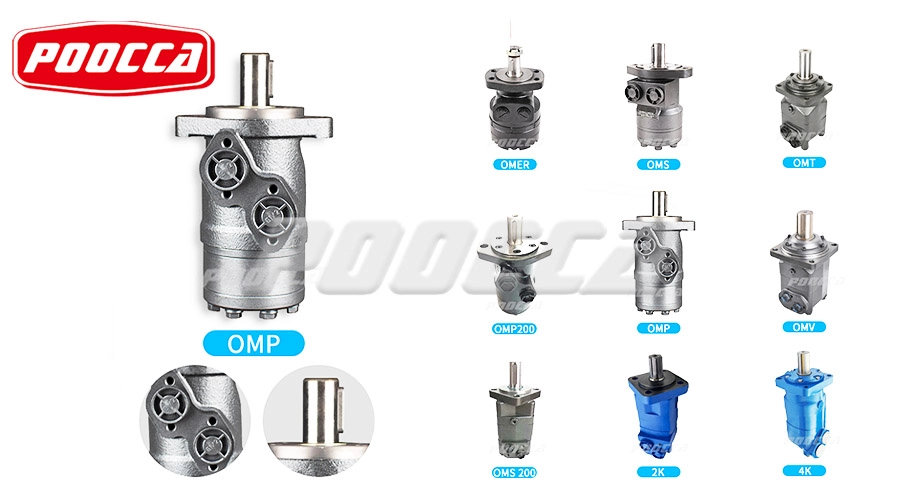

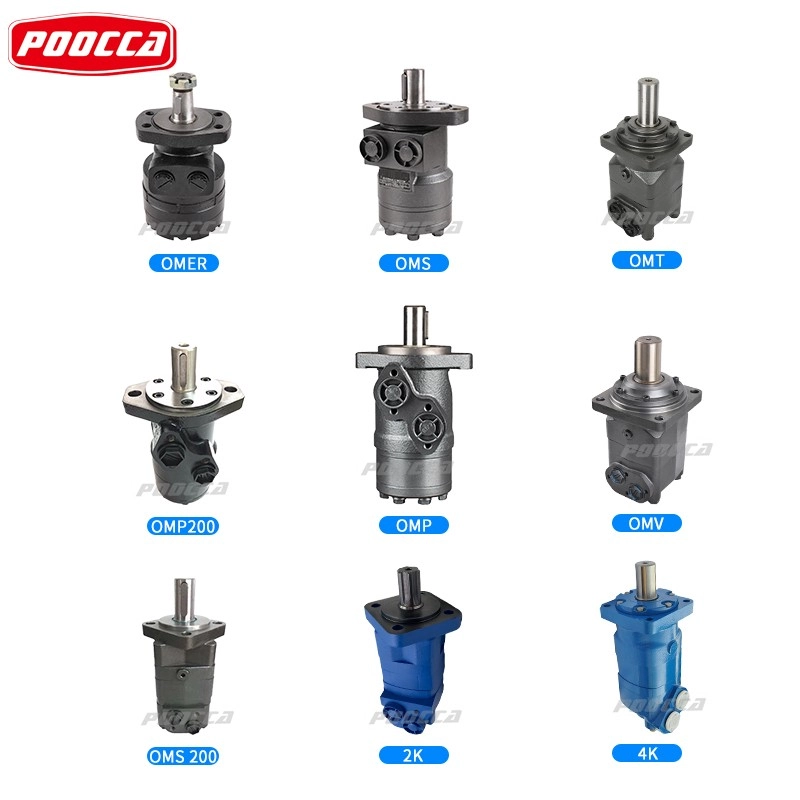

Our product range includes gear pumps like Ronzio Z3 Series Gear Pump known for its high volumetric efficiency (95%) and quiet operation; Parker TG Series Powertrain offering over 13,000 pound-inches of torque; Eaton Vickers 6000 Series Hydraulic Motor delivering up to 1685 Nm continuous torque — all optimized for performance consistency even under fluctuating load conditions.
FAQ
How long has your company been established?
POOCCA hydraulic manufacturer was established in 2006 and has 26 years of experience in the hydraulic industry.
What types of products do you offer?
We have up to 1,600 product categories mainly engaged in gear pumps, piston pumps, vane pumps, motors, hydraulic accessories, hydraulic valves etc.
What is your lead time for orders?
Regular products take 5–7 days; special products depend on customization time and quantity.
Do you offer international shipping?
Yes—we offer expedited international shipping options for your convenience. Please contact our sales team to discuss your specific requirements.
What kind of warranty do you provide?
12 months
Can I get technical support after purchase?
Yes—we provide online installation instructions along with maintenance guidance and technical support resources for our products
Do you provide custom solutions for bulk orders?
Yes—we offer volume discounts and can provide customized solutions based on your requirements
By understanding how hydraulic orbital motors function—and recognizing signs like output speed variation or oil leakage—users can ensure optimal performance through timely maintenance or expert assistance from providers like POOCCA Hydraulics.
