SCY hydraulic pump is an axial piston pump, and the bearing adopts hydrostatic film lubrication, which has the characteristics of small size, light weight, high efficiency, long life, simple structure and convenient maintenance. The rated displacement of SCY hydraulic pump can reach (10, 25, 63, 160, 250) ml/rand, the rated pressure can reach 315Bar, the maximum pressure can reach 400Bar, and the operating speed can reach (1000, 1500) rpm/min.
| Model | Ratedย Pressure
(Bar) |
Nominal
displacement (ml/r) |
Rated flow
(L/min) |
Power-output
(KW) |
||
| 1000rpm | 1500rpm | 1000rpm | ||||
| 2.5 |
SCY14-1B |
315 | 2.5 | 2.5 | 3.75 | 1.43 |
| 10 | 315 | 10 | 10 | 15 | 5.7 | |
| 25 | 315 | 25 | 25 | 37.5 | 14.1 | |
| 40 | 315 | 40 | 40 | 60 | 22.6 | |
| 63 | 315 | 63 | 63 | 94.5 | 35.6 | |
| 80 | 315 | 80 | 80 | 120 | 46.6 | |
| 160 | 315 | 160 | 160 | 240 | 92.2 | |
| 250 | 315 | 250 | 250 | 375 | 133.2 | |
| 400 | 315 | 400 | 400 | 600 | 199.5 | |

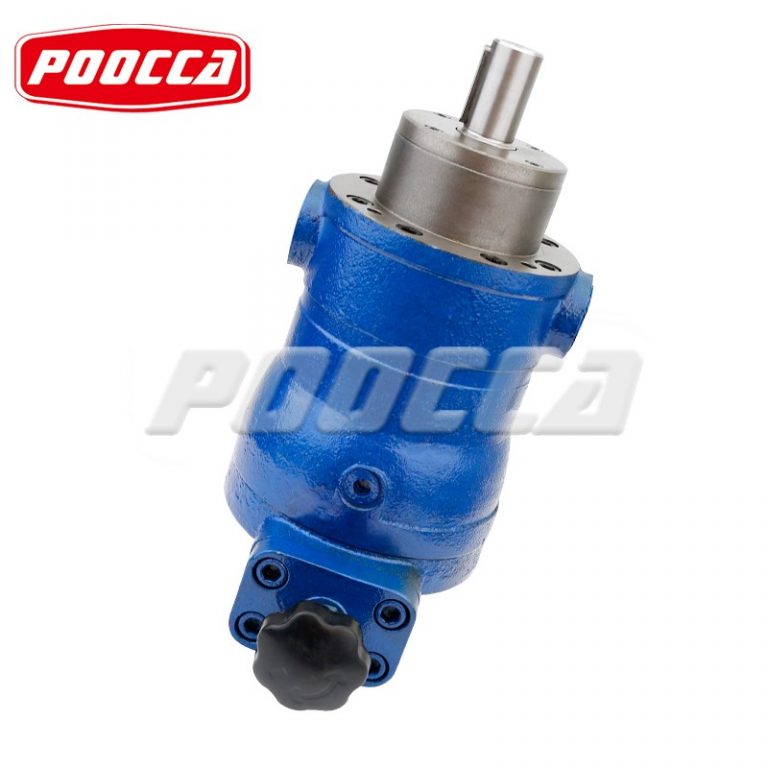

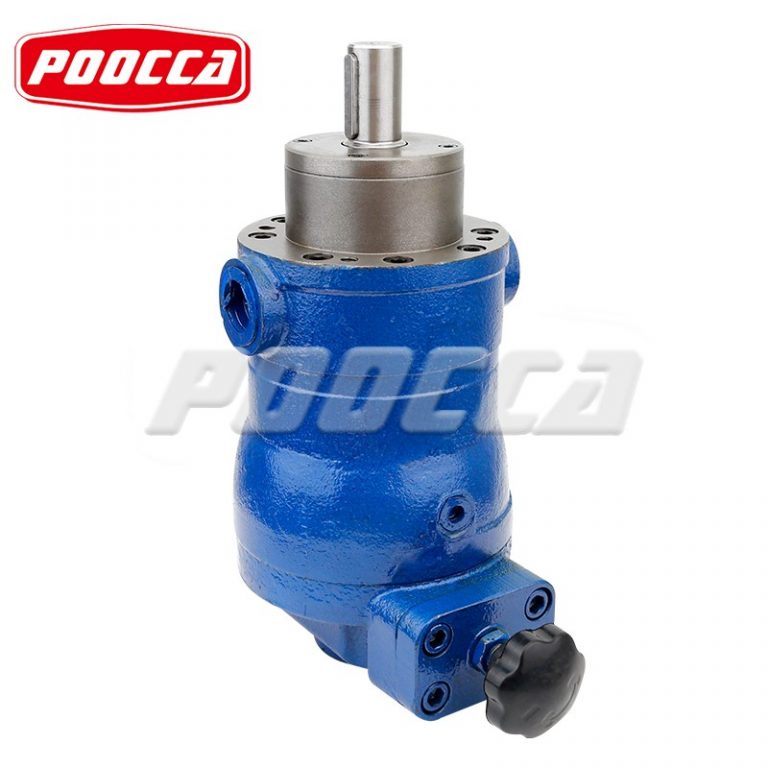

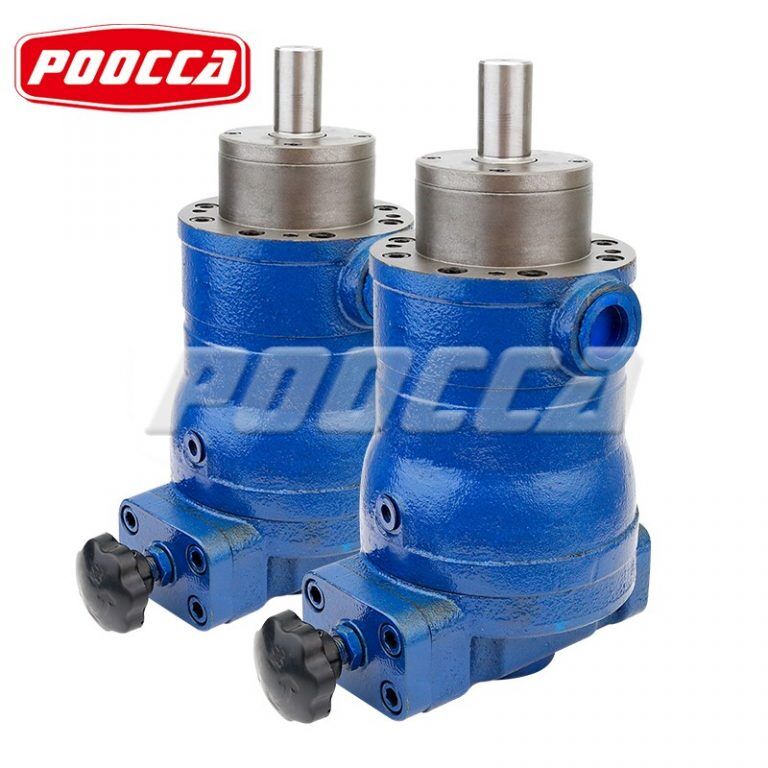

The SCY14-1B Series Axial Piston Pumps are specifically designed to deliver pressurized fluids up to 315Bar (approximately 4,570 psi) to power hydraulic presses and drive systems. These units perform dual function and can also be used as hydraulic motors when required – a key specification that should be clearly stated at the time of purchase.
SCY piston pumps are available in a variety of adjustable displacement control configurations to provide operational flexibility for a wide range of industrial applications. Their proven performance has led to widespread adoption in key sectors including, but not limited to:
Heavy machinery (crane, transport, marine equipment)
Resource extraction (mining and metallurgical operations)
Industrial manufacturing (construction machinery, forming/forging systems)
Precision engineering (machine tool hydraulics)
This versatile design continues to support modern hydraulic systems that demand reliable power transmission and operational adaptability.
SCY hydraulic pump is an axial piston pump, and the bearing adopts hydrostatic film lubrication, which has the characteristics of small size, light weight, high efficiency, long life, simple structure and convenient maintenance. The rated displacement of SCY hydraulic pump can reach (10, 25, 63, 160, 250) ml/rand, the rated pressure can reach 315Bar, the maximum pressure can reach 400Bar, and the operating speed can reach (1000, 1500) rpm/min.
| Model | Ratedย Pressure
(Bar) |
Nominal
displacement (ml/r) |
Rated flow
(L/min) |
Power-output
(KW) |
||
| 1000rpm | 1500rpm | 1000rpm | ||||
| 2.5 |
SCY14-1B |
315 | 2.5 | 2.5 | 3.75 | 1.43 |
| 10 | 315 | 10 | 10 | 15 | 5.7 | |
| 25 | 315 | 25 | 25 | 37.5 | 14.1 | |
| 40 | 315 | 40 | 40 | 60 | 22.6 | |
| 63 | 315 | 63 | 63 | 94.5 | 35.6 | |
| 80 | 315 | 80 | 80 | 120 | 46.6 | |
| 160 | 315 | 160 | 160 | 240 | 92.2 | |
| 250 | 315 | 250 | 250 | 375 | 133.2 | |
| 400 | 315 | 400 | 400 | 600 | 199.5 | |
The SCY14-1B Series Axial Piston Pumps are specifically designed to deliver pressurized fluids up to 315Bar (approximately 4,570 psi) to power hydraulic presses and drive systems. These units perform dual function and can also be used as hydraulic motors when required – a key specification that should be clearly stated at the time of purchase.
SCY piston pumps are available in a variety of adjustable displacement control configurations to provide operational flexibility for a wide range of industrial applications. Their proven performance has led to widespread adoption in key sectors including, but not limited to:
Heavy machinery (crane, transport, marine equipment)
Resource extraction (mining and metallurgical operations)
Industrial manufacturing (construction machinery, forming/forging systems)
Precision engineering (machine tool hydraulics)
This versatile design continues to support modern hydraulic systems that demand reliable power transmission and operational adaptability.
POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
