Industrial Hydraulic Vane Pumps T6CC: Performance, Applications, and Selection

Introduction to Industrial Hydraulic Vane Pumps T6CC

Industrial hydraulic vane pumps stay as one of the most reliable choices for fair to high-pressure hydraulic systems over many years. Among these, the Industrial Hydraulic Vane Pumps T6CC (part of the Parker Denison T6 series) keep setting the mark for dependability, output, and adaptability in fixed factory gear and some moving uses.

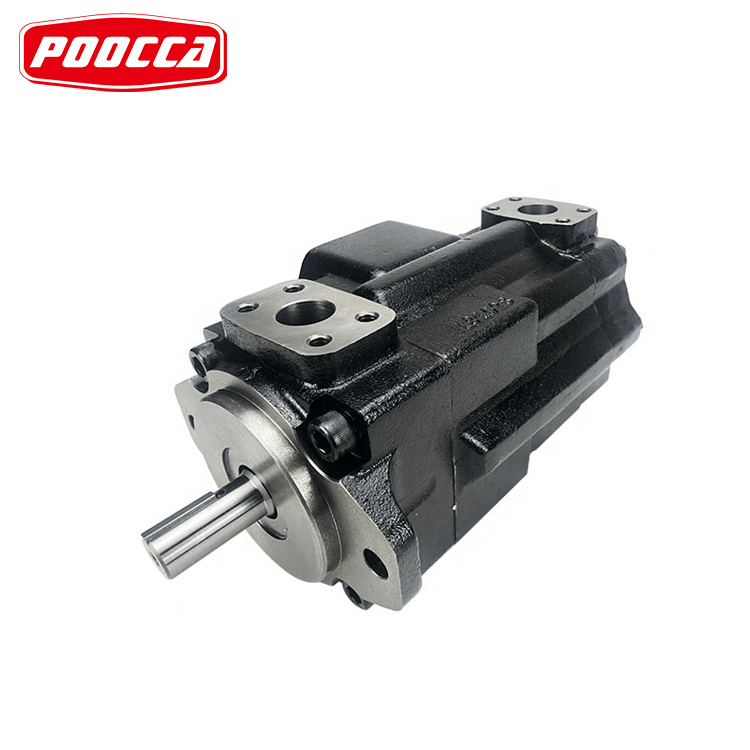

The T6CC model fits in the twin-vane pump group. It has two separate pumping parts (P1 and P2 sections) in one small case. This setup gives two distinct hydraulic paths or joined flow from a single piece. As a result, it cuts space needs and setup trouble compared to two separate single pumps.

Core Advantages of Industrial Hydraulic Vane Pumps T6CC

Exceptional High-Pressure Capability

The Industrial Hydraulic Vane Pumps T6CC are built for steady work pressures up to 275 bar (≈4000 PSI) in various setups. Short peaks go even higher based on fluid kind and work states. This strong pressure work lets system builders:

• Use smaller hydraulic cylinders and actuators
• Select compact control valves
• Reduce pipe and hose diameters
• Lower overall installation and material costs

When systems run under top rated pressure, work life grows a lot. Often, it lasts several times longer.

Outstanding Volumetric Efficiency

Usual volume output of the Industrial Hydraulic Vane Pumps T6CC hits 94% or higher. This holds true even under full load. Main gains cover:

• Higher system productivity
• Significantly reduced heat generation
• Lower energy consumption
• Reduced cooling requirements
• Stable performance at very low rotational speeds (down to 600 rpm in industrial versions and 400 rpm in vehicle-adapted models)

Low Noise and Smooth Operation

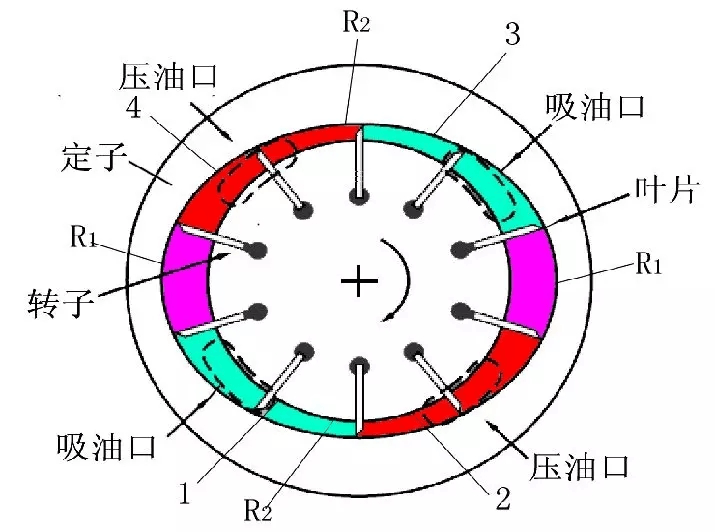

The even vane setup almost wipes out side bearing pushes. Paired with low pressure waves (±2 bar usual), the Industrial Hydraulic Vane Pumps T6CC make quite low sound levels and small shakes. These prove key wins in sound-rule factory spots, exact machines, and driver-comfort moving gear.

Technical Specifications Overview of Industrial Hydraulic Vane Pumps T6CC

The T6CC series gives a wide set of cartridge mixes. Common push ranges per part sit around:

• Small section (P1): 10.8 – 50 ml/rev
• Large section (P2): 47 – 100 ml/rev

Top steady speed often hits 2200–2800 rpm. This depends on size and fluid thickness. The lowest steady speed under full pressure stands at 600 rpm.

Pressure marks change by fluid group (HF-0 mineral oil, HF-1–HF-5 fire-safe fluids):

• Continuous pressure: 210–275 bar
• Intermittent peak pressure: up to 300–320 bar in optimized conditions

Entry states need total pressure drop ≤ 0.2 bar to stop cavitation. Most models take mineral oils, water-glycol fluids, phosphate esters, and picked fake fluids. This works when right seals get picked.

Mounting, Shaft, and Porting Flexibility of Industrial Hydraulic Vane Pumps T6CC

Standardized Mounting Interfaces

The Industrial Hydraulic Vane Pumps T6CC stick to:

• SAE J744c 2-bolt flange (SAE B standard)
• ISO 3019-1 2-bolt flange

Several shaft choices exist:

• Straight keyed shafts
• SAE B and BB splined shafts
• Special non-standard shafts

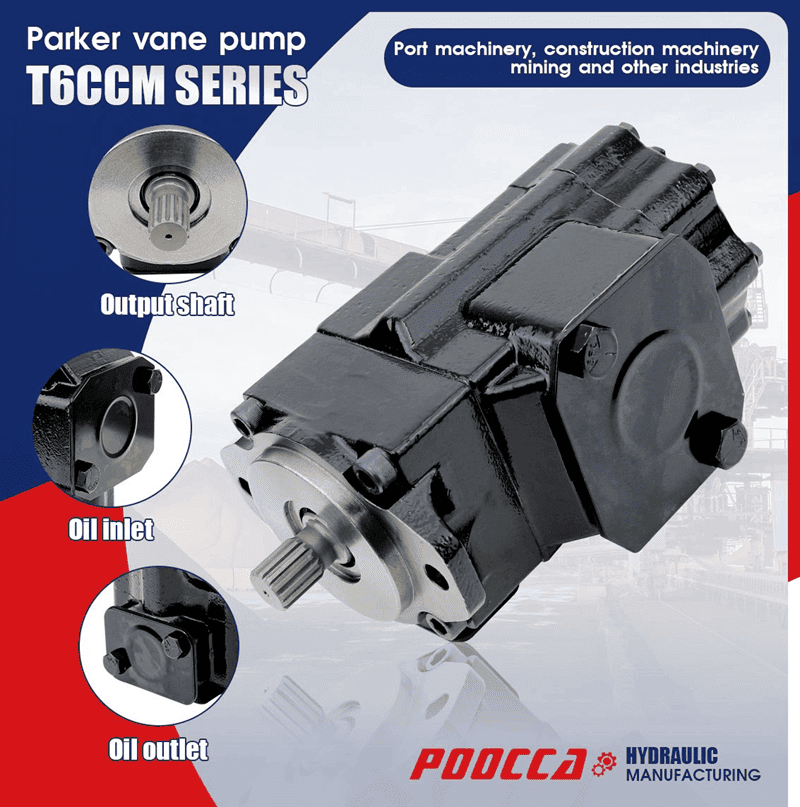

For moving/vehicle jobs, T-profile drive shafts (SAE J718c fit) allow straight link to tractor PTO at 540–1000 rpm.

Dual Shaft Seal Option

Car/vehicle types often show the T*P setup with twin shaft seals and a set drain port. This lets straight fix to gear boxes. At the same time, it stops oil mix between hydraulic and send systems.

Port Configurations

Usual ports follow SAE rules:

• Suction ports: 2.5″ or 3″
• Pressure ports: 1″ or 1¼”

Back and side port choices add more setup ease.

Typical Industrial and Mobile Applications of T6CC Vane Pumps

The Industrial Hydraulic Vane Pumps T6CC see wide use in:

• Plastic injection molding machines
• Die-casting equipment
• Hydraulic presses (metal forming, rubber, composites)
• Machine tools (lathes, milling machines, grinding centers)
• Material handling systems (forklifts, automated storage systems)
• Industrial robotics and automation lines
• Agricultural machinery (tractors, harvesters – with vehicle shaft option)
• Construction equipment auxiliary hydraulic circuits
• Marine and offshore hydraulic power units

The mix of strong pressure, good output, low sound, and dirt handle makes these pumps fit well for round-the-clock steady jobs.

Maintenance and Service Life Optimization

The part setup of the Industrial Hydraulic Vane Pumps T6CC lets full swap of pumping pieces (cam ring, rotor, vanes, side plates). This occurs without taking the pump body off the system. Thus, it cuts stop time in upkeep.

Main long-life parts include:

• Maintaining fluid cleanliness (ISO 18/16/13 or better recommended)
• Using high-quality filtration (10–15 μm absolute)
• Regular monitoring of inlet vacuum/pressure
• Correct fluid viscosity at operating temperature
• Avoiding prolonged dry running or cavitation conditions

With right care, many T6CC units reach work lives of 10,000–20,000 hours or more in factory use.

Why Choose Factory-Direct T6CC Vane Pumps Today?

The hydraulic field has many places for T6/T7 series vane pumps. These go from first gear to after-sale and rebuilt units. New making lets high-grade match goods give work close to original marked pumps. In some cases, they match exactly. Yet, prices stay much lower.

POOCCA works as both a manufacturer and supplier. It makes its own marked vane pumps. It also gives straight matches to Parker Denison T6 and T7 series. This includes the Industrial Hydraulic Vane Pumps T6CC — with full tech fit, quick stock hold, and world send know to over 120 countries.

Frequently Asked Questions (FAQ) about Industrial Hydraulic Vane Pumps T6CC

What is the maximum continuous pressure for T6CC vane pumps?

Most setups back 250–275 bar steady pressure with mineral oil (HF-0/HF-2). This depends on part size and speed.

Can T6CC pumps run at very low speeds without losing performance?

Yes — full pressure skill stays down to 600 rpm in factory models and even 400 rpm in vehicle-fit types.

Are T6CC pumps suitable for fire-resistant fluids?

Yes, when fit with right seals they run steady with HF-3, HF-4, and HF-5 fluids. Yet, pressure and speed limits often drop below mineral oil levels.

What mounting standard does the T6CC use?

SAE B 2-bolt flange (J744c) and ISO 3019-1 2-bolt patterns are standard.

Can one T6CC pump supply two independent circuits?

Yes — the twin-part setup lets two separate flows and pressures from one shaft input.

Connect with POOCCA: a Professional Manufacturer & Supplier

System integrators, distributors, and hydraulic equipment builders seeking steady Industrial Hydraulic Vane Pumps T6CC at fair factory-direct prices get asked to team with a skilled manufacturer and supplier.

POOCCA gives in-stock hold, quick world ship, full tech aid, and custom fixes for the whole T6/T7 series including T6CC models.

Contact the team today for quotations, datasheets, 2D/3D drawings, or sample orders: Email: sales@kamchau.com Phone / WhatsApp: +86 189 2749 8997

Boost work and cost of the next hydraulic project — reach out now.
