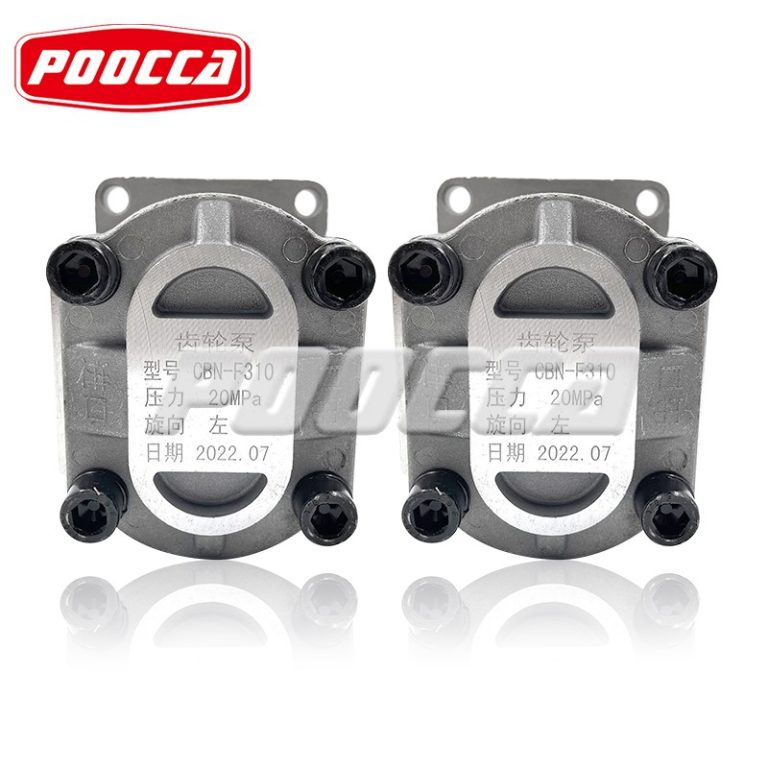

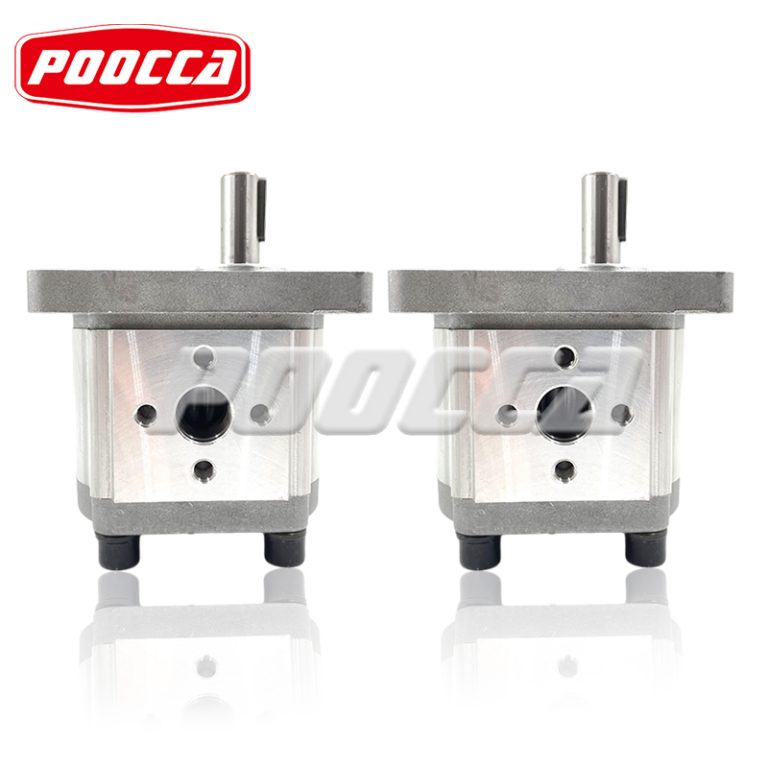

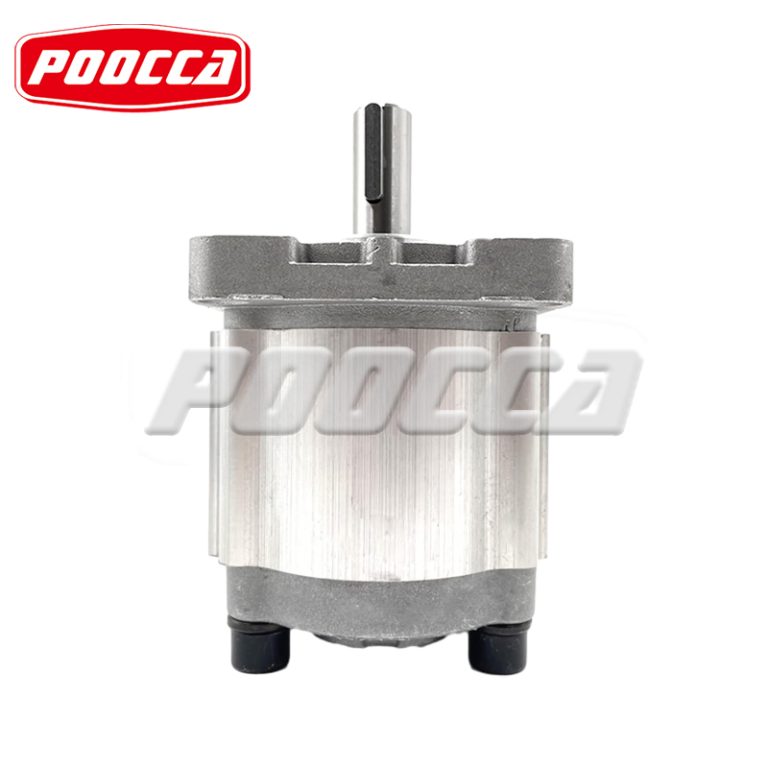

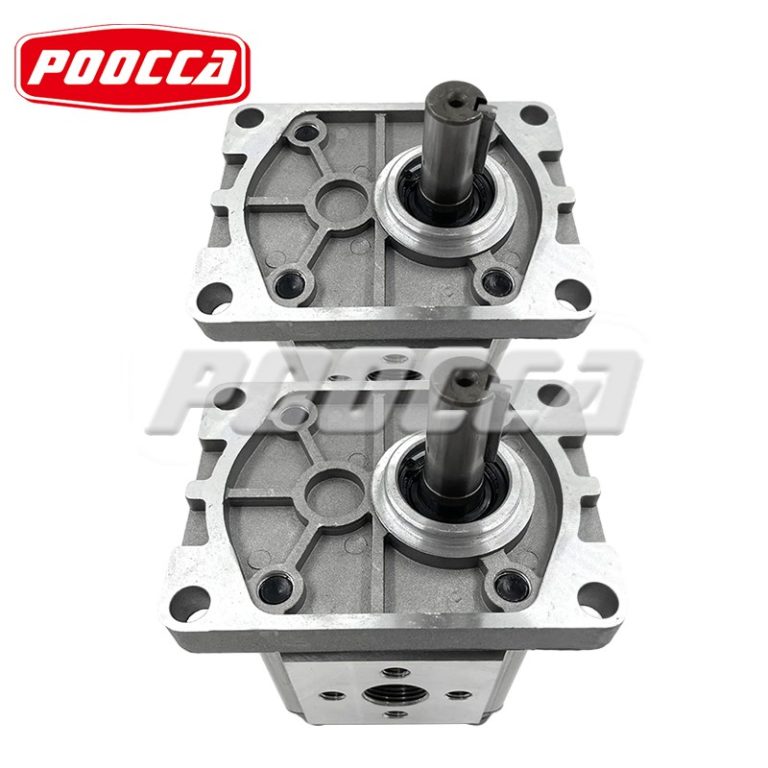

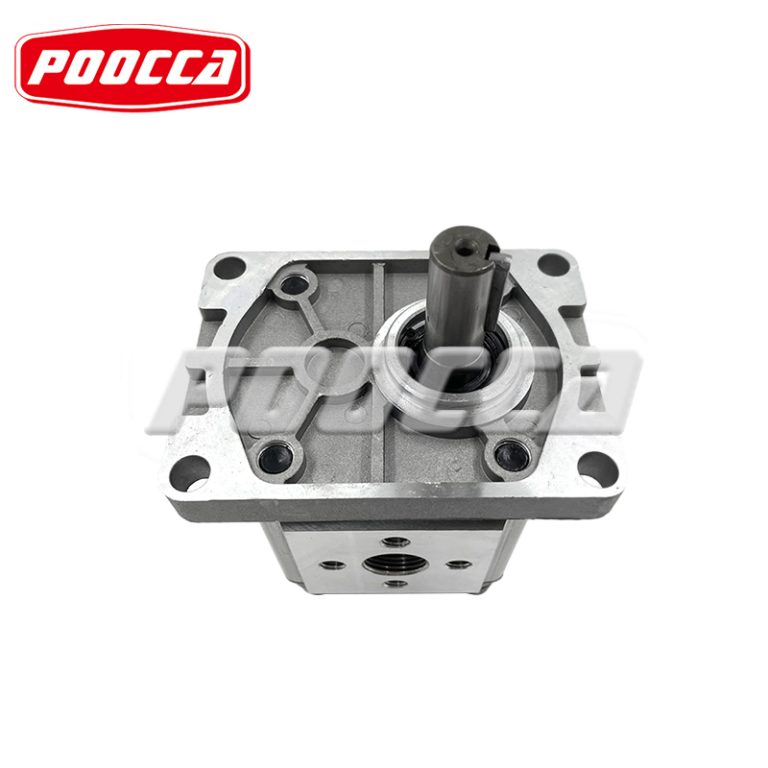

The CBN-3 series gear pumps are available in displacements of 06/08/10/12/14/16/20/25 mm. They are constructed of a single-piece aluminum alloy die-cast structure and utilize a floating sleeve for axial pressure compensation.
They feature lightweight, high-pressure resistance, reliable performance, and a long service life.
|
Model |
Theo.disp (mL/r) |
R ated pressure
(Mpa) |
min |
（KW) Input power |
||
| E | F | Rated | Min | |||
| CBN-E306 | 6 |
16 |
20 |
2000 |
1100 | 3.95 |
| CBN-E308 | 8 |
900 |
5.27 | |||
| CBN-E310 | 10 | 6.58 | ||||
| CBN-E312 | 12 | 7.9 | ||||
| CBN-E314 | 14 | 9.22 | ||||
| CBN-E316 | 16 | 10.53 | ||||
| CBN-E320 | 20 | 13.17 | ||||
| CBN-E325 | 25 | 16.46 | ||||
| Working oil
(mm²/s) |
Working oil temp
(℃) |
Filtrating accuracy (μm) |
Volumetric efficiency(%) |
|||
| Hydraulic oil | -20-80 | ≤25 | ≥90 | |||
The CBN-3 series gear pumps are available in displacements of 06/08/10/12/14/16/20/25 mm. They are constructed of a single-piece aluminum alloy die-cast structure and utilize a floating sleeve for axial pressure compensation.
They feature lightweight, high-pressure resistance, reliable performance, and a long service life.
|
Model |
Theo.disp (mL/r) |
R ated pressure
(Mpa) |
min |
（KW) Input power |
||
| E | F | Rated | Min | |||
| CBN-E306 | 6 |
16 |
20 |
2000 |
1100 | 3.95 |
| CBN-E308 | 8 |
900 |
5.27 | |||
| CBN-E310 | 10 | 6.58 | ||||
| CBN-E312 | 12 | 7.9 | ||||
| CBN-E314 | 14 | 9.22 | ||||
| CBN-E316 | 16 | 10.53 | ||||
| CBN-E320 | 20 | 13.17 | ||||
| CBN-E325 | 25 | 16.46 | ||||
| Working oil
(mm²/s) |
Working oil temp
(℃) |
Filtrating accuracy (μm) |
Volumetric efficiency(%) |
|||
| Hydraulic oil | -20-80 | ≤25 | ≥90 | |||
