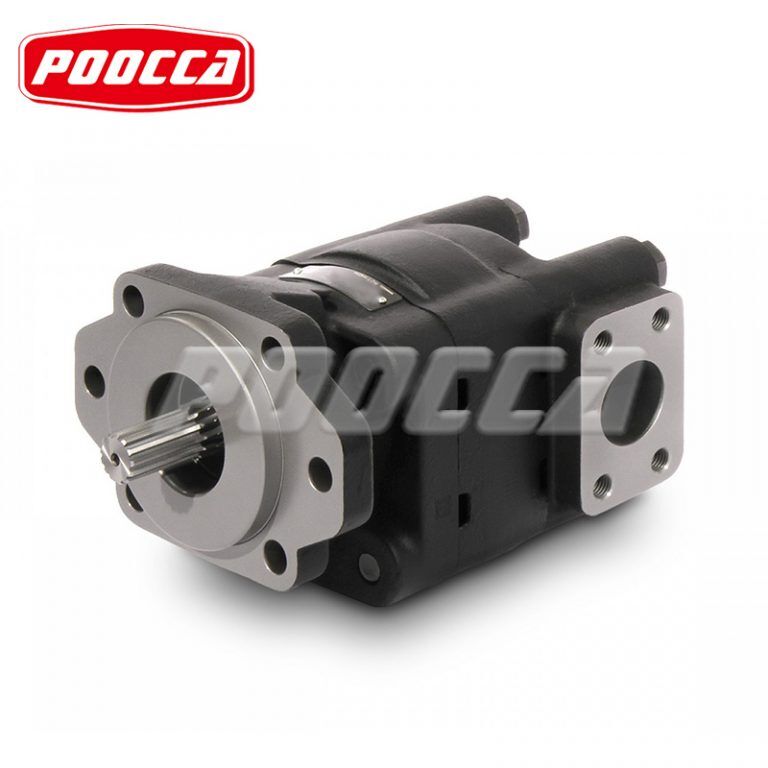

Casappa HDP30 HDP35 Cast Iron Gear Pump SAE Ports

Kontaktieren Sie uns

Casappa HDP30 HDP35 Cast Iron Gear Pump SAE Ports

HPD Gear Pump Construction: External Gear Pump and Motor
Mounting: SAE Flange
Maximum Drain Line Pressure for Reversible Motors: 73 psi (5 bar)
Maximum Back Pressure for Series Motors: 2175 psi (150 bar)
Viscosity Range: Recommended 60 to 456 SSU [12 to 100 mm³/s (cSt)]
Permitted up to 3410 SSU [750 mm³/s (cSt)]

Chatten Sie jetzt

Merkmal

Casappa HDP30 gear pump displacement: from 1.05 in/rev (1728 cc/rev) to 7.66 in/rev (125.63 cc/rev)
Pressure: Maximum continuous pressure 4060 psi (280 bar) Maximum intermittent pressure 4350 psi (300 bar) Maximum peak pressure 4640 psi (320 bar)
HDP30 gear pump maximum speed: 3000 mir1.

Casappa HDP gear pump adopts SAE version design, provides a variety of drive shaft and mounting flange options, supports more port position configurations, integrates external bearings, and is suitable for various heavy-duty applications. At the same time.
Casappa HDP gear pump also provides a variety of unit versions, including standard type, common air inlet type and graded type, with ultra-long service life and high reliability, suitable for various industrial hydraulic systems.

Casappa HDP30 Gear Pump Parameter

HDP30 Gear Pump Dimension

Bestellcode

Casappa HDP30 HDP35 Cast Iron Gear Pump SAE Ports

HPD Gear Pump Construction: External Gear Pump and Motor Mounting: SAE Flange Maximum Drain Line Pressure for Reversible Motors: 73 psi (5 bar) Maximum Back Pressure for Series Motors: 2175 psi (150 bar) Viscosity Range: Recommended 60 to 456 SSU [12 to 100 mm³/s (cSt)] Permitted up to 3410 SSU [750 mm³/s (cSt)]
