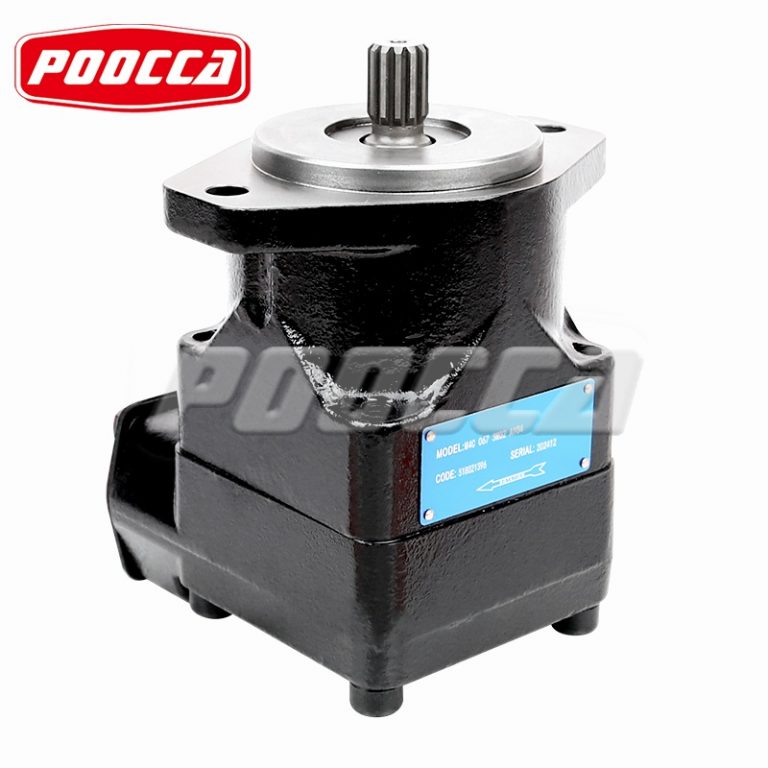

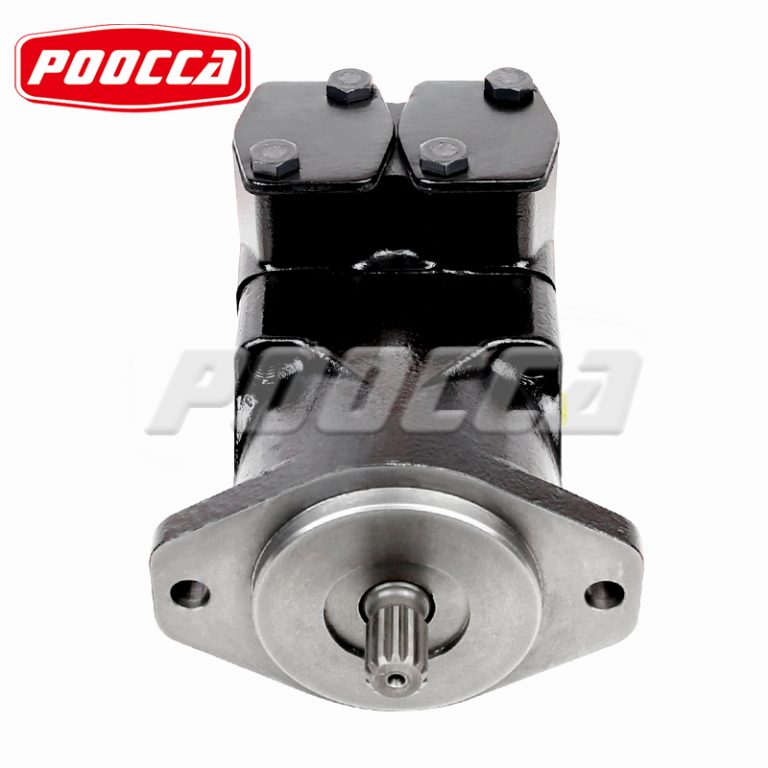

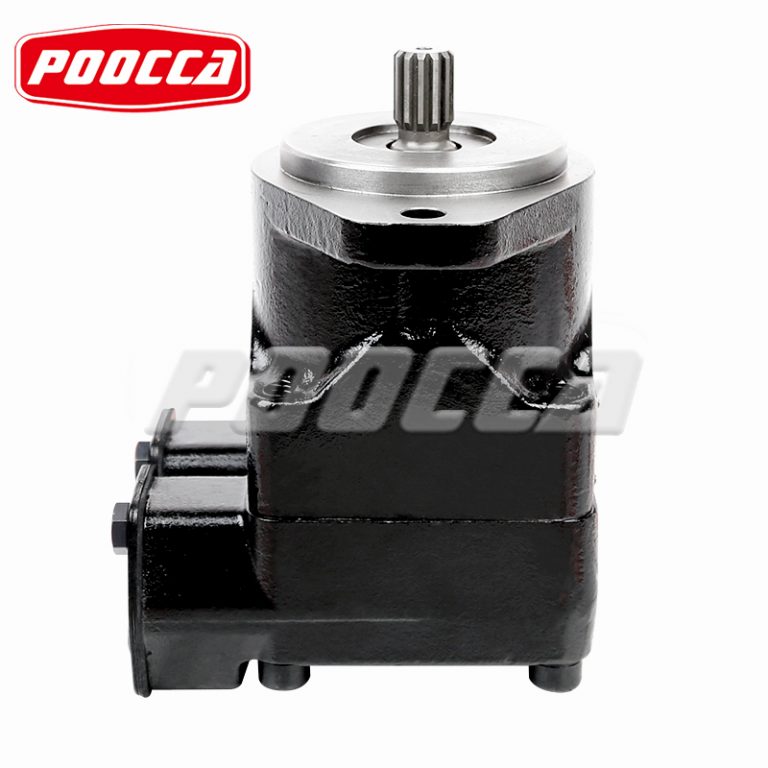

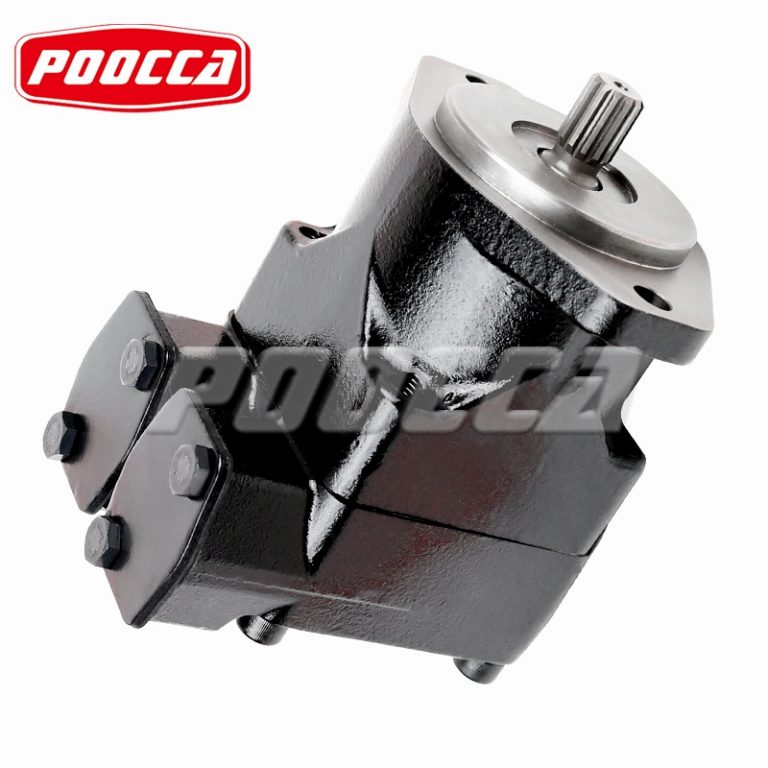

M3B M4C M4D M4E hydraulic vane motor displacement 9.2-222.0 is available for sale with a 12-month warranty. Please contact us to purchase.
Reliable performance
The M3 and M4 motors have been designed especially for severe duty applications which require long lasting medium pressure,
high speed and reversing capabilities even with low fluid lubricity. Their performances remain stable over time.
Long lifetime
The fully pressure balanced concept increase the motor lifetime over its full speed range. Double lip vanes reduce the sensitivity
to fluid pollution.
The bearing capabilities are totally dedicated to the external loads on the shaft ends, whatever the operating pressures are.
Low noise
Simply silent! The Denison Vane Technology allows a very low noise level, whatever the speed.
Low torque ripple
Thanks to their 10 vanes, advanced cam ring profile, two torque cycles per revolution and low internal dead volumes, the M3 and
M4 motors exhibit a very low torque ripple, even at low speeds.
| Series |
Size |
Ring size | Theor. Displ. Vi | Theoretical Torque T | Power at
100 rpm |
Torque T | Power P |
| n = 2000 rpm at Δ p 175 bar | |||||||
| cm/rev. | Nm/bar | kW/bar | Nm | kW | |||
|
M3 |
B |
009 | 9,2 | 0,130 | 0,0015 | 19,7 | 4,3 |
| 012 | 12,3 | 0,186 | 0,0020 | 26,7 | 5,8 | ||
| 018 | 18,5 | 0,304 | 0,0032 | 46,6 | 10,0 | ||
| 027 | 27,8 | 0,485 | 0,0050 | 77,4 | 16,3 | ||
| 036 | 37,1 | 0,624 | 0,0065 | 102,0 | 21,1 | ||
|
M4 |
C |
024 | 24,4 | 0,39 | 0,0040 | 60,5 | 12,7 |
| 027 | 28,2 | 0,45 | 0,0047 | 70,0 | 14,7 | ||
| 031 | 34,5 | 0,55 | 0,0058 | 86,8 | 18,0 | ||
| 043 | 46,5 | 0,74 | 0,0078 | 120,0 | 25,1 | ||
| 055 | 58,8 | 0,93 | 0,0098 | 149,0 | 31,2 | ||
| 067 | 71,1 | 1,13 | 0,0120 | 170,0 | 35,6 | ||
| 075 | 80,1 | 1,27 | 0,0130 | 198,0 | 41,5 | ||
|
D |
062 | 65,1 | 1,04 | 0,0110 | 165,0 | 34,6 | |
| 074 | 76,8 | 1,22 | 0,0130 | 200,0 | 41,9 | ||
| 088 | 91,1 | 1,45 | 0,0150 | 236,0 | 49,4 | ||
| 102 | 105,5 | 1,68 | 0,0180 | 264,0 | 55,3 | ||
| 113 | 116,7 | 1,86 | 0,0200 | 300,0 | 62,8 | ||
| 128 | 132,4 | 2,11 | 0,0220 | 340,0 | 71,2 | ||
| 138 | 144,4 | 2,30 | 0,0240 | 372,0 | 77,9 | ||
|
E |
153 | 158,5 | 2,52 | 0,0260 | 398,0 | 83,4 | |
| 185 | 191,6 | 3,05 | 0,0320 | 484,0 | 101,4 | ||
| 214 | 222,0 | 3,53 | 0,0370 | 567,0 | 118,8 | ||
M3 M4 hydraulic vane motors are available in a wide range of models, and the right model can be selected according to the specific application. They are suitable for industrial fields,
which require a relatively high torque with a small power source.
The low moment of inertia of the rotating components enables high acceleration and deceleration, thus quickly responding to system and control signals.
M3B M4C M4D M4E hydraulic vane motor displacement 9.2-222.0 is available for sale with a 12-month warranty. Please contact us to purchase.
Reliable performance
The M3 and M4 motors have been designed especially for severe duty applications which require long lasting medium pressure,
high speed and reversing capabilities even with low fluid lubricity. Their performances remain stable over time.
Long lifetime
The fully pressure balanced concept increase the motor lifetime over its full speed range. Double lip vanes reduce the sensitivity
to fluid pollution.
The bearing capabilities are totally dedicated to the external loads on the shaft ends, whatever the operating pressures are.
Low noise
Simply silent! The Denison Vane Technology allows a very low noise level, whatever the speed.
Low torque ripple
Thanks to their 10 vanes, advanced cam ring profile, two torque cycles per revolution and low internal dead volumes, the M3 and
M4 motors exhibit a very low torque ripple, even at low speeds.
| Series |
Size |
Ring size | Theor. Displ. Vi | Theoretical Torque T | Power at
100 rpm |
Torque T | Power P |
| n = 2000 rpm at Δ p 175 bar | |||||||
| cm/rev. | Nm/bar | kW/bar | Nm | kW | |||
|
M3 |
B |
009 | 9,2 | 0,130 | 0,0015 | 19,7 | 4,3 |
| 012 | 12,3 | 0,186 | 0,0020 | 26,7 | 5,8 | ||
| 018 | 18,5 | 0,304 | 0,0032 | 46,6 | 10,0 | ||
| 027 | 27,8 | 0,485 | 0,0050 | 77,4 | 16,3 | ||
| 036 | 37,1 | 0,624 | 0,0065 | 102,0 | 21,1 | ||
|
M4 |
C |
024 | 24,4 | 0,39 | 0,0040 | 60,5 | 12,7 |
| 027 | 28,2 | 0,45 | 0,0047 | 70,0 | 14,7 | ||
| 031 | 34,5 | 0,55 | 0,0058 | 86,8 | 18,0 | ||
| 043 | 46,5 | 0,74 | 0,0078 | 120,0 | 25,1 | ||
| 055 | 58,8 | 0,93 | 0,0098 | 149,0 | 31,2 | ||
| 067 | 71,1 | 1,13 | 0,0120 | 170,0 | 35,6 | ||
| 075 | 80,1 | 1,27 | 0,0130 | 198,0 | 41,5 | ||
|
D |
062 | 65,1 | 1,04 | 0,0110 | 165,0 | 34,6 | |
| 074 | 76,8 | 1,22 | 0,0130 | 200,0 | 41,9 | ||
| 088 | 91,1 | 1,45 | 0,0150 | 236,0 | 49,4 | ||
| 102 | 105,5 | 1,68 | 0,0180 | 264,0 | 55,3 | ||
| 113 | 116,7 | 1,86 | 0,0200 | 300,0 | 62,8 | ||
| 128 | 132,4 | 2,11 | 0,0220 | 340,0 | 71,2 | ||
| 138 | 144,4 | 2,30 | 0,0240 | 372,0 | 77,9 | ||
|
E |
153 | 158,5 | 2,52 | 0,0260 | 398,0 | 83,4 | |
| 185 | 191,6 | 3,05 | 0,0320 | 484,0 | 101,4 | ||
| 214 | 222,0 | 3,53 | 0,0370 | 567,0 | 118,8 | ||
M3 M4 hydraulic vane motors are available in a wide range of models, and the right model can be selected according to the specific application. They are suitable for industrial fields,
which require a relatively high torque with a small power source.
The low moment of inertia of the rotating components enables high acceleration and deceleration, thus quickly responding to system and control signals.
