The IAM‑2200/C H5 A0 is a heavy‑duty radial‑piston hydraulic motor from the renowned IAM+ H5 series by Intermot. Designed for high torque, robust performance, and reliable long‑term operation, this motor is ideal for demanding industrial and mobile‑hydraulic applications — including heavy machinery, construction equipment, conveyors, metallurgical equipment, and rotating drives such as injection molding machines, marine equipment, and more.
High Displacement & Strong Torque — With a displacement of 2200 cc/rev and specific torque of 35.3 Nm/bar, the motor delivers powerful and consistent torque output.
Robust & Durable Design — The motor shaft uses the standard splined shaft configuration (A0), simplifying integration and ensuring compatibility with standard couplings.
High Pressure / High Power Capability — Supports up to 300 bar continuous pressure and 350 bar intermittent pressure. Peak pressure can reach 400 bar.
Stable Operation & Long Service Life — Precision-engineered radial‑piston design, high‑quality bearings, and advanced sealing material reduce wear and enable stable, low‑noise operation — even under heavy loads and tough working conditions.
Wide Operating Conditions — Suitable for a broad temperature range from –30 °C to +70 °C and capable of operating at very low speeds (down to 0.5 rpm) when required.
Versatile Applications — Excellent for construction machinery, metallurgy equipment, marine equipment, conveyor systems, injection‑molding machinery, and any equipment requiring high torque at variable speeds.
| Parameter | Value / Range |
|---|---|
| Displacement | 2200 cc/rev |
| Specific Torque | 35.3 Nm/bar |
| Max Continuous Pressure | 300 bar |
| Max Intermittent Pressure | 350 bar |
| Peak Pressure | Up to 400 bar (depending on application) |
| Max Continuous Speed | ~220 rpm (depending on system setup) |
| Minimum Speed | 0.5 rpm (suitable for low-speed, high-torque applications) |
| Case Pressure (housing) | Max 6 bar |
| Back Pressure | Max 70 bar |
| Operating Temperature | –30 °C ~ +70 °C |
| Weight (dry) | ~100kg |
| Number of Pistons | 5 pistons (radial‑piston design) |
Heavy construction machinery (rock crushers, asphalt pavers, loaders, excavators, etc.)
Metallurgical equipment and heavy‑duty industrial machinery
Marine equipment and shipboard hydraulic systems
Conveyors, rotating tables, injection‑molding machine drives and other high‑torque rotating applications
Any hydraulic system requiring robust, high‑displacement motor with stable torque and long life
Model Code: IAM‑2200/C H5 A0 — “2200” indicates displacement; “/C” denotes the housing configuration; “H5” is the series; “A0” = standard splined shaft.

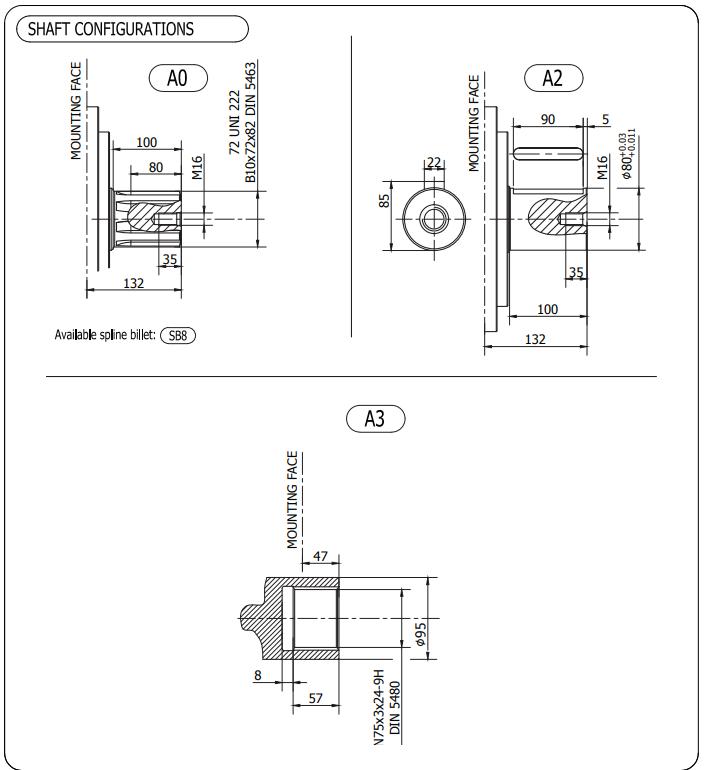

Shaft Type: Standard splined shaft — compatible with many standard couplings and mounting interfaces.
Ensure system pressure and flow specifications match or are within the limits above (pressure, speed, back‑pressure, case pressure).
Suitable for low-speed high-torque applications down to 0.5 rpm — valuable for heavy machinery and industrial drives.
A: IAM‑2200/C H5 A0 is a heavy‑duty radial‑piston hydraulic motor from the IAM+ H5 series by INTERMOT. It features a displacement of 2200 cc/rev and standard splined shaft (A0), delivering high torque and stable performance for demanding industrial and mobile‑hydraulic applications.
A: The radial‑piston design of the IAM series (including this 2200 cc version) offers several benefits:
Excellent low‑speed, high‑torque performance, suitable for heavy machinery and slow‑speed applications.
High volumetric/mechanical efficiency and reliability, thanks to robust construction: piston/bushing sealing, roller‑supported crankshaft and connecting rods — reducing leakage and improving durability.
Stable output torque and smooth operation at low speeds or under heavy load, which many gear motors and simpler hydraulic motors struggle with.
Reversible rotation and ability to withstand certain radial/axial loads at the output shaft — increasing versatility in various mechanical systems.
A: This motor is ideal for heavy-duty, high‑torque applications, such as:
Construction machinery (crushers, loaders, conveyors)
Metallurgical and mining equipment
Marine equipment and shipboard hydraulic systems
Industrial machinery with variable speed needs, heavy loads or slow‑speed‑high‑torque tasks
Any hydraulic system requiring high displacement motor with stable torque and long service life
Because Poocca deals with a wide range of hydraulic pumps and motors, having IAM‑2200/C H5 A0 in your offerings allows you to满足— and even exceed — demanding customer requirements.
A: Customers should verify the following to ensure compatibility and optimal performance:
That their system’s pressure, flow and load requirements match the motor’s rated and maximum pressure/speed specifications.
The shaft coupling and mounting dimensions — since IAM‑2200/C uses a standard splined shaft (A0), ensuring correct spline and coupling dimensions is critical.
Operating conditions: temperature range, duty cycle, load type (steady vs intermittent), and speed requirements (especially if running at low speeds or high loads).
That their hydraulic fluid and filtration meet requirements for piston‑type motors, to avoid premature wear or damage.
A: Choosing Poocca offers several advantages:
We have extensive experience in hydraulic pumps and motors, and understand integration challenges — we can provide expert advice on matching IAM‑2200/C H5 A0 with other system components.
Our product catalogue includes complementary hydraulic pumps, motors, accessories, which simplifies procurement for customers needing a full hydraulic solution.
We can offer after‑sales support, guidance on installation, maintenance recommendations, and parts compatibility — something many distributors or generic “OEM‑compatible” sellers might not provide.
For customers seeking long-term supply or repeat orders, our OEM/ODM services and broad product range give flexibility for future projects or system expansions.
A: Yes — because the IAM series from INTERMOT is designed as a robust, widely applicable radial‑piston motor, in many cases it can replace other brands’ radial‑piston motors (or equivalents) — especially in applications where low‑speed, high‑torque performance is required. Many alternative manufacturers also offer “drop‑in” radial‑piston motors for similar applications.
However, when replacing existing motors, it is essential to verify matching shaft/coupling type, mounting dimensions, pressure and flow conditions, and system compatibility.
The IAM‑2200/C H5 A0 is a heavy‑duty radial‑piston hydraulic motor from the renowned IAM+ H5 series by Intermot. Designed for high torque, robust performance, and reliable long‑term operation, this motor is ideal for demanding industrial and mobile‑hydraulic applications — including heavy machinery, construction equipment, conveyors, metallurgical equipment, and rotating drives such as injection molding machines, marine equipment, and more.
High Displacement & Strong Torque — With a displacement of 2200 cc/rev and specific torque of 35.3 Nm/bar, the motor delivers powerful and consistent torque output.
Robust & Durable Design — The motor shaft uses the standard splined shaft configuration (A0), simplifying integration and ensuring compatibility with standard couplings.
High Pressure / High Power Capability — Supports up to 300 bar continuous pressure and 350 bar intermittent pressure. Peak pressure can reach 400 bar.
Stable Operation & Long Service Life — Precision-engineered radial‑piston design, high‑quality bearings, and advanced sealing material reduce wear and enable stable, low‑noise operation — even under heavy loads and tough working conditions.
Wide Operating Conditions — Suitable for a broad temperature range from –30 °C to +70 °C and capable of operating at very low speeds (down to 0.5 rpm) when required.
Versatile Applications — Excellent for construction machinery, metallurgy equipment, marine equipment, conveyor systems, injection‑molding machinery, and any equipment requiring high torque at variable speeds.
| Parameter | Value / Range |
|---|---|
| Displacement | 2200 cc/rev |
| Specific Torque | 35.3 Nm/bar |
| Max Continuous Pressure | 300 bar |
| Max Intermittent Pressure | 350 bar |
| Peak Pressure | Up to 400 bar (depending on application) |
| Max Continuous Speed | ~220 rpm (depending on system setup) |
| Minimum Speed | 0.5 rpm (suitable for low-speed, high-torque applications) |
| Case Pressure (housing) | Max 6 bar |
| Back Pressure | Max 70 bar |
| Operating Temperature | –30 °C ~ +70 °C |
| Weight (dry) | ~100kg |
| Number of Pistons | 5 pistons (radial‑piston design) |
Heavy construction machinery (rock crushers, asphalt pavers, loaders, excavators, etc.)
Metallurgical equipment and heavy‑duty industrial machinery
Marine equipment and shipboard hydraulic systems
Conveyors, rotating tables, injection‑molding machine drives and other high‑torque rotating applications
Any hydraulic system requiring robust, high‑displacement motor with stable torque and long life
Model Code: IAM‑2200/C H5 A0 — “2200” indicates displacement; “/C” denotes the housing configuration; “H5” is the series; “A0” = standard splined shaft.
Shaft Type: Standard splined shaft — compatible with many standard couplings and mounting interfaces.
Ensure system pressure and flow specifications match or are within the limits above (pressure, speed, back‑pressure, case pressure).
Suitable for low-speed high-torque applications down to 0.5 rpm — valuable for heavy machinery and industrial drives.
A: IAM‑2200/C H5 A0 is a heavy‑duty radial‑piston hydraulic motor from the IAM+ H5 series by INTERMOT. It features a displacement of 2200 cc/rev and standard splined shaft (A0), delivering high torque and stable performance for demanding industrial and mobile‑hydraulic applications.
A: The radial‑piston design of the IAM series (including this 2200 cc version) offers several benefits:
Excellent low‑speed, high‑torque performance, suitable for heavy machinery and slow‑speed applications.
High volumetric/mechanical efficiency and reliability, thanks to robust construction: piston/bushing sealing, roller‑supported crankshaft and connecting rods — reducing leakage and improving durability.
Stable output torque and smooth operation at low speeds or under heavy load, which many gear motors and simpler hydraulic motors struggle with.
Reversible rotation and ability to withstand certain radial/axial loads at the output shaft — increasing versatility in various mechanical systems.
A: This motor is ideal for heavy-duty, high‑torque applications, such as:
Construction machinery (crushers, loaders, conveyors)
Metallurgical and mining equipment
Marine equipment and shipboard hydraulic systems
Industrial machinery with variable speed needs, heavy loads or slow‑speed‑high‑torque tasks
Any hydraulic system requiring high displacement motor with stable torque and long service life
Because Poocca deals with a wide range of hydraulic pumps and motors, having IAM‑2200/C H5 A0 in your offerings allows you to满足— and even exceed — demanding customer requirements.
A: Customers should verify the following to ensure compatibility and optimal performance:
That their system’s pressure, flow and load requirements match the motor’s rated and maximum pressure/speed specifications.
The shaft coupling and mounting dimensions — since IAM‑2200/C uses a standard splined shaft (A0), ensuring correct spline and coupling dimensions is critical.
Operating conditions: temperature range, duty cycle, load type (steady vs intermittent), and speed requirements (especially if running at low speeds or high loads).
That their hydraulic fluid and filtration meet requirements for piston‑type motors, to avoid premature wear or damage.
A: Choosing Poocca offers several advantages:
We have extensive experience in hydraulic pumps and motors, and understand integration challenges — we can provide expert advice on matching IAM‑2200/C H5 A0 with other system components.
Our product catalogue includes complementary hydraulic pumps, motors, accessories, which simplifies procurement for customers needing a full hydraulic solution.
We can offer after‑sales support, guidance on installation, maintenance recommendations, and parts compatibility — something many distributors or generic “OEM‑compatible” sellers might not provide.
For customers seeking long-term supply or repeat orders, our OEM/ODM services and broad product range give flexibility for future projects or system expansions.
A: Yes — because the IAM series from INTERMOT is designed as a robust, widely applicable radial‑piston motor, in many cases it can replace other brands’ radial‑piston motors (or equivalents) — especially in applications where low‑speed, high‑torque performance is required. Many alternative manufacturers also offer “drop‑in” radial‑piston motors for similar applications.
However, when replacing existing motors, it is essential to verify matching shaft/coupling type, mounting dimensions, pressure and flow conditions, and system compatibility.
