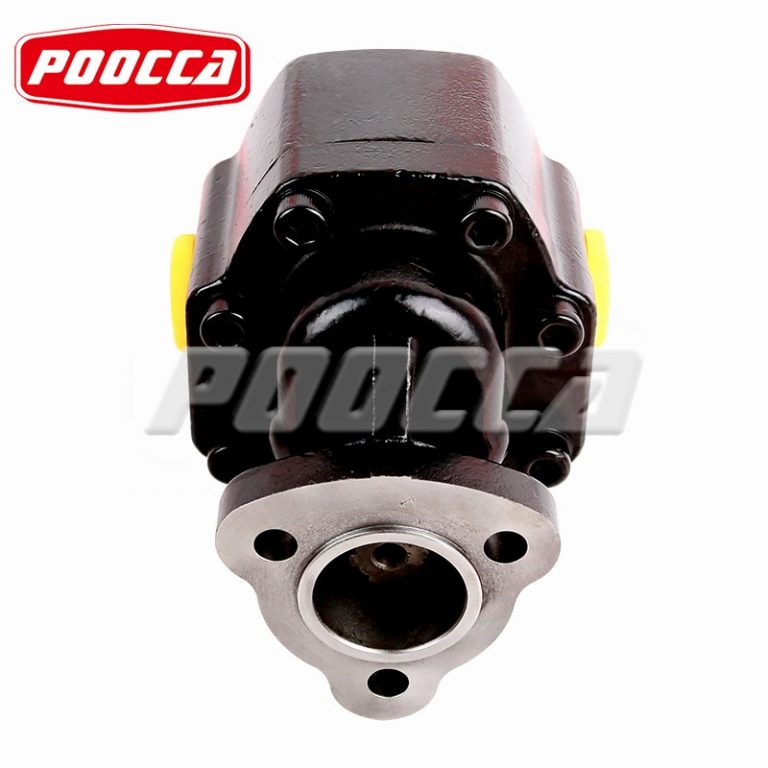

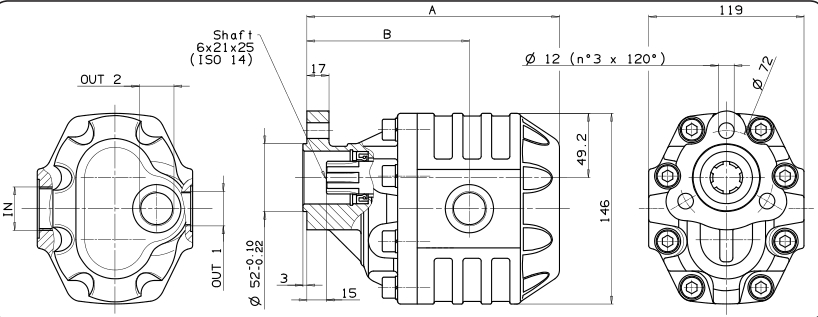

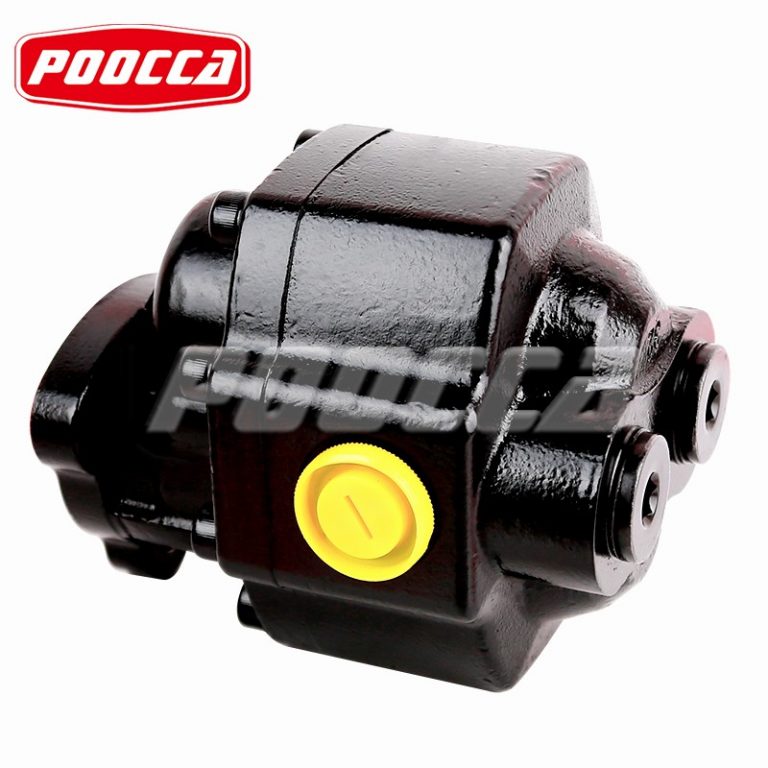

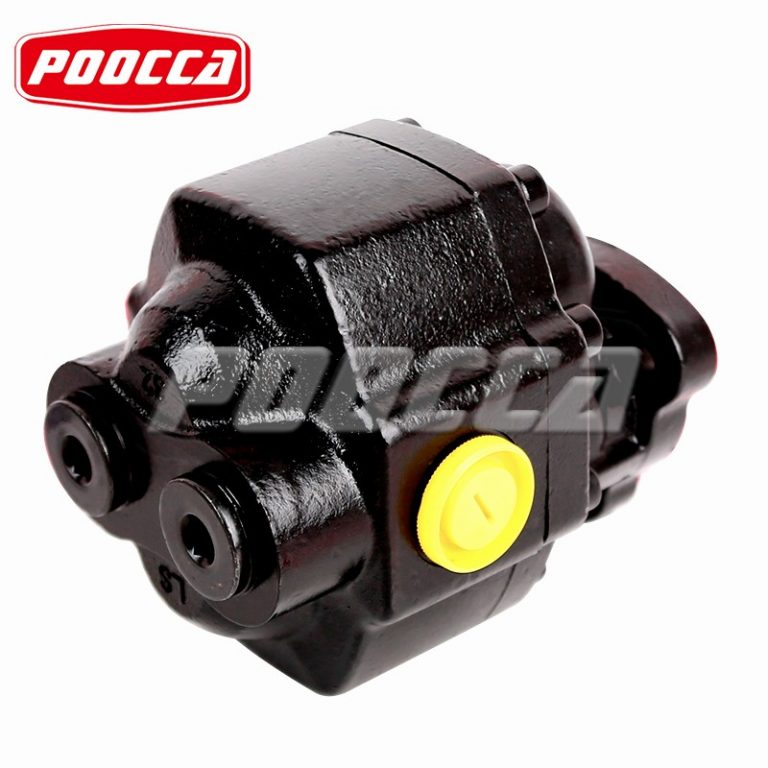

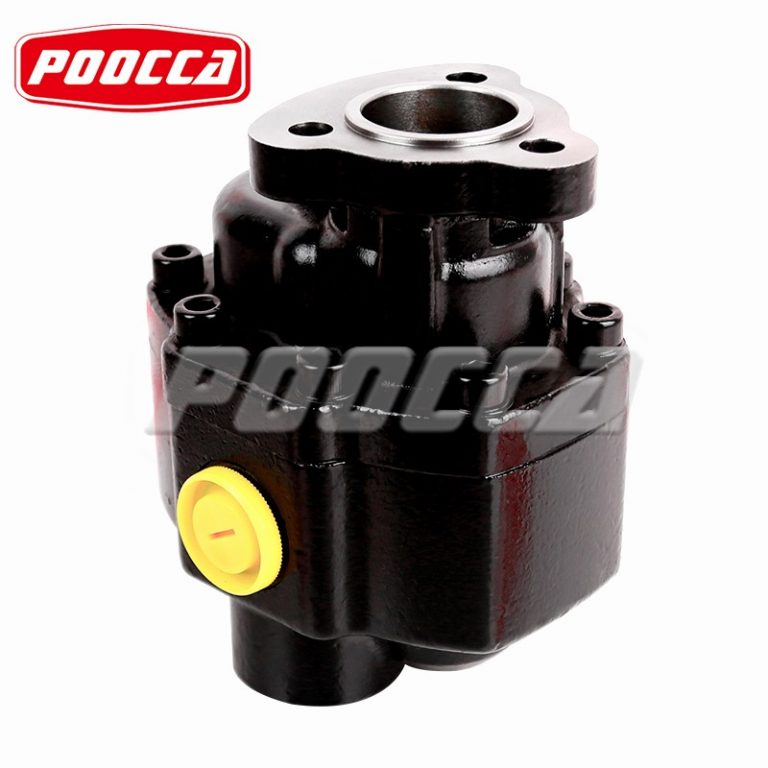

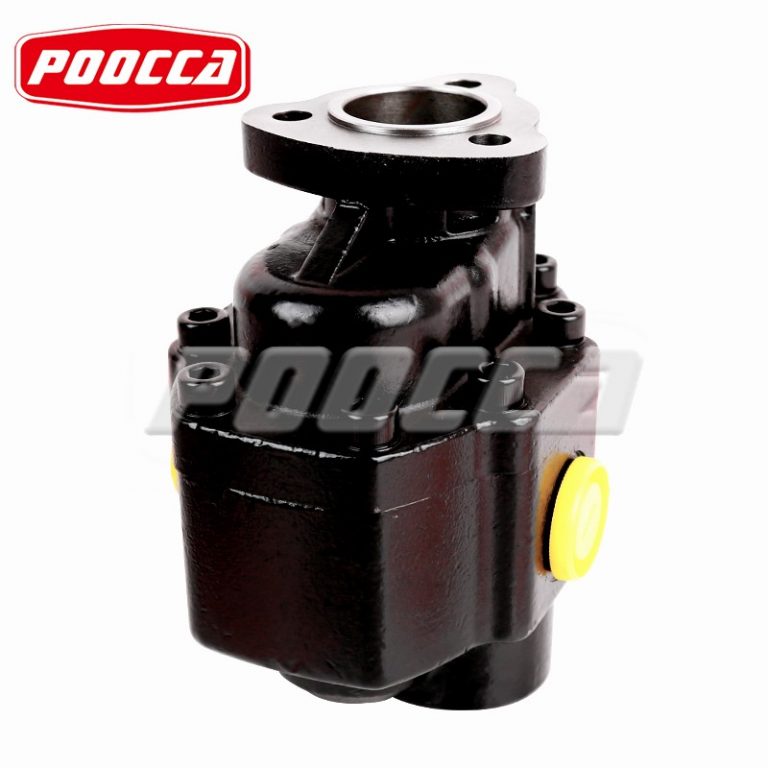

Unidirectional NPH cast iron gear pumps with displacements from 17 cc to 125 cc for medium to heavy duty applications. Available in UNI, ISO, ISO SHORT, ASAE, ALB. CIL. D. 22, SAE-B and TANDEM configurations. Optional: Bronze thrust plate. For light dump truck applications. Tandem mounting is also possible.
| TECHNICALย FEATURES | |||||||
|
Pumpย type |
Displacement
cm3/rev |
Pressure P2ย bar |
Max.ย continuous
speed
rpm |
Max.ย intermittent
speed
rpm |
Min.ย speed
rpm |
||
| NPH-17 | 17.04 |
290 |
315 |
325 |
2500 |
3000 |
300 |
| NPH-22 | 22.15 | ||||||
| NPH-27 | 26.18 | ||||||
| NPH-34 | 33.88 | 280 | 300 | 310 | 2200 | 2800 | |
| NPH-43 | 43.12 | 270 | 290 | 300 | 2000 | 2500 | |
| NPH-51 | 50.82 | 240 | 260 | 280 | |||
| NPH-61 | 60.06 | 220 | 240 | 250 | 1800 | 2000 | |
| NPH-73 | 72.88 | 200 | 220 | 230 | 1600 |
1800 |
|
| NPH-82 | 81.08 | 190 | 210 | 220 |
1500 |
||
| NPH-100 | 98.18 | 180 | 200 | 220 | |||
| NPH-125 | 122.72 | 160 | 180 | 200 | |||
Poocca Hydraulic Manufacturers can meet your equipment needs, please send us the model you need and we will provide you with detailed information and prices.
| 105-011-00175 | 105-011-00184 | 105-011-10173 | 105-011-10182 |
| 105-011-00228 | 105-011-00237 | 105-011-10226 | 105-011-10235 |
| 105-011-00273 | 105-011-00282 | 105-011-10271 | 105-011-10280 |
| 105-011-00344 | 105-011-00353 | 105-011-10342 | 105-011-10351 |
| 105-011-00433 | 105-011-00442 | 105-011-10431 | 105-011-10441 |
| 105-011-00513 | 105-011-00522 | 105-011-10511 | 105-011-10520 |
| 105-011-00611 | 105-011-00620 | 105-011-10619 | 105-011-10628 |
| 105-011-00737 | 105-011-00746 | 105-011-10735 | 105-011-10744 |
| 105-011-00826 | 105-011-00835 | 105-011-10824 | 105-011-10833 |
| 105-011-01003 | 105-011-01012 | 105-011-11001 | 105-011-11010 |
| 105-011-01254 | 105-011-01263 | 105-011-11252 | 105-011-11261 |
Poocca Hydraulic Manufacturer’s main products are gear pumps, piston pumps, vane pumps, motors, hydraulic valves, hydraulic accessories, hydraulic power units and other products. If you are looking for hydraulic products, please contact us and we will reply you as soon as possible. Here you can experience one-stop hydraulic procurement.
Unidirectional NPH cast iron gear pumps with displacements from 17 cc to 125 cc for medium to heavy duty applications. Available in UNI, ISO, ISO SHORT, ASAE, ALB. CIL. D. 22, SAE-B and TANDEM configurations. Optional: Bronze thrust plate. For light dump truck applications. Tandem mounting is also possible.
| TECHNICALย FEATURES | |||||||
|
Pumpย type |
Displacement
cm3/rev |
Pressure P2ย bar |
Max.ย continuous
speed
rpm |
Max.ย intermittent
speed
rpm |
Min.ย speed
rpm |
||
| NPH-17 | 17.04 |
290 |
315 |
325 |
2500 |
3000 |
300 |
| NPH-22 | 22.15 | ||||||
| NPH-27 | 26.18 | ||||||
| NPH-34 | 33.88 | 280 | 300 | 310 | 2200 | 2800 | |
| NPH-43 | 43.12 | 270 | 290 | 300 | 2000 | 2500 | |
| NPH-51 | 50.82 | 240 | 260 | 280 | |||
| NPH-61 | 60.06 | 220 | 240 | 250 | 1800 | 2000 | |
| NPH-73 | 72.88 | 200 | 220 | 230 | 1600 |
1800 |
|
| NPH-82 | 81.08 | 190 | 210 | 220 |
1500 |
||
| NPH-100 | 98.18 | 180 | 200 | 220 | |||
| NPH-125 | 122.72 | 160 | 180 | 200 | |||
Poocca Hydraulic Manufacturers can meet your equipment needs, please send us the model you need and we will provide you with detailed information and prices.
| 105-011-00175 | 105-011-00184 | 105-011-10173 | 105-011-10182 |
| 105-011-00228 | 105-011-00237 | 105-011-10226 | 105-011-10235 |
| 105-011-00273 | 105-011-00282 | 105-011-10271 | 105-011-10280 |
| 105-011-00344 | 105-011-00353 | 105-011-10342 | 105-011-10351 |
| 105-011-00433 | 105-011-00442 | 105-011-10431 | 105-011-10441 |
| 105-011-00513 | 105-011-00522 | 105-011-10511 | 105-011-10520 |
| 105-011-00611 | 105-011-00620 | 105-011-10619 | 105-011-10628 |
| 105-011-00737 | 105-011-00746 | 105-011-10735 | 105-011-10744 |
| 105-011-00826 | 105-011-00835 | 105-011-10824 | 105-011-10833 |
| 105-011-01003 | 105-011-01012 | 105-011-11001 | 105-011-11010 |
| 105-011-01254 | 105-011-01263 | 105-011-11252 | 105-011-11261 |
Poocca Hydraulic Manufacturer’s main products are gear pumps, piston pumps, vane pumps, motors, hydraulic valves, hydraulic accessories, hydraulic power units and other products. If you are looking for hydraulic products, please contact us and we will reply you as soon as possible. Here you can experience one-stop hydraulic procurement.
POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
